RF Elements HG3-TP-A20-30 Manual
  1. Manuals
  2. Brands
  3. RF Elements Manuals
  4. Antenna
  5. HG3-TP-A20-30
  6. Manual

RF Elements HG3-TP-A20-30 Manual

Asymmetrical horn antenna with twistport connector
Hide thumbs

Advertisement

Quick Links

Download this manual
Asymmetrical Horn
Antenna TP

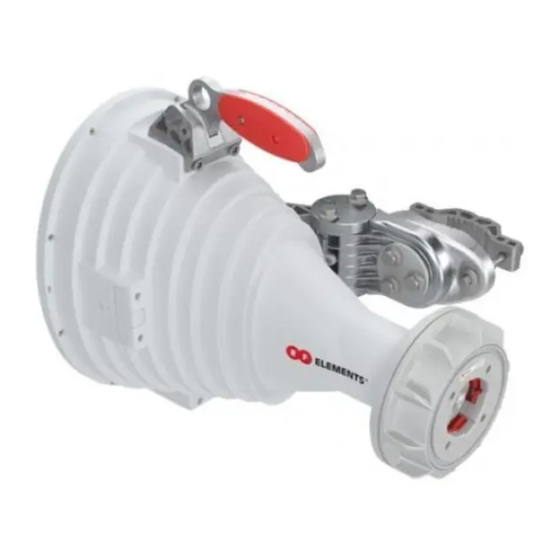

ASYMMETRICAL HORN ANTENNA WITH TWISTPORT™ CONNECTOR
HG3-TP-A20-30, HG3-TP-A60, HG3-TP-A90

Advertisement

loading
Need help?

Need help?

Do you have a question about the HG3-TP-A20-30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RF Elements HG3-TP-A20-30

Summary of Contents for RF Elements HG3-TP-A20-30

  • Page 1 Asymmetrical Horn Antenna TP ASYMMETRICAL HORN ANTENNA WITH TWISTPORT™ CONNECTOR HG3-TP-A20-30, HG3-TP-A60, HG3-TP-A90...
  • Page 2 Asymmetrical Horn TP Overview Product ID Dimensions Weight Gain 20° - 30° Horn 393x347x318 6.3 Kg 20.5 HG3-TP-A20-30 13.8 lbs HG3-TP-A20-30 60° Horn 448x342x282 6.5 Kg 17.0 HG3-TP-A60 14.3 lb HG3-TP-A60 90° Horn 416x391x302 7.2 Kg 16.0 HG3-TP-A90 15.8 lbs...
  • Page 3 Asymmetrical Horn TP Package Contents for: HG3-TP-A20-30 Antenna To continue installation see Step 14 Number Description Quantity AH-TP Body AH-TP Bracket Base AH-TP Bracket Arm AH-TP Bracket M6 x 20mm Screw M8 x 75mm Screw 2,9 x 16 mm Lock Screw AH-TP Handle www.rfelements.com...
  • Page 4 Asymmetrical Horn TP Package Contents for: HG3-TP-A60 and HG3-TP-A90 Antennas To continue installation see Step 1 Number Description Quantity AH-TP Body AH-TP Bracket Base AH-TP Bracket Arm AH-TP Bracket M6 x 20mm Screw M8 x 75mm Screw 2,9 x 16 mm Lock Screw Model HG3-TP-A60 shown.
  • Page 5 Asymmetrical Horn TP Step 1 Pre - Installation Assembly shown here is for the installation on the left side of the pole. If you need to swap to use the right side of the pole, see step 10. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown.
  • Page 6 Asymmetrical Horn TP Step 2 Pre - Installation USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 7 Asymmetrical Horn TP Step 3 Installation Guide USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 8 Asymmetrical Horn TP Step 4 Installation Guide Place the AH-TP Bracket like this for pole diameter of 22 - 49mm Place the AH-TP Bracket like this for pole diameter of 50 - 80mm Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models.
  • Page 9 Asymmetrical Horn TP Step 5 Installation Guide Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 10 Asymmetrical Horn TP Step 6 Installation Guide USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 11 Asymmetrical Horn TP Step 7 Installation Guide USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 12 Asymmetrical Horn TP Step 8 Installation Guide Optional: Install the 2.9 x 16mm locking screw. Tighten the locking screw to secure the TwisPort™ lock mechanism. TwistPort™ Adaptor or SIMPER™ Radio sold separately. Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models.
  • Page 13 Asymmetrical Horn TP Step 9 Uninstallation Guide If the locking screw was used, unscrew it by about 10 mm before unlocking the TwisPort™ mechanism. TwistPort™ Adaptor or SIMPER™ Radio sold separately. Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models.
  • Page 14 Asymmetrical Horn TP Step 10 Pre - Installation Optional: Right side of the pole mounting. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 15 Asymmetrical Horn TP Step 11 Pre - Installation Optional: Right side of the pole mounting. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 16 Asymmetrical Horn TP Step 12 Pre - Installation Optional: Right side of the pole mounting. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 17 Asymmetrical Horn TP Step 13 Pre - Installation Optional: Right side of the pole mounting. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-TP-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
  • Page 18 Asymmetrical Horn TP Step 14 Pre - Installation - This step applies only to the HG3-TP-A20-30 Antenna. 30° Azimuth and 20° Elevation setup. To continue installation see Step 1. USE ANTI-SEIZE THREAD LUBRICANT www.rfelements.com...
  • Page 19 Asymmetrical Horn TP Step 15 Pre - Installation - This step applies only to the HG3-TP-A20-30 Antenna. 20° Azimuth and 30° Elevation setup. To continue installation see Step 1. USE ANTI-SEIZE THREAD LUBRICANT www.rfelements.com...

  • Page 20: Compatible Devices

    Compatible Devices RF elements® any TwistPort™ Adaptor any SIMPER™ Radio with TwistPort™ connector RF elements®, SIMPER™ and TwistPort™ are trademarks of RF elements s.r.o., Humenne, Slovakia. All rights of trademark owners reserved. RF elements s.r.o. Phone: +421 2 3260 3711 info@rfelements.com www.rfelements.com...

This manual is also suitable for:

Hg3-tp-a60Hg3-tp-a90
