Summary of Contents for RF Elements StarterDish UM

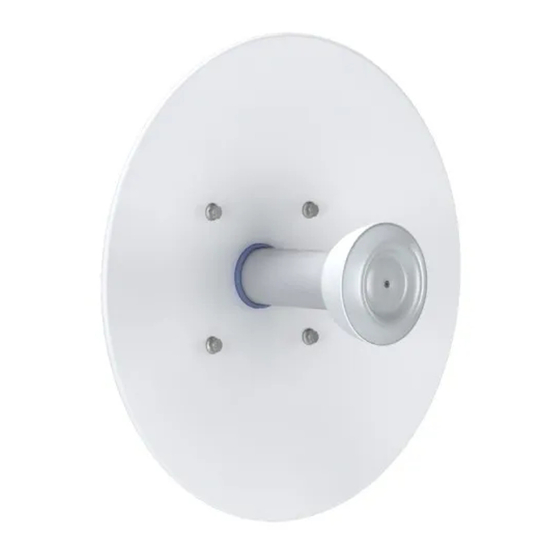

- Page 1 StarterDish™ UM STD-21-UM, STD-24-UM, STD-27-UM...
- Page 2 StarterDish™ UM Overview Product ID Dimensions Weight Gain (dBi) 298x298x269 mm 1.2 kg StarterDish™ 21 UM STD-21-UM 11.7x11.7x10.5 inch 2.7 lbs 390x390x269 mm 1.5 kg StarterDish™ 24 UM STD-24-UM 15.3x15.3x10.5 inch 3.3 lbs 554x554x352 mm 2.1 kg StarterDish™ 27 UM STD-27-UM 21.8x21.8x13.8 inch 4.6 lbs...
- Page 3 StarterDish™ UM Package Contents: Number Description Quantity StarterDish Subreflector Antenna Base Large Pole Mount Bracket Small Pole Mount Bracket Bracket Arm Bag with Hardware Bag with C5x Adapter Bag with M6 Surface Treated Nuts www.rfelements.com...
- Page 4 StarterDish™ UM One Unit: Number Description Quantity StarterDish Subreflector Antenna Base Large Pole Mount Bracket Small Pole Mount Bracket Bracket Arm V-Bolt Cover for C5x Waveguide M6 x 16mm Screw M6 Nut without Surface Treatment M6 Nut with Surface Treatment M6 Washer M3 x 10mm Screw www.rfelements.com...
- Page 5 StarterDish™ UM Step 1 Installation Guide Follow this instruction for installation on the right side of the pole. For installation on the left side of the pole, follow the instructions in Step 13. Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ.
- Page 6 StarterDish™ UM Step 2 Installation Guide Use 10 mm Ratchet Wrench when assembling the antenna. Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
- Page 7 StarterDish™ UM Step 3 Installation Guide Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
- Page 8 StarterDish™ UM Step 4 Installation Guide Use 10 mm Ratchet Wrench when assembling the antenna. Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
- Page 9 StarterDish™ UM Step 5 Installation Guide Keep twisting the Subreflector in either direction until the spring latch is engaged. Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
- Page 10 StarterDish™ UM Step 6 Installation Guide Optional: Surface treated M6 Nuts protect the bracket from galling. If you use M6 nuts without surface treatment, use anti-seize thread lubricant. Use 10 mm Ratchet Wrench when assembling the antenna. Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ.
- Page 11 StarterDish™ UM Step 7 Installation Guide Correct orientation of the Small Pole Mount bracket is shown below, for pole diameter span: 20 - 38 mm. Correct orientation of the Large Pole Mount bracket is shown below, for pole diameter span: 39 - 55 mm. Model STD-24-UM shown.
- Page 12 StarterDish™ UM Step 8 Installation Guide Dual Slant polarization setup H-V polarization setup www.rfelements.com...
- Page 13 StarterDish™ UM Step 9 Installation Guide www.rfelements.com...
- Page 14 StarterDish™ UM Step 10 Installation Guide Use Phillips Screwdriver when assembling the adaptor. www.rfelements.com...
- Page 15 StarterDish™ UM Step 11 Installation Guide Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
- Page 16 StarterDish™ UM Step 12 Uninstallation Guide Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
- Page 17 StarterDish™ UM Step 13 Pre-Installation Guide Optional: Dish setup for installation on the left side of the pole. Use T10 Screwdriver to release the screw. Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
- Page 18 StarterDish™ UM Step 14 Pre-Installation Guide Optional: Dish setup for installation on the left side of the pole. Use T10 Screwdriver to tighten the screw. Model STD-24-UM shown. Installation instructions are identical for other StarterDish™ models. Antenna dimensions may differ. www.rfelements.com...
-
Page 19: Compatible Devices
Compatible Devices For a list of compatible devices visit www.rfelements.com RF elements® is trademark of RF elements s.r.o., Slovakia. All rights of trademark owners reserved. RF elements s.r.o. Phone: +421 2 7333 7733 info@rfelements.com www.rfelements.com User Guide Part Number: STD-UM_UG_v1...
