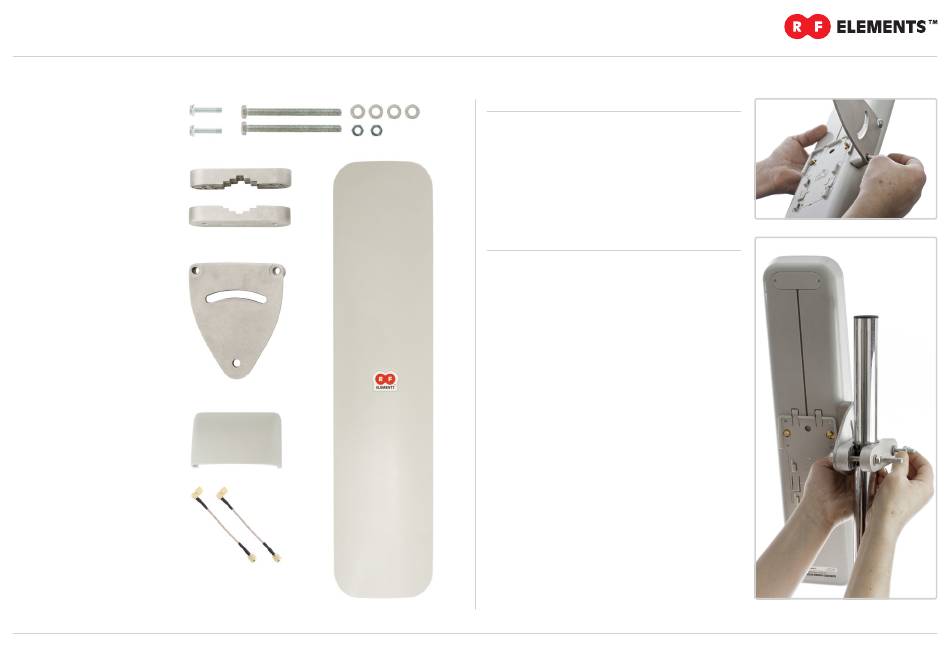

Instruction Manual

Package Contains:

1.
M6 Screws
2.
M8 Screws, Bolts and Washers
3.
Pole Clamps (2x)
1
4.
Bracket
5.
Protection Cap
6.
Pigtails
7.
Antenna Body
3
4
5
6
www.rfelements.com
MiMo Sector Antennas
2
7

1 Assemble the Antenna

Assemble the Bracket to the Antenna Body using M6 Screws

2 Install the Antenna

Use Pole Clamps and M8 Screws, Bolts and Washers to
install the Antenna.
ATTENTION: Pole Clamps and Bracket are made of diecast
aluminium, very rigid material without ability to bend.
Pole Clamps, Bracket and M8 Screws can create serious
pressure towards the pole. Using moderate tightening
force on nuts can cause deformation of poles with low
wall thickness. Using extensive tightening force on
bolts, you can damage the pole or crack the pole clamps.
Please consider that Antenna is very light and Bracket-
Pole Clamps-Screws setup is intentionally oversized. You
don´t need to push the parts to the limit to achieve very
stable installation of the Antenna.
