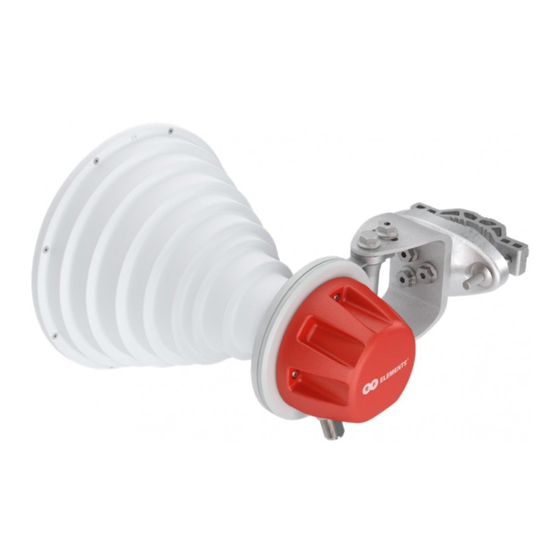

- Page 1 Symmetrical Horn Antenna CC Gen 2 CONNECTORIZED SYMMETRICAL HORN Gen2 ANTENNA HG3-CC-S30, HG3-CC-S40, HG3-CC-S50, HG3-CC-S60, HG3-CC-S70, HG3-CC-S80, HG3-CC-S90,...
- Page 3 Dimensions Weight Gain Polarization Range 30° Horn 305x300x216 2.3 Kg 5180 - 6100 18.5 Dual Linear SH-CC Gen2 HG3-CC-S30 5.1 lbs H + V 5-30 40° Horn 305x240x216 2.2 Kg 5180 - 6100 Dual Linear 16.2 SH-CC Gen2 HG3-CC-S40 4.8 lb...
- Page 4 Symmetrical Horn Gen2 SH-CC Package Contents Number Description Quantity SH-CC Body SH-CC Bracket M8 x 75mm Screw www.rfelements.com...
- Page 5 The antenna is pre-assambled for installation on the left side of the pole. If you need to swap to use the right side of the pole, see Step 5. Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn models. Antenna dimensions may differ.
- Page 6 Symmetrical Horn Gen2 SH-CC Step 2 Pole Installation USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 7 Symmetrical Horn Gen2 SH-CC Step 3 Installation Guide Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 8 Symmetrical Horn Gen2 SH-CC Step 4 Installation Guide Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 9 Symmetrical Horn Gen2 SH-CC Pre - Installation Guide OPTIONAL: Swapping right or left sided pole mount (Steps 5 and 6) www.rfelements.com...
- Page 10 Symmetrical Horn Gen2 SH-CC Step 5 Pre - Installation Optional: Right side of the pole mounting. Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 11 Symmetrical Horn Gen2 SH-CC Step 6 Pre - Installation Optional: Right side of the pole mounting. Model HG3-CC-S30 shown. Installation instructions are identical for other Symmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 12 RF elements s.r.o. Phone: +421 2 3260 3711 info@rfelements.com www.rfelements.com User Guide Part Number: UG-SH-CC-G3_v4...
