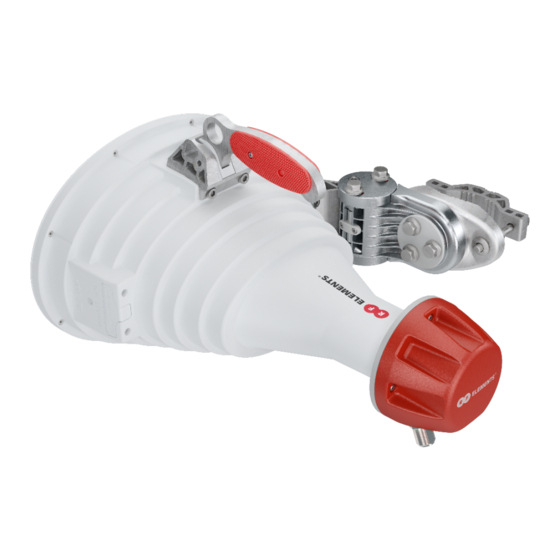

- Page 1 Asymmetrical Horn Antenna CC CONNECTORIZED ASYMMETRICAL HORN ANTENNA HG3-CC-A20, HG3-CC-A30, HG3-CC-A60, HG3-CC-A90...
- Page 2 Asymmetrical Horn CC Overview Product ID Dimensions Weight Gain (dBi) 20° Horn 414 x 417 x 254 mm 6.6 kg HG3-CC-A20 20.5 16.3 x 16.4 x 10.0 inch 14.6 lbs HG3-CC-A20 30° Horn 414 x 347 x 325 mm 6.6 kg HG3-CC-A30 20.5 16.3 x 13.7 x 12.8 inch...
- Page 3 Asymmetrical Horn CC HG3-CC-A20 Package Contents for: HG3-CC-A20 Antenna To continue installation see Step 1 Number Description Quantity AH-CC Body AH-CC Bracket Base AH-CC Bracket Arm AH-CC Bracket M6 x 20mm Screw M8 x 75mm Screw AH-CC Handle www.rfelements.com...
- Page 4 Asymmetrical Horn CC HG3-CC-A30 Package Contents for: HG3-CC-A30 Antenna To continue installation see Step 2 Number Description Quantity AH-CC Body AH-CC Bracket Base AH-CC Bracket Arm AH-CC Bracket M6 x 20mm Screw M8 x 75mm Screw AH-CC Handle www.rfelements.com...
- Page 5 Asymmetrical Horn CC HG3-CC-A60 Package Contents for: HG3-CC-A60 Antenna To continue installation see Step 3 Number Description Quantity AH-CC Body AH-CC Bracket Base AH-CC Bracket Arm AH-CC Bracket M6 x 20mm Screw M8 x 75mm Screw www.rfelements.com...
- Page 6 Asymmetrical Horn CC HG3-CC-A90 Package Contents for: HG3-CC-A90 Antenna To continue installation see Step 3 Number Description Quantity AH-CC Body AH-CC Bracket Base AH-CC Bracket Arm AH-CC Bracket M6 x 20mm Screw M8 x 75mm Screw www.rfelements.com...
- Page 7 Asymmetrical Horn CC Step 1 Pre - Installation - This step applies only to the HG3-CC-A20 Antenna. To continue installation see Step 3 USE ANTI-SEIZE THREAD LUBRICANT www.rfelements.com...
- Page 8 Asymmetrical Horn CC Step 2 Pre - Installation - This step applies only to the HG3-CC-A30 Antenna. To continue installation see Step 3 USE ANTI-SEIZE THREAD LUBRICANT www.rfelements.com...
- Page 9 Asymmetrical Horn CC Step 3 Pre - Installation Assembly shown here is for the installation on the left side of the pole. If you want to mount the antenna to the right side of the pole, see step 10 for further instructions. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown.
- Page 10 Asymmetrical Horn CC Step 4 Pre - Installation USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 11 Asymmetrical Horn CC Step 5 Installation Guide USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 12 Asymmetrical Horn CC Step 6 Installation Guide Place the AH-CC bracket as shown below for the span of pole diameters 36 - 49 mm. Place the AH-CC bracket as shown below for the span of pole diameters 50 - 80mm. Model HG3-CC-A60 shown.
- Page 13 Asymmetrical Horn CC Step 7 Installation Guide Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 14 Asymmetrical Horn CC Step 8 Installation Guide USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 15 Asymmetrical Horn CC Step 9 Installation Guide USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models. Antenna dimensions may differ. www.rfelements.com...
- Page 16 Asymmetrical Horn CC Step 10 Pre - Installation Optional: If you want to mount the antenna on the right side of the pole, flip the bracket parts as shown below. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models.
- Page 17 Asymmetrical Horn CC Step 11 Pre - Installation Optional: If you want to mount the antenna on the right side of the pole, install the bracket arm as shown below. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models.
- Page 18 Asymmetrical Horn CC Step 12 Pre - Installation Optional: If you want to mount the antenna on the right side of the pole, install the bracket arm as shown below. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models.
- Page 19 Asymmetrical Horn CC Step 13 Pre - Installation Optional: If you want to mount the antenna on the right side of the pole, flip the bracket parts as shown below. USE ANTI-SEIZE THREAD LUBRICANT Model HG3-CC-A60 shown. Installation instructions are identical for other Asymmetrical Horn models.
- Page 20 RF elements s.r.o. Phone: +421 2 3260 3711 info@rfelements.com www.rfelements.com User Guide Part Number: AH_CC_UG_v2...
