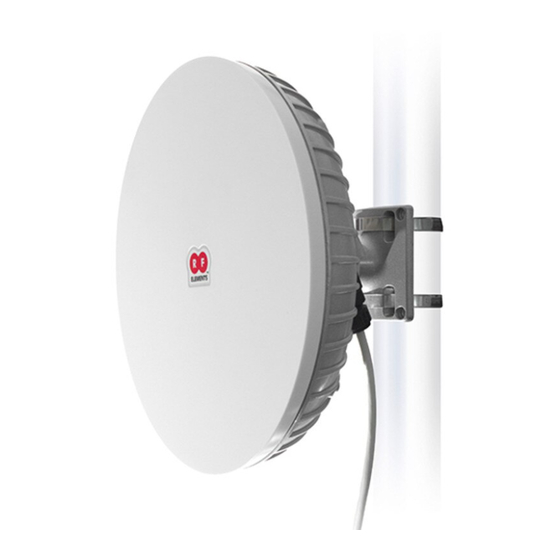

StationBox
XL
Installation Instructions
®
Package Contains:
Body
1 × Security
Screw
Cover
Chassis
4 × Screws
LED light Guides
Chassis Tool
Bracket
Rubber Brake
1 × Security
Screw
4 × Wall
2 × Hose
Plugs &
Clamps
Screws
www.rfelements.com

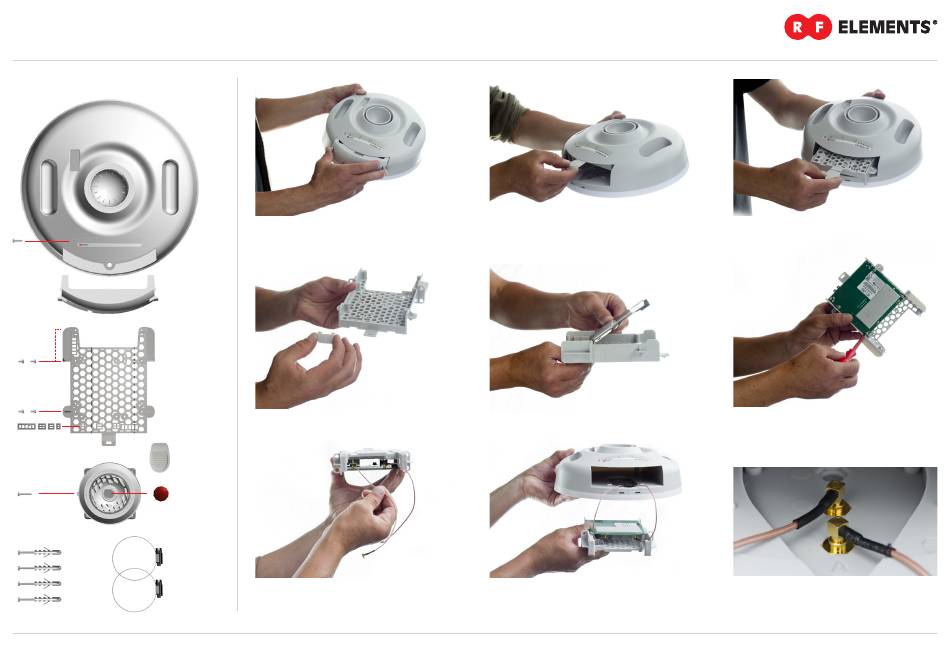

1 Disassemble the StationBox® XL: Push cover locks and remove the cover. Remove the Chassis using the Chassis Tool. Screwdriver or coin will work too.
2 Integrate the RouterBoard with Chassis: Install LED light guides according to RouterBoard setup. Secure the Routerboard using 4 screws.
3 Connect the RouterBoard with Antenna:
Connect the pigtails between antenna connectors and radio ports.
SBX XL 2.4GHz:
SBX XL 5GHz:
Port B - Horizontal
Port B - Vertical
Port C - Vertical
Port C - Horizontal
SEP13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RF Elements StationBox XL
Summary of Contents for RF Elements StationBox XL
- Page 1 StationBox Installation Instructions ® Package Contains: Body 1 Disassemble the StationBox® XL: Push cover locks and remove the cover. Remove the Chassis using the Chassis Tool. Screwdriver or coin will work too. 1 × Security Screw Cover Chassis 4 × Screws 2 Integrate the RouterBoard with Chassis: Install LED light guides according to RouterBoard setup.
- Page 2 Check the product videos at YouTube: www.youtube.com/RFelementscom 4 Insert the Chassis into the StationBox. 5 Use the Security Screw to secure the 6 Connect the ethernet cable. In case of 7 Close the Cover. Make sure the side locks Insert pigtails first, then slide the Chassis. Chassis (optional).
