RF Elements UltraDish UD-TP-21 Manual

RF Elements UltraDish UD-TP-21 Manual

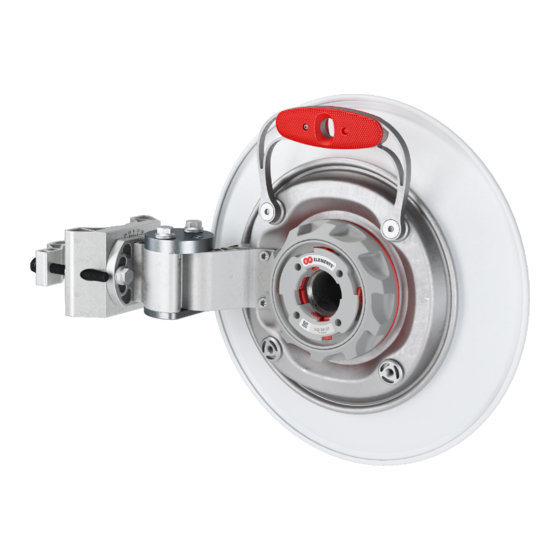

Directional parabolic dish antenna with twistport connector

Advertisement

Quick Links

UltraDish™
DIRECTIONAL PARABOLIC DISH ANTENNA
WITH TWISTPORT™ CONNECTOR
UD-TP-21
UD-TP-24
UD-TP-27

Advertisement

loading
Need help?

Need help?

Do you have a question about the UltraDish UD-TP-21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RF Elements UltraDish UD-TP-21

  • Page 1 UltraDish™ DIRECTIONAL PARABOLIC DISH ANTENNA WITH TWISTPORT™ CONNECTOR UD-TP-21 UD-TP-24 UD-TP-27...
  • Page 2 UltraDish™ Overview Dimensions Weight* Gain Product ID (mm/inch) (kg/lbs) (dBi) UltraDish™ 467 x 344 x 262 UD-TP-21 TP 5-21 18.3 x 13.5 x 10.3 UltraDish™ 505 x 420 x 262 UD-TP-24 19.8 x 16.5 x 10.3 TP 5-24 UltraDish™ 584 x 584 x 285 UD-TP-27 22.9 x 22.9 x 11.2 TP 5-27...
  • Page 3 UltraDish™ Package Contents for: UD-TP-21 and UD-TP-24 Antennas To continue installation see Step 4 Number Description Quantity UltraDish™ Bracket Base UBR UltraDish™ Subreflector Bracket Ring UBR Pole Mount Bracket M8x80mm DIN 6921 Screw M6x20mm DIN 912 Screw 2.9x16mm Lock Screw Model UD-TP-24 shown.
  • Page 4 UltraDish™ Package Contents for: UD-TP-27 Antenna To continue installation see Step 1 Number Description Quantity UltraDish™ 27 Bracket Base UBR UltraDish™ Subreflector Bracket Ring UBR Pole Mount Bracket M8x80mm DIN 6921 Screw M6x20mm DIN 912 Screw 2.9x16mm Lock Screw M8x14mm DIN 7991 Screw UltraDish™...
  • Page 5 UltraDish™ Step 1 - This step applies only to the UD-TP-27 Antenna Pre-Installation Guide To continue installation see Step 4 Use 5 mm Hex Key when assembling the antenna Model UD-TP-27 shown. www.rfelements.com...
  • Page 6 UltraDish™ Step 2 - This step applies only to the UD-TP-27 Antenna Pre-Installation Guide To continue installation see Step 4 Setup for mounting on the right side of the pole Setup for mounting on the left side of the pole Model UD-TP-27 shown.
  • Page 7 UltraDish™ Step 3 - This step applies only to the UD-TP-27 Antenna Pre-Installation Guide To continue installation see Step 4 Use 5 mm Hex Key when assembling the antenna These instructions are valid when mounting the antenna on the right side of the pole. Model UD-TP-27 shown.
  • Page 8 UltraDish™ Step 4 Installation Guide Assembly shown here is for the installation on the right side of the pole. If you need to swap to use the left side of the pole, see step 12. Use 5 mm Hex Key when assembling the antenna Model UD-TP-24 shown.
  • Page 9 UltraDish™ Step 5 Installation Guide Keep twisting the UltraDish™ Subreflector in either direction until the spring latch is engaged Model UD-TP-24 shown. Installation instructions are identical for other UltraDish™ models. Antenna dimensions may differ. www.rfelements.com...
  • Page 10 UltraDish™ Step 6 Installation Guide Use 13 mm Ratchet Wrench when assembling the bracket Model UD-TP-24 shown. Installation instructions are identical for other UltraDish™ models. Antenna dimensions may differ. www.rfelements.com...
  • Page 11 UltraDish™ Step 7 Installation Guide Install the Pole Mount Bracket as shown for pole diameter range 40 - 57 mm. Install the Pole Mount Bracket as shown for pole diameter range 58 - 80 mm. Model UD-TP-24 shown. Installation instructions are identical for other UltraDish™ models. Antenna dimensions may differ.
  • Page 12 UltraDish™ Step 8 Installation Guide Model UD-TP-24 shown. Installation instructions are identical for other UltraDish™ models. Antenna dimensions may differ. www.rfelements.com...
  • Page 13 UltraDish™ Step 9 Installation Guide Use 13 mm Ratchet Wrench when tightening the azimuth bolts Model UD-TP-24 shown. Installation instructions are identical for other UltraDish™ models. Antenna dimensions may differ. www.rfelements.com...
  • Page 14 UltraDish™ Step 10 Installation Guide Use 13 mm Ratchet Wrench when tightening the elevation bolts Model UD-TP-24 shown. Installation instructions are identical for other UltraDish™ models. Antenna dimensions may differ. www.rfelements.com...
  • Page 15 UltraDish™ Step 11 Installation Guide Optional: Install the 2.9x16 mm locking screw. Tighten the locking screw to secure the TwistPort™ lock mechanism. Model UD-TP-24 shown. Installation instructions are identical for other UltraDish™ models. Antenna dimensions may differ. TwistPort™ Adaptor or SIMPER™ Radio sold separately. www.rfelements.com...
  • Page 16 UltraDish™ Step 12 - This step applies only to the UD-TP-21 and UD-TP-24 Antennas Pre-Installation Guide Optional: Left side of the pole mounting Use 5 mm Hex Key when disassembling the antenna Model UD-TP-24 shown. Installation instructions are identical for UD-TP-21 model. Antenna dimensions may differ.
  • Page 17 UltraDish™ Step 13 - This step applies only to the UD-TP-21 and UD-TP-24 Antennas Pre-Installation Guide Optional: Left side of the pole mounting Model UD-TP-24 shown. Installation instructions are identical for UD-TP-21 model. Antenna dimensions may differ. www.rfelements.com...
  • Page 18 UltraDish™ Step 14 - This step applies only to the UD-TP-21 and UD-TP-24 Antennas Pre-Installation Guide Optional: Left side of the pole mounting Use 5 mm Hex Key when assembling the antenna Model UD-TP-24 shown. Installation instructions are identical for UD-TP-21 model. Antenna dimensions may differ.
  • Page 19 RF elements® any TwistPort™ Adaptor any SIMPER™ Radio with TwistPort™ connector RF elements®, TwistPort™, SIMPER™, and UltraDish™ are trademarks of RF elements s.r.o., Slovakia. All rights of trademark owners reserved. RF elements s.r.o. Phone: +421 2 7333 7733 info@rfelements.com www.rfelements.com...
