RF Elements UltraDish TP 400 User Manual

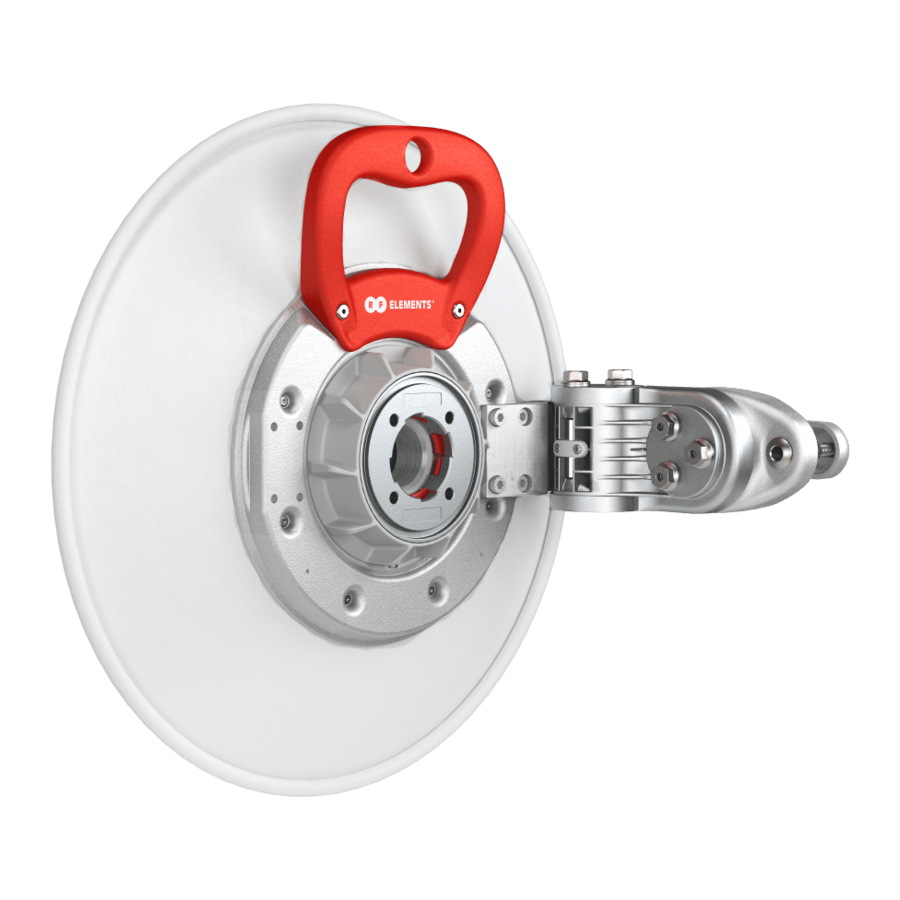

Directional parabolic dish antenna with twistport connector
Hide thumbs Also See for UltraDish TP 400:

Advertisement

Quick Links

Download this manual
UltraDish
TP
™
DIRECTIONAL PARABOLIC DISH ANTENNA
WITH TWISTPORT™ CONNECTOR
ULD-TP-400-4PACK
ULD-TP-550-4PACK
User Guide Part Number: UG-ULD-TP-4PACK_v3

Advertisement

loading
Need help?

Need help?

Do you have a question about the UltraDish TP 400 and is the answer not in the manual?

Questions and answers

Related Manuals for RF Elements UltraDish TP 400

Summary of Contents for RF Elements UltraDish TP 400

  • Page 1 UltraDish ™ DIRECTIONAL PARABOLIC DISH ANTENNA WITH TWISTPORT™ CONNECTOR ULD-TP-400-4PACK ULD-TP-550-4PACK User Guide Part Number: UG-ULD-TP-4PACK_v3...
  • Page 2 UltraDish™ TP Overview Compatible Product ID Dimensions Weight* Gain Wireless Platforms any TwistPort™ Adaptor UltraDish™ TP 458 x 407 x 315 2.7 kg ULD-TP-400 24.5 dBi 6 lbs any SIMPER™ Radio any TwistPort™ Adaptor UltraDish™ TP 566 x 566 x 315 3.7 kg ULD-TP-550 27.5 dBi...

  • Page 3: Package Contents

    UltraDish™ TP Package Contents Number Description Quantity UltraDish TP Body UltraDish TP Bracket Base UltraDish TP Bracket UltraDish TP Bracket Arm UltraDish TP Handle UltraDish TP Subreflector M8 x 75mm Screw M8 x 45mm Screw M6 x 20mm Screw 2,9 x 16mm Lock Screw www.rfelements.com...

  • Page 4: Pre-Installation

    UltraDish™ TP Pre - Installation Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...
  • Page 5 UltraDish™ TP Pre - Installation The bracket is pre-assambled for installation on the left side of the pole. If you need to swap to use the right side of the pole, see page 13. Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK.
  • Page 6 UltraDish™ TP Installation Guide Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...

  • Page 7: Pole Installation

    UltraDish™ TP Pole Installation USE ANTI-SEIZE THREAD LUBRICANT Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...
  • Page 8 UltraDish™ TP Installation Guide Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...
  • Page 9 UltraDish™ TP Installation Guide Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...
  • Page 10 UltraDish™ TP Installation Guide Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...
  • Page 11 UltraDish™ TP Installation Guide Optional: Install the 2.9 x 16mm locking screw. Tighten the locking screw to secure the TwisPort™ lock mechanism. Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. TwistPort™ Adaptor or SIMPER™ Radio sold separately. www.rfelements.com...
  • Page 12 UltraDish™ TP Installation Guide Optional: If the locking screw was used, unscrew it by about 10 mm before unlocking the TwisPort™ mechanism. Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. TwistPort™ Adaptor or SIMPER™ Radio sold separately. www.rfelements.com...
  • Page 13 UltraDish™ TP Pre - Installation Optional: Right side of the pole mounting. Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...
  • Page 14 UltraDish™ TP Pre - Installation Optional: Right side of the pole mounting. Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...
  • Page 15 UltraDish™ TP Pre - Installation Optional: Right side of the pole mounting. Model ULD-TP-400-4PACK shown. Installation instructions are identical for ULD-TP-550-4PACK. Antenna dimensions may differ. www.rfelements.com...

  • Page 16: Compatible Devices

    RF elements® any TwistPort™ Adaptor any SIMPER™ Radio with TwistPort™ connector RF elements®, TwistPort™, SIMPER™ and UltraDish™ are trademarks of RF elements s.r.o., Humenne, Slovakia. All rights of trademark owners reserved. RF elements s.r.o. Phone: +421 2 3260 3711 info@rfelements.com...
