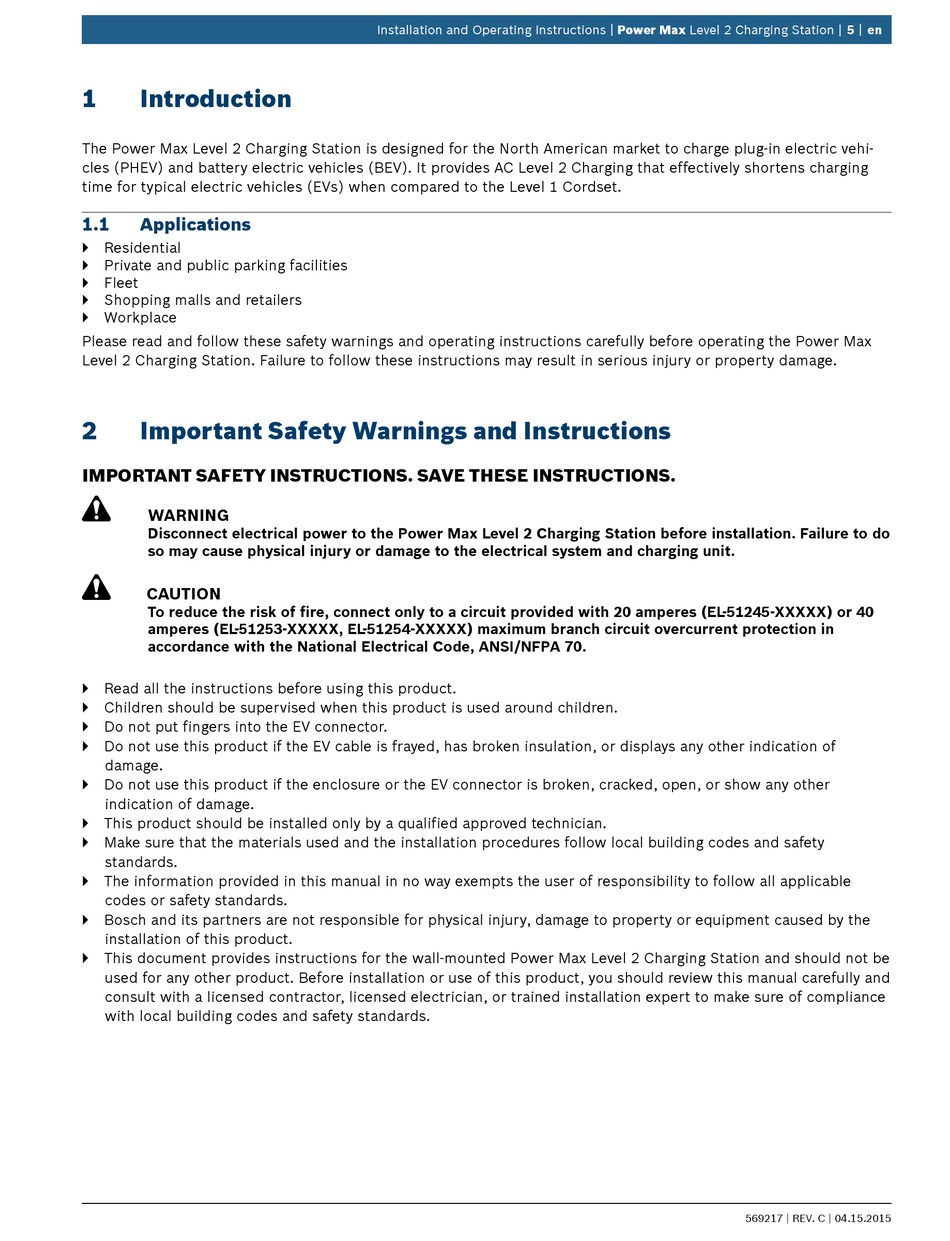

Introduction

The Power Max Level 2 Charging Station is designed for the North American market to charge plug-in electric vehi-
cles (PHEV) and battery electric vehicles (BEV). It provides AC Level 2 Charging that effectively shortens charging
time for typical electric vehicles (EVs) when compared to the Level 1 Cordset.
1.1

Applications

} Residential
} Private and public parking facilities
} Fleet
} Shopping malls and retailers
} Workplace
Please read and follow these safety warnings and operating instructions carefully before operating the Power Max
Level 2 Charging Station. Failure to follow these instructions may result in serious injury or property damage.
2

Important Safety Warnings and Instructions

IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
WARNING
Disconnect electrical power to the Power Max Level 2 Charging Station before installation. Failure to do
so may cause physical injury or damage to the electrical system and charging unit.
CAUTION
To reduce the risk of fire, connect only to a circuit provided with 20 amperes (EL-51245-XXXXX) or 40
amperes (EL-51253-XXXXX, EL-51254-XXXXX) maximum branch circuit overcurrent protection in
accordance with the National Electrical Code, ANSI/NFPA 70.
} Read all the instructions before using this product.
} Children should be supervised when this product is used around children.
} Do not put fingers into the EV connector.
} Do not use this product if the EV cable is frayed, has broken insulation, or displays any other indication of
damage.
} Do not use this product if the enclosure or the EV connector is broken, cracked, open, or show any other
indication of damage.
} This product should be installed only by a qualified approved technician.
} Make sure that the materials used and the installation procedures follow local building codes and safety
standards.
} The information provided in this manual in no way exempts the user of responsibility to follow all applicable
codes or safety standards.
} Bosch and its partners are not responsible for physical injury, damage to property or equipment caused by the
installation of this product.
} This document provides instructions for the wall-mounted Power Max Level 2 Charging Station and should not be
used for any other product. Before installation or use of this product, you should review this manual carefully and
consult with a licensed contractor, licensed electrician, or trained installation expert to make sure of compliance
with local building codes and safety standards.
Installation and Operating Instructions | Power Max Level 2 Charging Station | 5 | en
569217 | REV. C | 04.15.2015
