Operations and Troubleshooting

6.1

Charging

1. See Figure 6-1. Turn the Power Max Level 2 Charging Station power switch to ON. Wait 3 seconds for the green
indicator light.

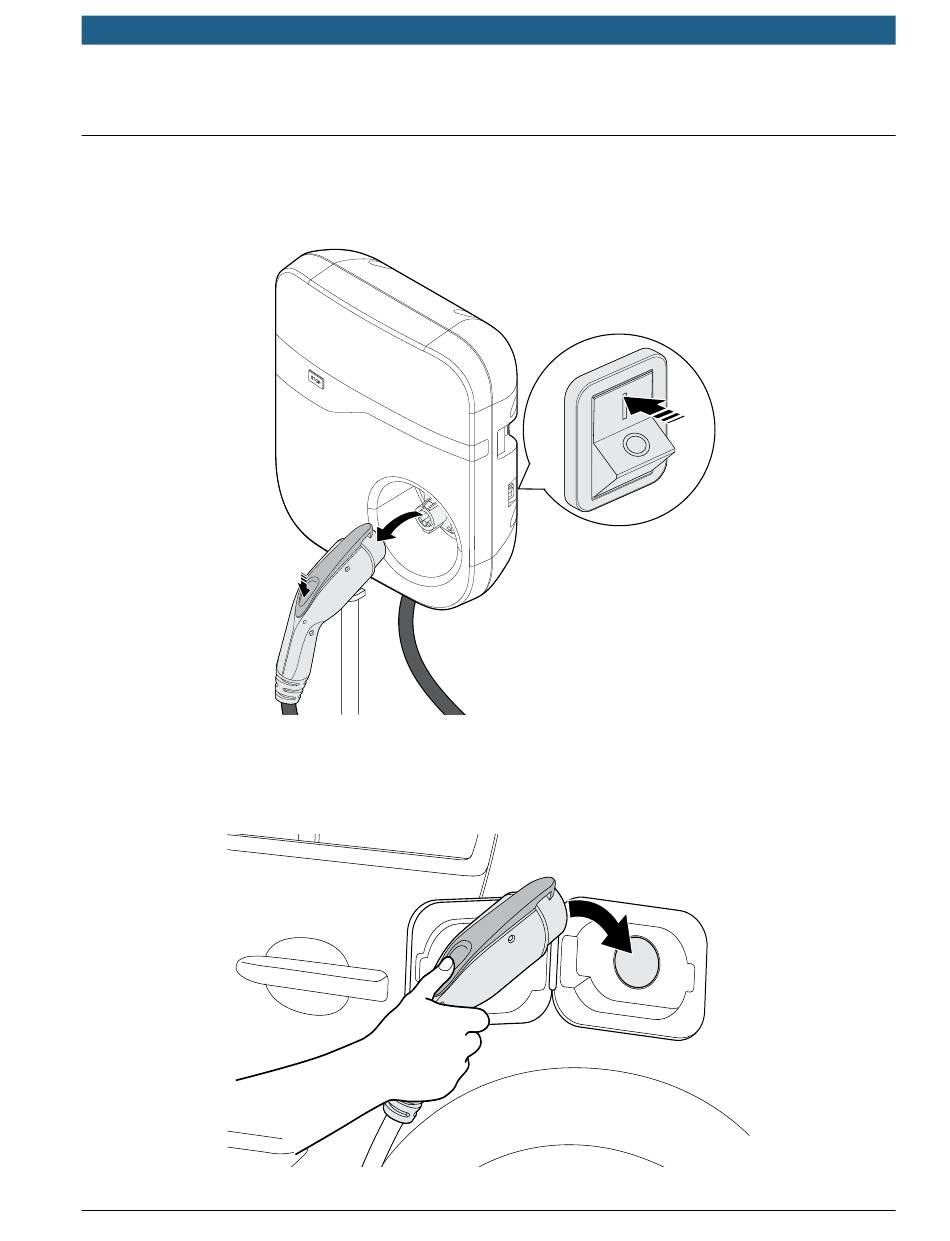

Figure 6-1. Powering on the Power Max Level 2 Charging Station and removing the charging plug
2. See Figure 6-2. Release the charging plug from the plug dock and connect it to the EV to start the charging
process.
Installation and Operating Instructions | Power Max Level 2 Charging Station | 13 | en
Figure 6-2. Connecting the charging plug to the EV
