5.

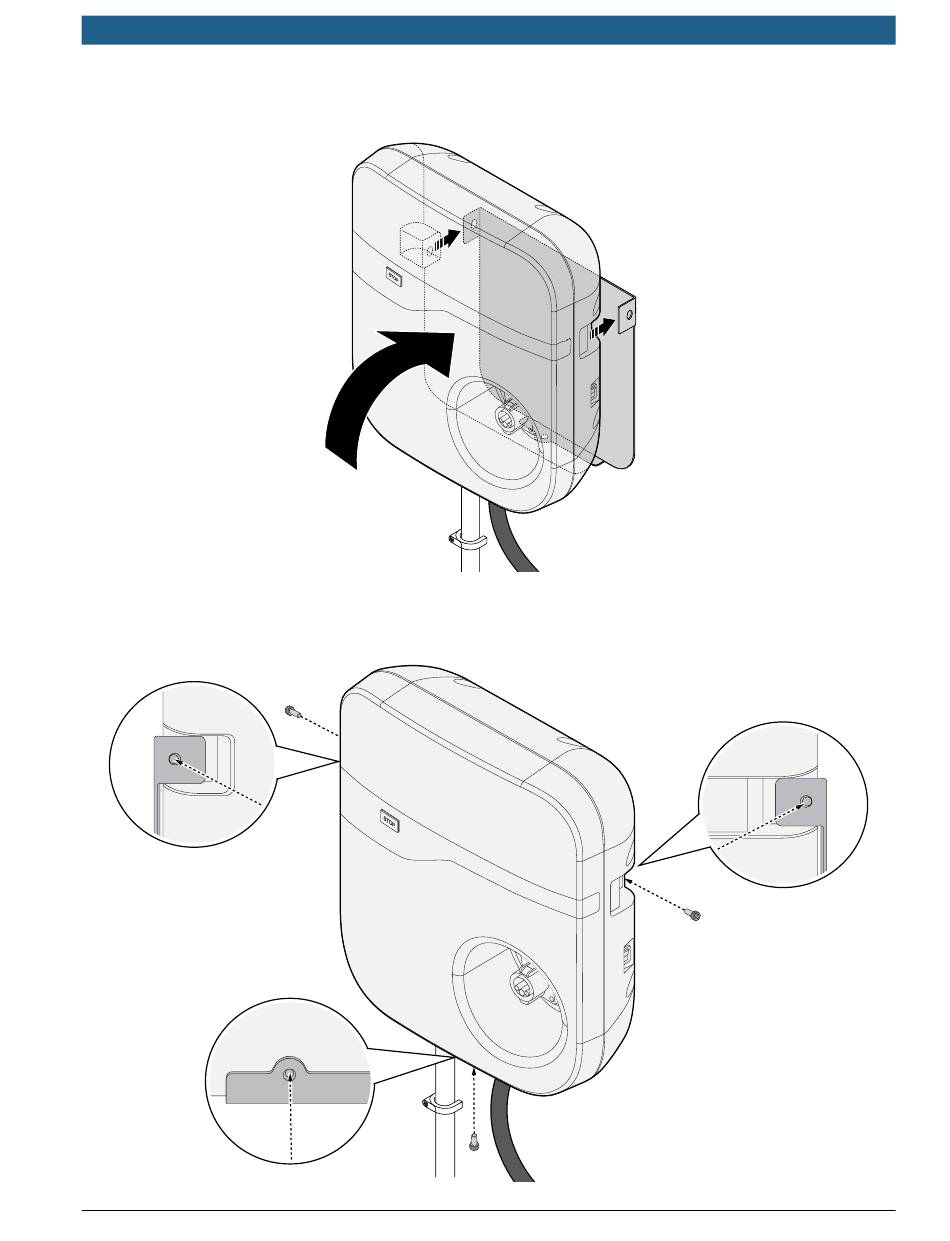

See Figure 4-5. Align the screw holes of the mounting bracket with the Level 2 Charging Station.
6.
See Figure 4-6. Install and secure the charging station to the mounting bracket with the three (3) screws
supplied.
Installation and Operating Instructions | Power Max Level 2 Charging Station | 11 | en
Figure 4-5. Alignment of charging station on mounting bracket
Figure 4-6. Installation screw locations
569217 | REV. C | 04.15.2015
