Instalación Del Disipador De Calor - Dell PowerEdge R230 Owner's Manual

3 socket lever

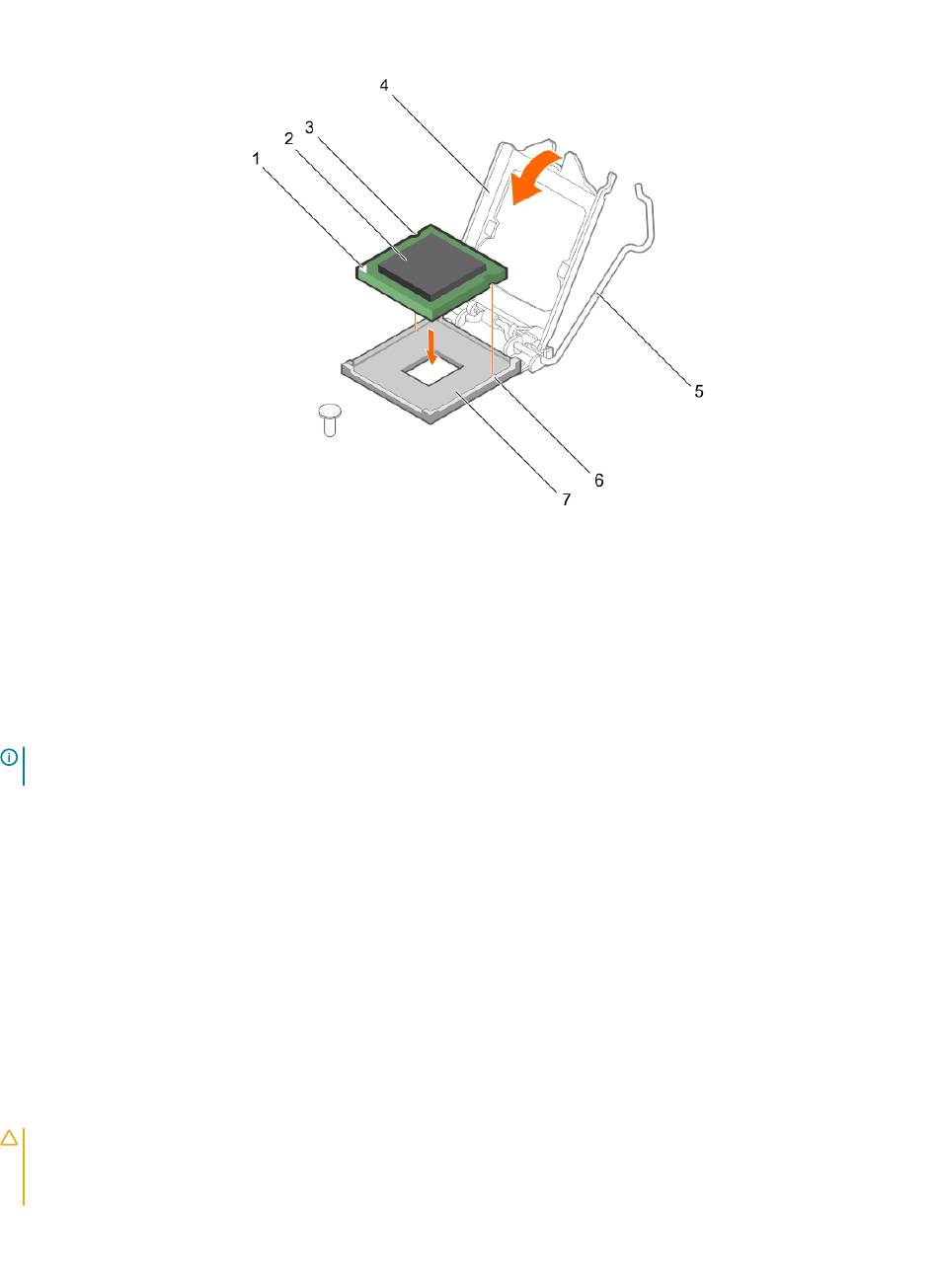

Figure 66. Installing a processor
1 pin-1 indicator of processor
3 slot (2)
5 socket lever
7 socket
Next steps
NOTE: Ensure that you install the heat sink after you install the processor. The heat sink is necessary to maintain proper thermal
conditions.
1 Install the heat sink.
2 Follow the procedure listed in
3 While booting, press F2 to enter System Setup and check that the processor information matches the new system configuration.
4 Run the system diagnostics to verify that the new processor operates correctly.
Related links
Removing the cooling shroud
Instalación del disipador de calor
Installing the cooling shroud
Instalación del disipador de calor
Requisitos previos
PRECAUCIÓN: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and
simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team.
Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions
that are shipped with your product.
After working inside your system.
2 processor
4 processor shield
6 socket keys (2)
Instalación y extracción de los componentes del sistema 115
