Summary of Contents for XAC XCL_T305

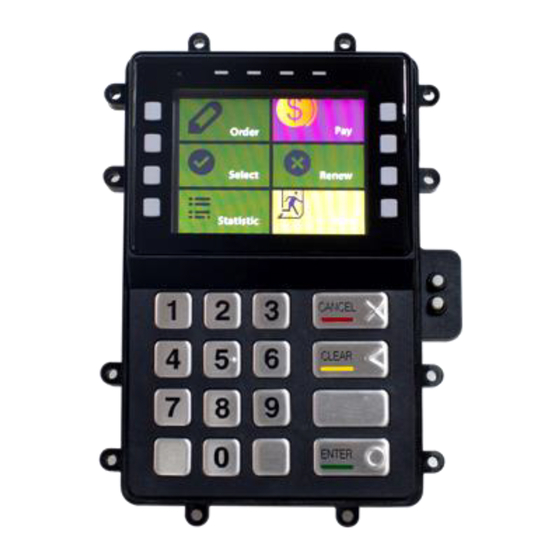

- Page 1 NATTENDED ERMINAL CL_T305 NSTALLATION UIDE...
- Page 2 - 2 RS232 to RJ 12 cable (Figure 3) - Water proof cover (Figure 4) - P90/P95 dedicated cable (Figure 5) – Used to connect and supply power to XAC Secure Hybrid Reader (Optional) - Power adaptor & power cord (Optional)
- Page 3 XAC Automation Corporation. XAC AUTOMATION CORP. shall not be held liable for technical and editorial omissions or errors made herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of his material.
- Page 4 Figure 8 Figure 9 5. C ABLE ANAGEMENT Step 1: Place the cable clamp on top of cable management channels. The tip on clamp should be...
- Page 5 aligned to the hole on T305 (Figure 10) Figure 10 Step 2: Tight the hand screw on the right side of cable clamp (Figure 11) until the cable clamp can move loosely. Figure 11 Step 3: Plug each cable into corresponding port, and collect each cable into cable channel (Figure 12).
- Page 6 YBRID EADER COM3 port is dedicated to XAC Secure Hybrid Reader module, P95. When connecting P95 to T305, please using the P90 dedicated cable (Figure 4), and make sure plug the RJ connector into COM3 port of T305 (Figure 16); otherwise, P95 will not function.
- Page 7 10. I T305 NSTALL CARDS INTO T305 provides 2 SAM slots. Please follow the steps as Figure 18 to install your SAM card. Step 1: Unlock the screw on the SAM cover by screw driver to remove the cover. Step 2: Insert the card into SAM slot completely. Figure 18 "CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type.
