9 4 1 9 W I F I M O D U L E I N S T A L L A T I O N G U I D E

Use these instructions to install the WiFi module on the Avery Dennison® Monarch® 9419 Printer.

Use the Printer Management Utility to configure the WiFi settings. For information, refer to the

Offline/Online System Administrator's Guide.

You need a small Phillips screwdriver to install the WiFi module.

Caution:

Electrostatic discharge can damage or destroy the printhead or electronic components.

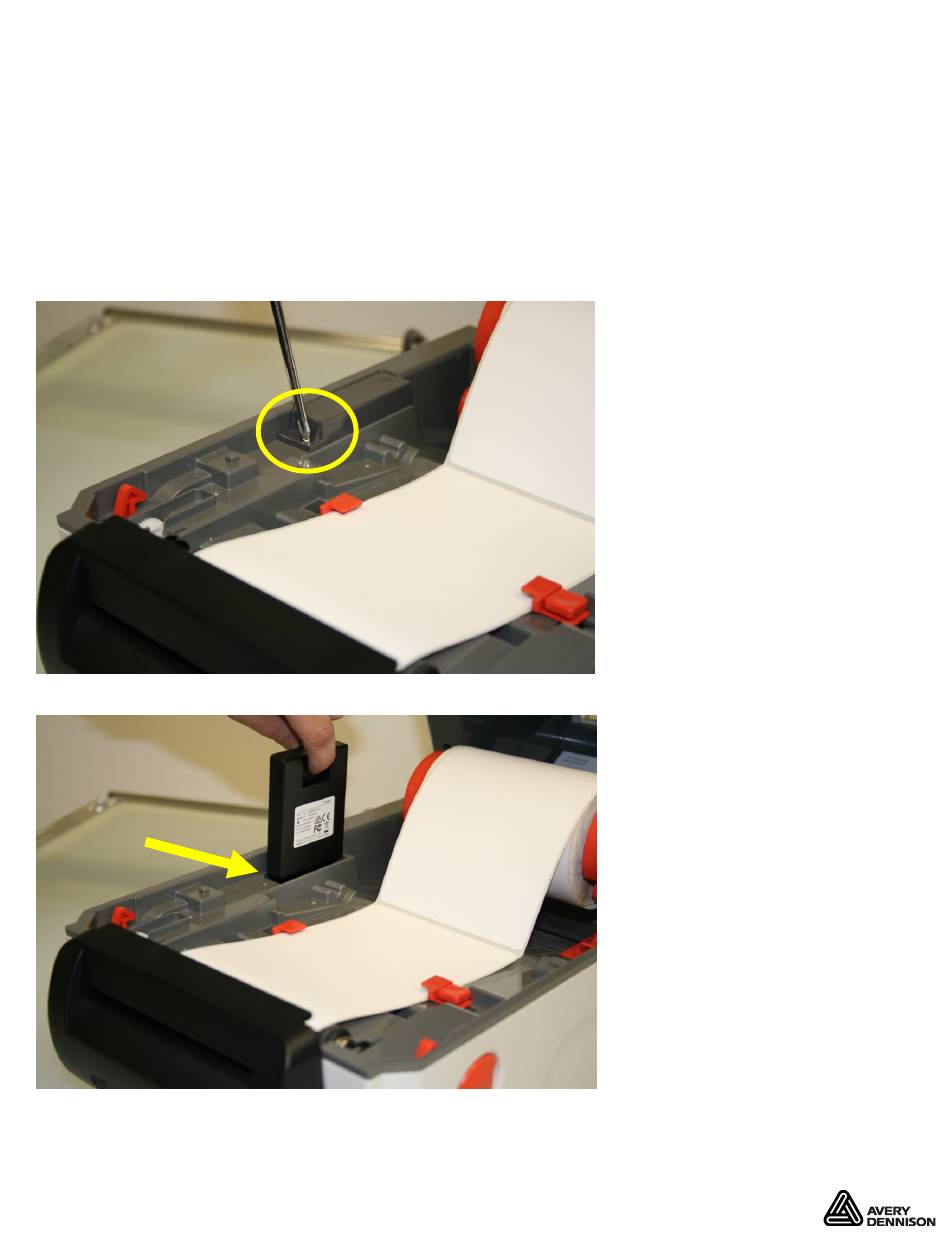

1. Turn the cover latches and lift the cover.

2. Remove the WiFi module cover.

3. Insert the WiFi module in the slot.

Avery Dennison® and Monarch® are registered trademarks of Avery Dennison Corporation.

TC9419WFIG Rev. AA 9/16

Note: The wireless module has a

flat corner to match the

opening in the printer; the

module must be inserted as

shown.
