VISIX SOLUTIONS | VISIX VX-FR-01 Facial Recognition Camera – Hardware Installation Manual

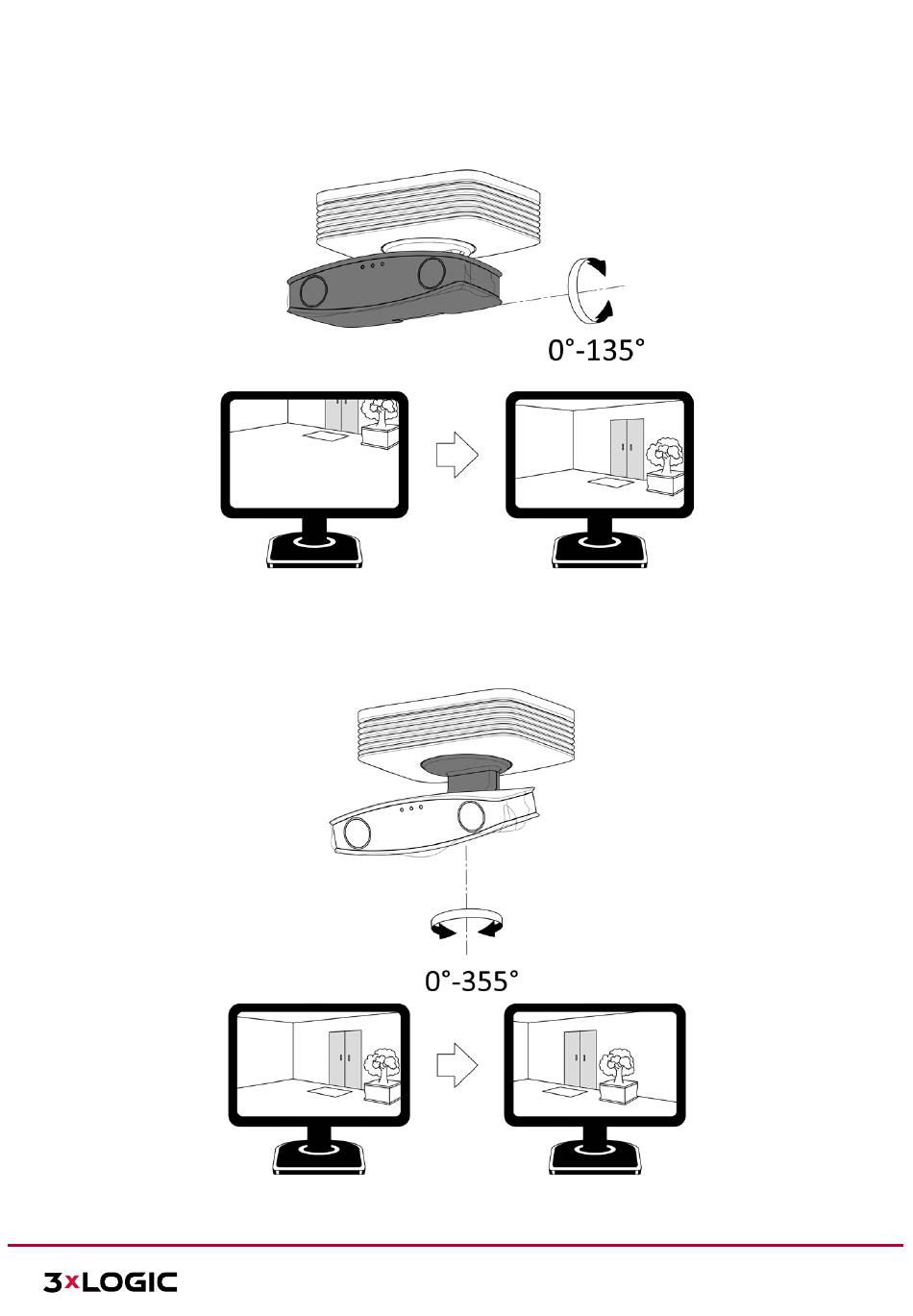

2.2.4 INSTALLATION – ADJUSTING VIEWING ANGLE
1. Adjust the head of the camera to achieve the desired tilt angle.
Adjust Tilt Angle
Figure 2-17
2. Pan the camera around to achieve the desired field-of-vision.
Panning Camera to Adjust Field-of-Vision
Figure 2-18
20
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
