4. Fasten the camera base cover to the wall with the supplied screws.

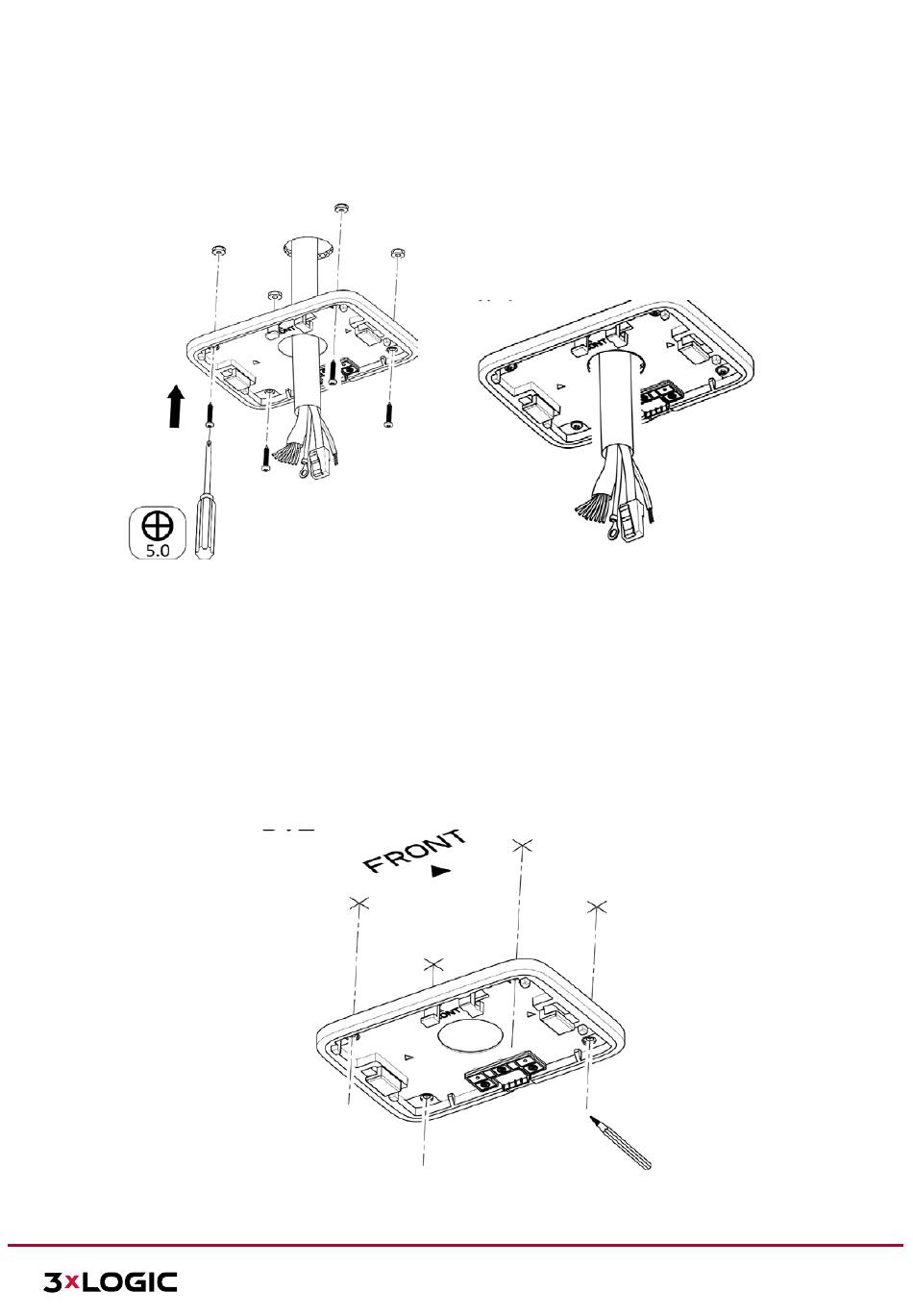

Figure 2-6
Please continue to Section 2.2.3 for instructions on finalizing installation.
2.2.2 INSTALLATION – ROUTING CABLE THROUGH SIDE
1. Using the mounting base cover as a template, use a pencil to mark the four fastening points. Be sure
the camera will be facing the correct direction. The FRONT is clearly labelled on the inside the camera
base cover.
12000 Pecos Street, Suite 290, Westminster, CO 80234 | www.3xlogic.com | (877) 3XLOGIC
Fastening the Base Cover to the Installation Surface
Using the Base Cover as a Template
Figure 2-7
