2. After you finish marking the installation surface with the pencil, use a drill with a 5.5mm bit to drill
the holes for the fastening screws. Insert the supplied anchors into the holes. Use a 40mm hole cutting
bit to cut-out the cable routing hole.

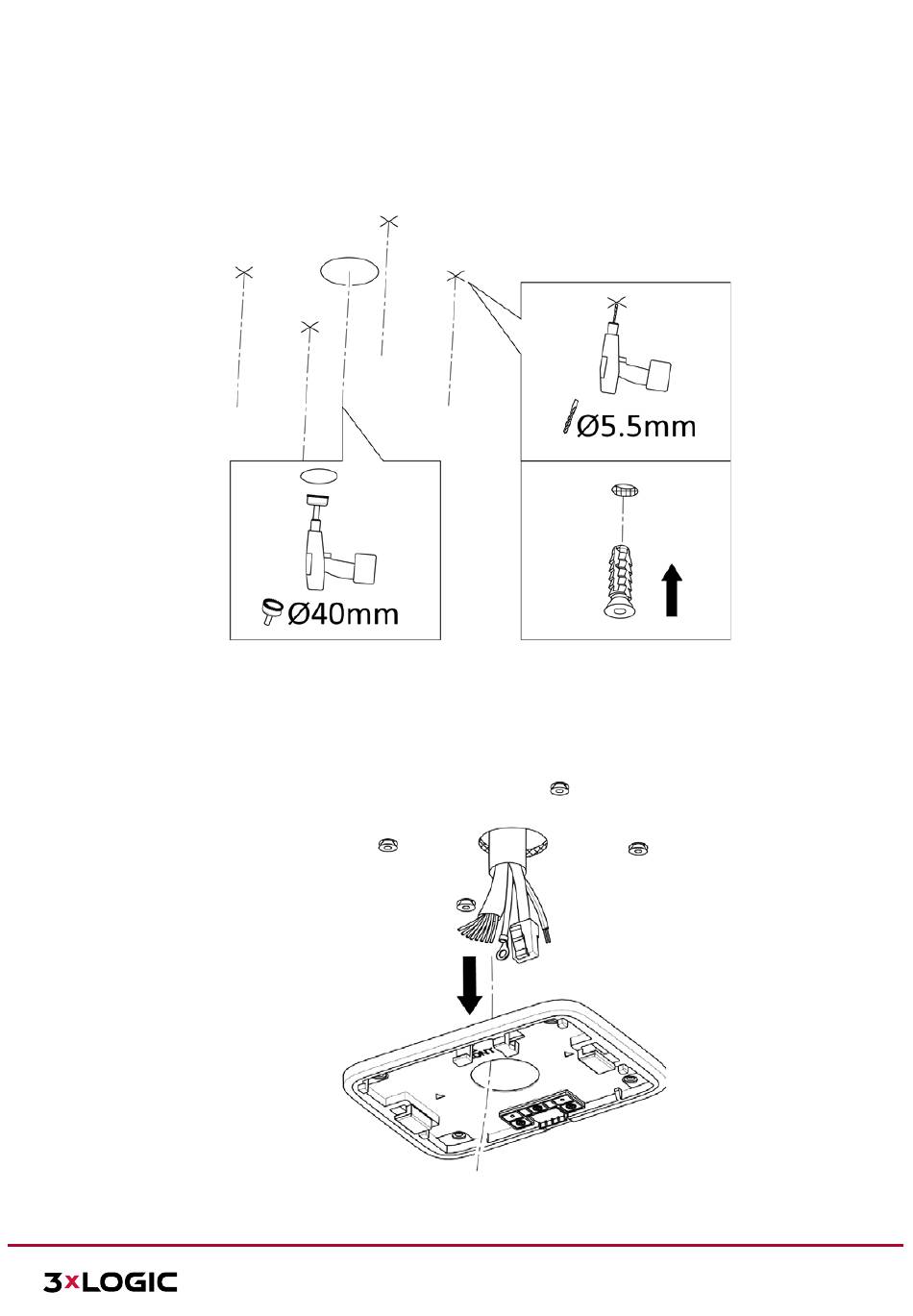

Drilling and Inserting Anchors
Figure 2-4
3. Route the cabling harness through the 40mm hole that was previously cut-out of the installation
surface.
Routing Cable Through the Camera Base Cover Center Hole
Figure 2-5
