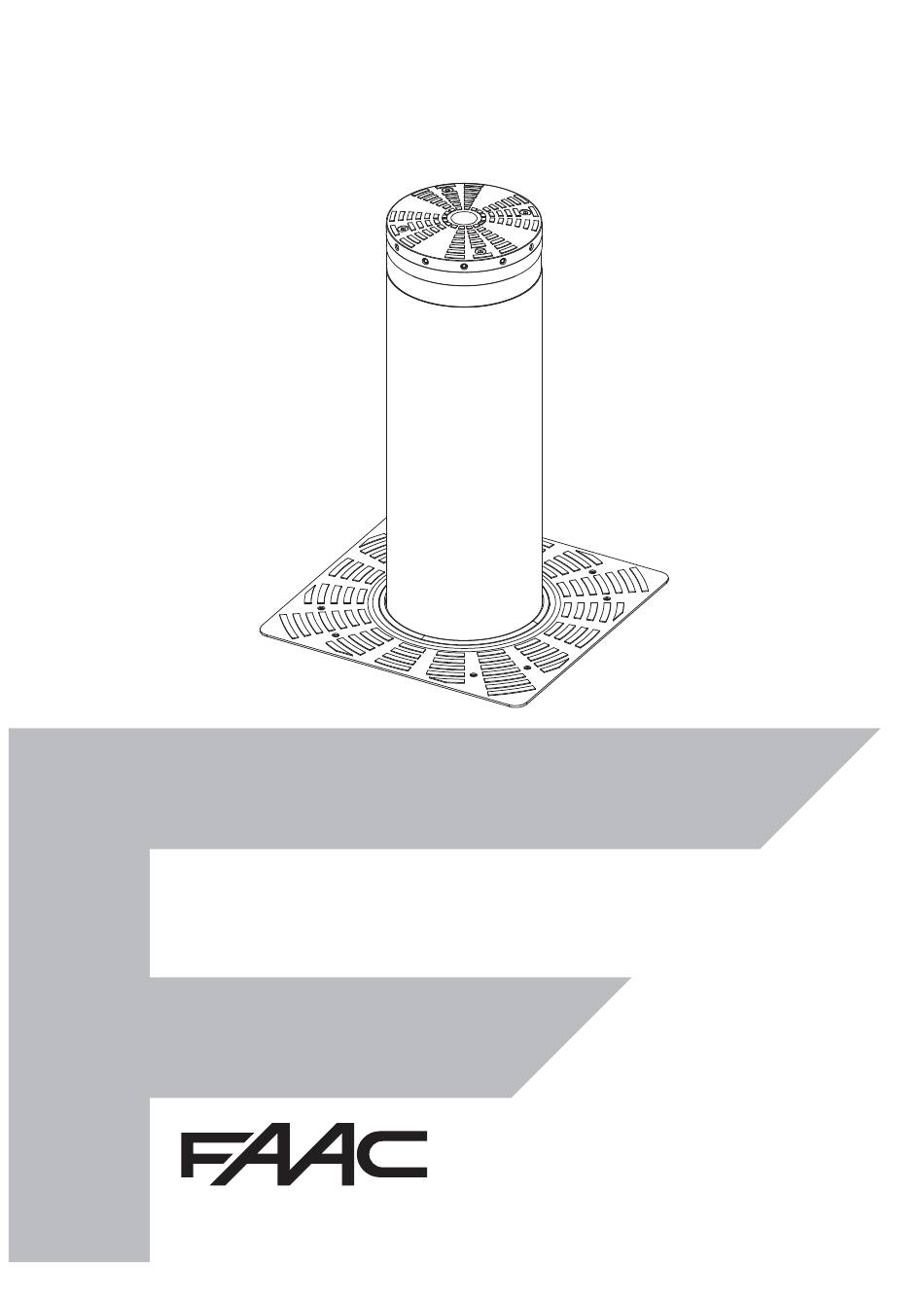

  • Page 1 J355HA M30-P1...
  • Page 2 Nessuna parte di questo manuale può essere riprodotta, archiviata, distribuita a terzi né altrimenti copiata, in qualsiasi formato e con qualsiasi mezzo, sia esso elettronico, meccanico o tramite fotocopia, senza il preventivo consenso scritto di FAAC S.p.A. Tutti i nomi e i marchi citati sono di proprietà dei rispettivi fabbricanti.

  • Page 3: Table Of Contents

    1. J355HA M30-P1 BOLLARD ........

  • Page 4: J355Ha M30-P1 Bollard

    1. J355HA M30-P1 BOLLARD   Please read with the utmost care this manual supplied with the product, since it contains important indications about safety, installation, use and maintenance. 1.1 GENERAL NOTES These instructions apply to model J355HA M30-P1 This model refers to anti-terrorist automatic hydraulic traffic bollards. The cylinder is driven by a two-motor hydraulic unit fixed inside the structure.

  • Page 5: Dimensions

     1 Tab.A - Technical specifications (1) check the oil level using the rod attached to the ² ² MODEL J355HA M30-P1 filler plug (Fig. 1 ref. ) with the piston rod completely retracted and pressurised EFO system. Power supply...

  • Page 6: Installation

    2. INSTALLATION 2.1 FACILITIES   For draining, use a Ø 100 flexible tube. Dig up to a depth of about 1.8 m IMPACT DIRECTION UNPROTECTED AREA PROTECTED AREA 3200 Excavation Ground Dimensions in mm 3 J355HA M30-P1 732768 - Rev.C...

  • Page 7: Preparing The Foundation Cage

    2.2 PREPARING THE FOUNDATION CAGE Prepare the foundation cage (not supplied by us) as shown in the figure below using Ø 12 mm iron rods CLASS B450C Dimensions in mm 4 J355HA M30-P1 732768 - Rev.C...

  • Page 8: Securing The Pit

    Prepare the electrical connection and the earthing. To connect the bollard to the control board, use a cable, type FG7OR-0,6/1kV-16G1,5, having a max. length of 50 m. N.B.: every pipe must be laid in compliance with the current rules. J355HA M30-P1 732768 - Rev.C...
  • Page 9 The steel framework must comply with class B450C (ASTM A615 Grade 60). During the concrete maturation phase, insert one or more contrast supports inside the pit to prevent inwards deformation of the walls due to pushing by the fresh concrete. J355HA M30-P1 732768 - Rev.C...

  • Page 10: Electric Wiring

    Perform the electric wiring in the junction box on the bollard side, as shown in Fig. 13.   Any additional accessory (i.e. photocells, opening/closing push-buttons, etc.), that have to be connected to the control unit, must compulsorily have double insulation. ³ ³ ³ 8 J355HA M30-P1 732768 - Rev.C...

  • Page 11: Inserting The Bollard In The Pit

    2.6 FASTENING THE TOP CROWN After having secured the bollard, complete the installation positioning and securing the top crown with 8 cylindrical head screws with hexagon socket M8x30 INOX supplied standard Cable length out of pit: 2.5m 11 9 J355HA M30-P1 732768 - Rev.C...

  • Page 12: Efo (Optional)

    2.7 EFO (OPTIONAL) The J355HA M30-P1 bollard can be equipped with an Emergency Fast Operation "EFO" that can be activated at any time to command immediate rising of the automation. The EFO system consists of a tank, a pressure switch and a control solenoid valve powered at 230 V ~ For connection of the solenoid valve (different depending on the N.O.

  • Page 13: Je275 Control Unit

    2. Release the F key and select 06 with the key + 3. Simultaneously press keys F and - to exit programming and save the changes performed.   For any further information on the unit programming, please refer to the relevant instructions. J355HA M30-P1 732768 - Rev.C...

  • Page 14: Connection Of Several Bollards (Master/Slave)

    LOOP 1 LOOP 1 MOT2 MOT1 LAMP OUT 4 OUT 3 OUT 3 OUT 2 OUT 1 +24 V +24 V EMERGENCY STOP CLOSE OPEN A LOOP 2 LOOP 2 LOOP 1 LOOP 1 14 J355HA M30-P1 732768 - Rev.C...

  • Page 15: Troubleshooting

    To discharge the EFO, activate the system by opening the contact between terminals 7 and 8 of the terminal board (EFO N.O.) or supplying ³ ³ voltage to the solenoid valve via the same terminals (EFO N.C.), then slowly unscrew the screws in figure 15, ref. ³ ³ 15 J355HA M30-P1 732768 - Rev.C...
  • Page 16 FAAC S.p.A. Soc. Unipersonale Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 - Fax +39 051 758518 www.faac.it - www.faacgroup.com J355HA M30-P1 732768 - Rev.C...
