iMars series PV energy storage inverter
（1）Trademark and product type
（2）Model and important technical parameters
（3）Certification system of the inverter confirming
（4）Serial number, company name and country of origin
Icons
 TUV certification mark. The inverter is certified by TUV.
 CE certification mark. The inverter complies with the CE directive.
 CQC certification mark. The inverter passed CQC certification.

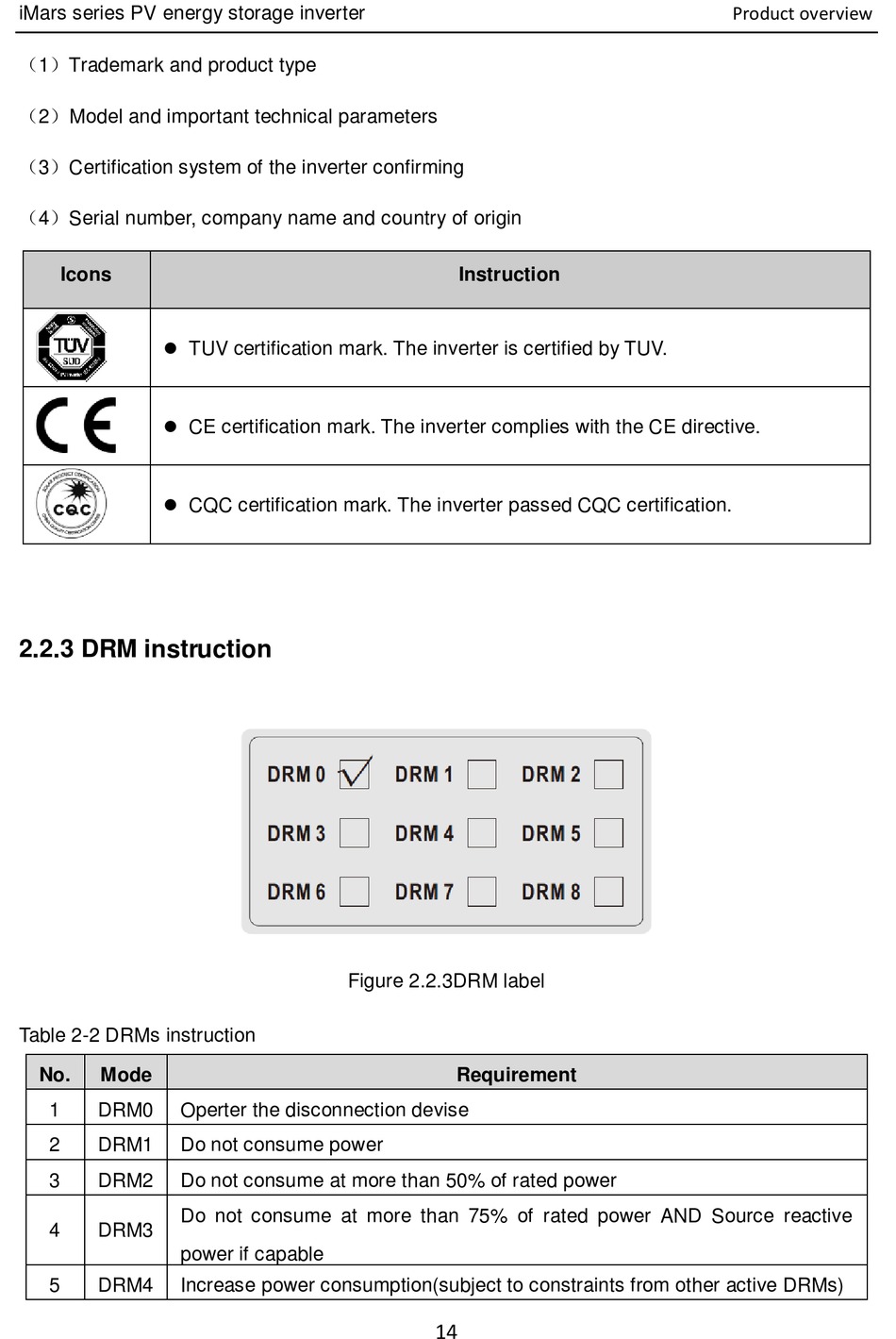

2.2.3 DRM instruction

Table 2-2 DRMs instruction
No. Mode
1 DRM0 Operter the disconnection devise
2 DRM1 Do not consume power
3 DRM2 Do not consume at more than 50% of rated power
Do not consume at more than 75% of rated power AND Source reactive
4 DRM3
power if capable
5 DRM4 Increase power consumption(subject to constraints from other active DRMs)
Instruction
Figure 2.2.3DRM label
Requirement
14
Product overview
