Features

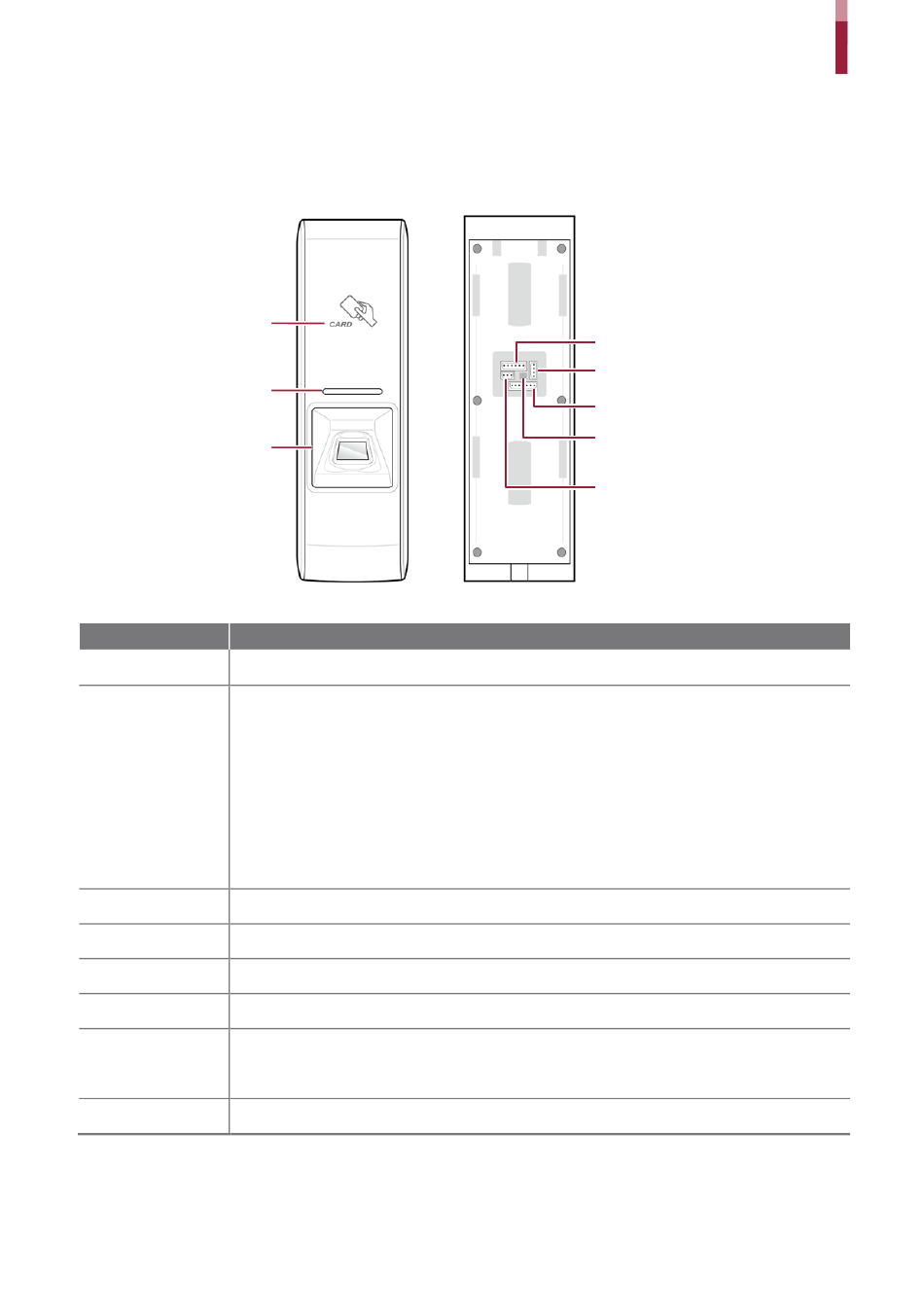

Part names and features

RF card touch area
LED lamp
Fingerprint reader
Name
RF card touch area Reads RF cards for entering and exiting.
•
•
•
•
•
LED lamp
•
•
•
•
Fingerprint reader Reads fingerprints placed on it for entering and exiting.
5-pin cable connector Connects power and RS-485.
4-pin cable connector Connects an Ethernet cable.
7-pin cable connector Connects the switch inputs and relay outputs.
Sets the RS-485 termination resistor and resets the network settings.
•
DIP switch
•
3-pin cable connector Selects between Wiegand input and output.
Green: Authentication success
Red: Authentication failure
Pink: Processing
Blue and sky-blue alternate flashing every 2 seconds: Normal operation
Red and pink alternate flashing every 2 seconds: The device is locked.
Blue and red alternate flashing every 2 seconds: The clock has been reset due to an empty
internal battery. (The clock needs to be reconfigured.)
Blue and yellow alternate flashing every 2 seconds: The dynamic IP address has not been
received properly.
Red flashes every 2 seconds: Failure to reset. Contact the manufacturer.
Yellow flashes every 2 seconds: Waiting for an input.
1: If the termination resistor of BioEntry Plus is required, set to ON.
2: Resets the network settings to the default. For details, refer to the Resetting Network Set
ting.
5-pin cable connector
4-pin cable connector
7-pin cable connector
DIP switch
3-pin cable connector
Feature
