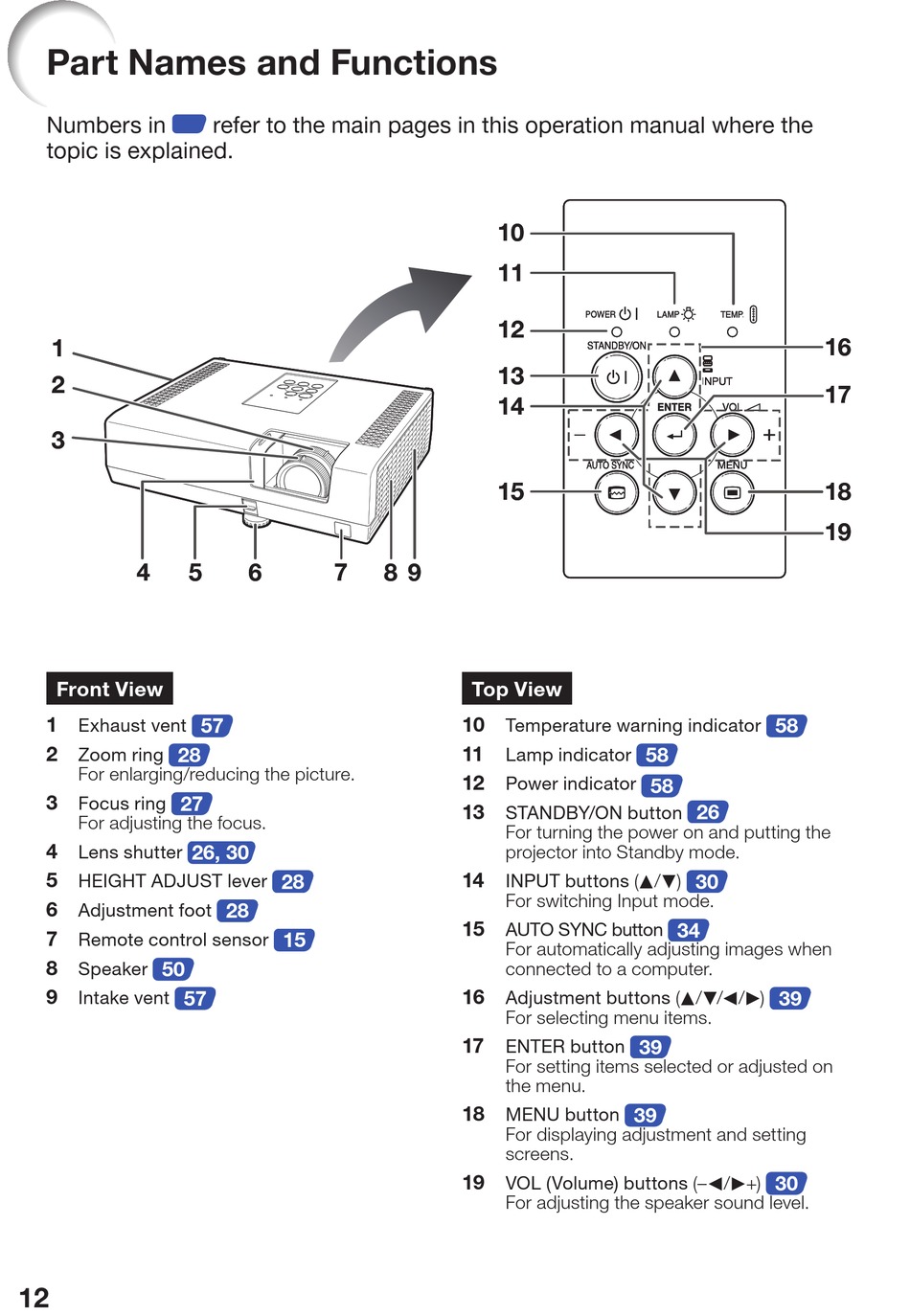

Part Names and Functions

Z
Numbers in
topic is explained.
1 1
2 2
3 3
4 4 5 5

Front View

1
Exhaust vent
2
28
Zoom ring
For enlarging/reducing the picture.
3
Focus ring 27
For adjusting the focus.
4
Lens shutter
5
HEIGHT ADJUST lever
6
Adjustment foot
7
Remote control sensor
8
Speaker 50
9
57
Intake vent
12
refer to the main pages in this operation manual where the
6 6 7 7
57
26, 30
28
28
15
10 10
11 11
12 12
13 13
14 14
15 15
8 9 8 9

Top View

10
Temperature warning indicator
11
Lamp indicator
12
Power indicator
13
STANDBY/ON button
For turning the power on and putting the
projector into Standby mode.
14
INPUT buttons (P/R)
For switching Input mode.
15
AUTO SYNC button
For automatically adjusting images when
connected to a computer.
16
Adjustment buttons (P/R/O/Q)
For selecting menu items.
17
ENTER button
For setting items selected or adjusted on
the menu.
18
MENU button
For displaying adjustment and setting
screens.
19
VOL (Volume) buttons (–O/Q+)
For adjusting the speaker sound level.
58
58
58
26
30
34
39
39
39
30
16 16
17 17
18 18
19 19
