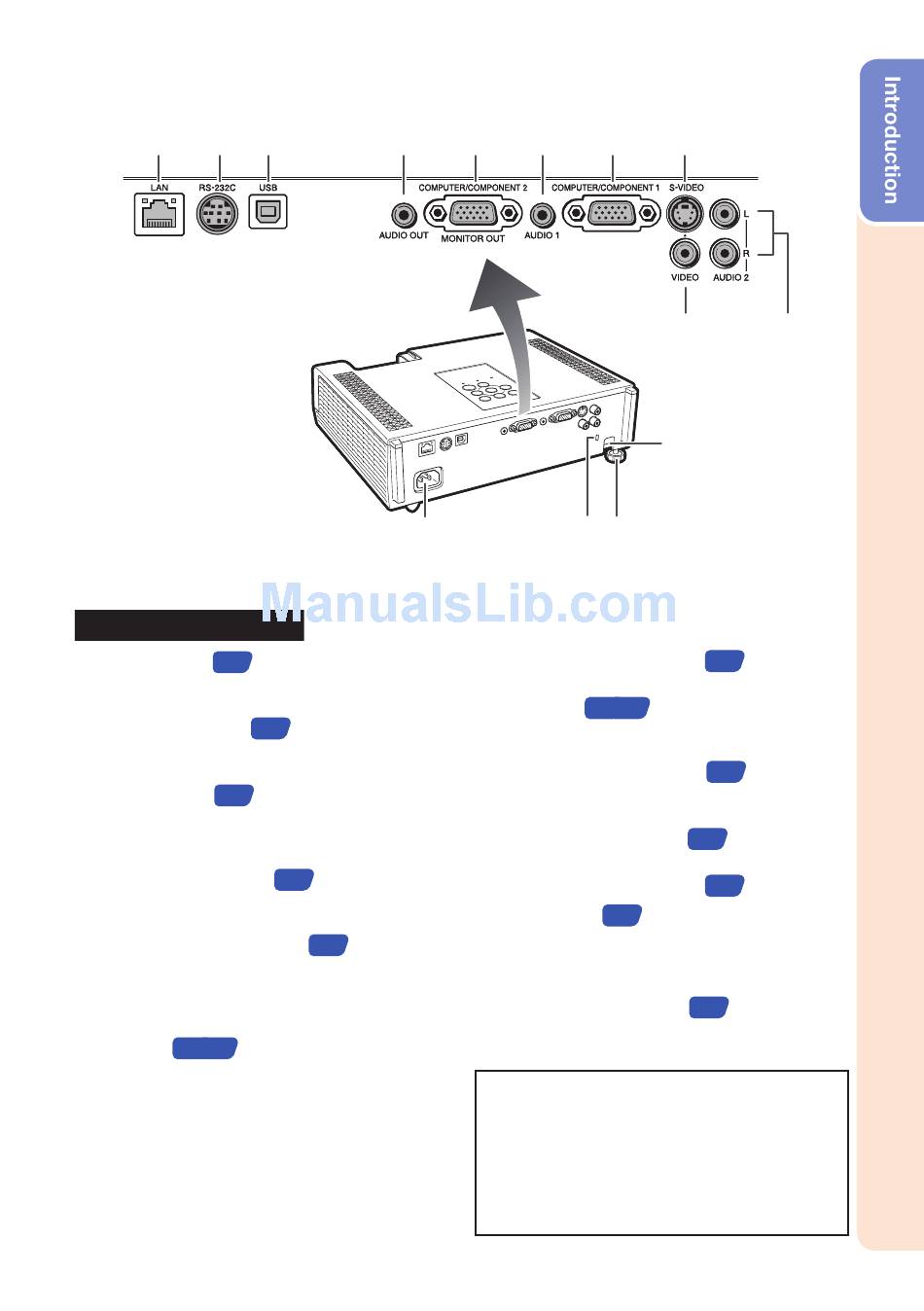

Rear View (Terminals)

1
LAN terminal 25
Terminal for controlling the projector using a
computer via network.
2
RS-232C terminal
Terminal for controlling the projector using a
computer.
3
USB terminal 35
Terminal connecting with the USB terminal
on the computer for using the supplied
remote control as the computer mouse.
4
AUDIO OUT terminal
Audio output terminal of equipment
connected to the audio input terminal.
5
MONITOR OUT* terminal
(Output terminal for computer RGB and
component signals)
Terminal for connecting a monitor.
COMPUTER/COMPONENT 2* input
terminal 21, 22
Terminal for computer RGB and component
signals.
* You must switch the setting depending on
whether you are using the terminal for MONITOR
OUT or COMPUTER/COMPONENT 2 input.
3 3 4 4
11 11
24
23
23
5 5 6 6 7 7
12 12 13 13
6
AUDIO 1 input terminal
7
COMPUTER/COMPONENT 1 input
terminal 21, 22
Terminal for computer RGB and
component signals.
8
S-VIDEO input terminal
Terminal for connecting video equipment
with an S-video terminal.
9
VIDEO input terminal
Terminal for connecting video equipment.
10
AUDIO 2 input terminal
11
AC socket
25
Connect the supplied power cord.
12
Kensington Security Standard
connector
13
Rear adjustment foot
14
Security bar
Using the Kensington Lock
• This projector has a Kensington Security
Standard connector for use with a
Kensington MicroSaver Security System.
Refer to the information that came with the
system for instructions on how to use it to
secure the projector.
8 8
9 9
10 10
14 14
23
22
22
23
28
13
