Connecting the Projector to Other Equipment (Continued)
Equipment
Video equipment
Camera/Video game
Note
• You can also use the COMPUTER/COMPONENT 2 terminal as the MONITOR OUT terminal. To use
this terminal as an input terminal, set "COMPUTER2 Select" to "Input" before connecting the external
equipment. (See page 52.)
• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a
commercially available cable that fi ts in the projector terminal you want to connect.
• The projector does not support RGBC signals via the Euro-scart.
22

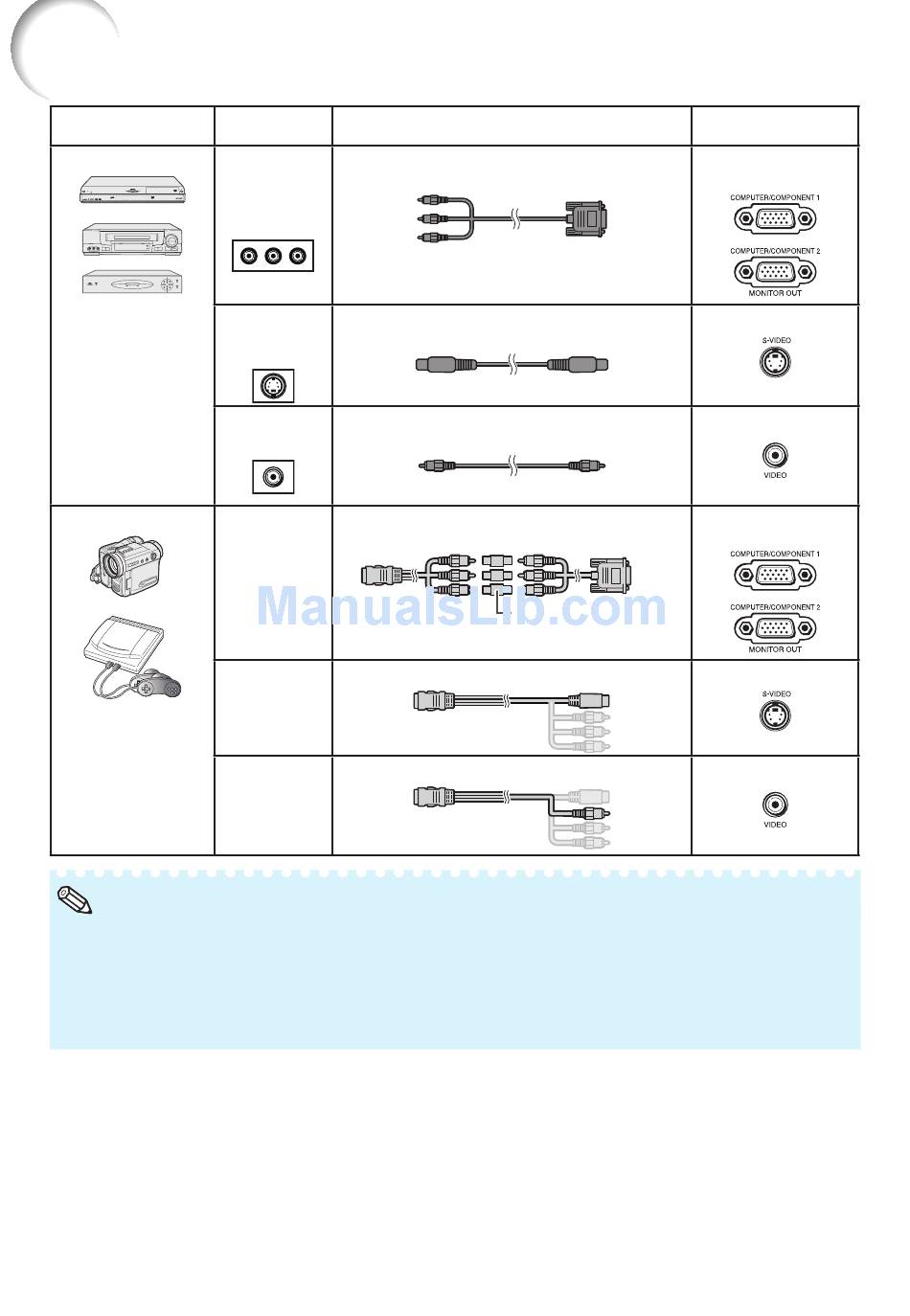

Terminal on
connected equipment
3 RCA to mini D-sub 15 pin cable
(optional, AN-C3CP2)
Component
video output
terminal
S-video S-video cable (commercially available)
output
terminal
Video cable (commercially available)
Video output
terminal
Cables for a camera or a video game/3 RCA to
mini D-sub 15 pin cable (optional, AN-C3CP2)
Component
video
output
terminal
Cables for a camera or a video game
S-video
output
terminal
Cables for a camera or a video game
Video
output
terminal
Cable
RCA adaptor plug
(commercially available)
Terminal on the
projector
COMPUTER/
COMPONENT 1, 2
S-VIDEO
VIDEO
COMPUTER/
COMPONENT 1, 2
S-VIDEO
VIDEO
