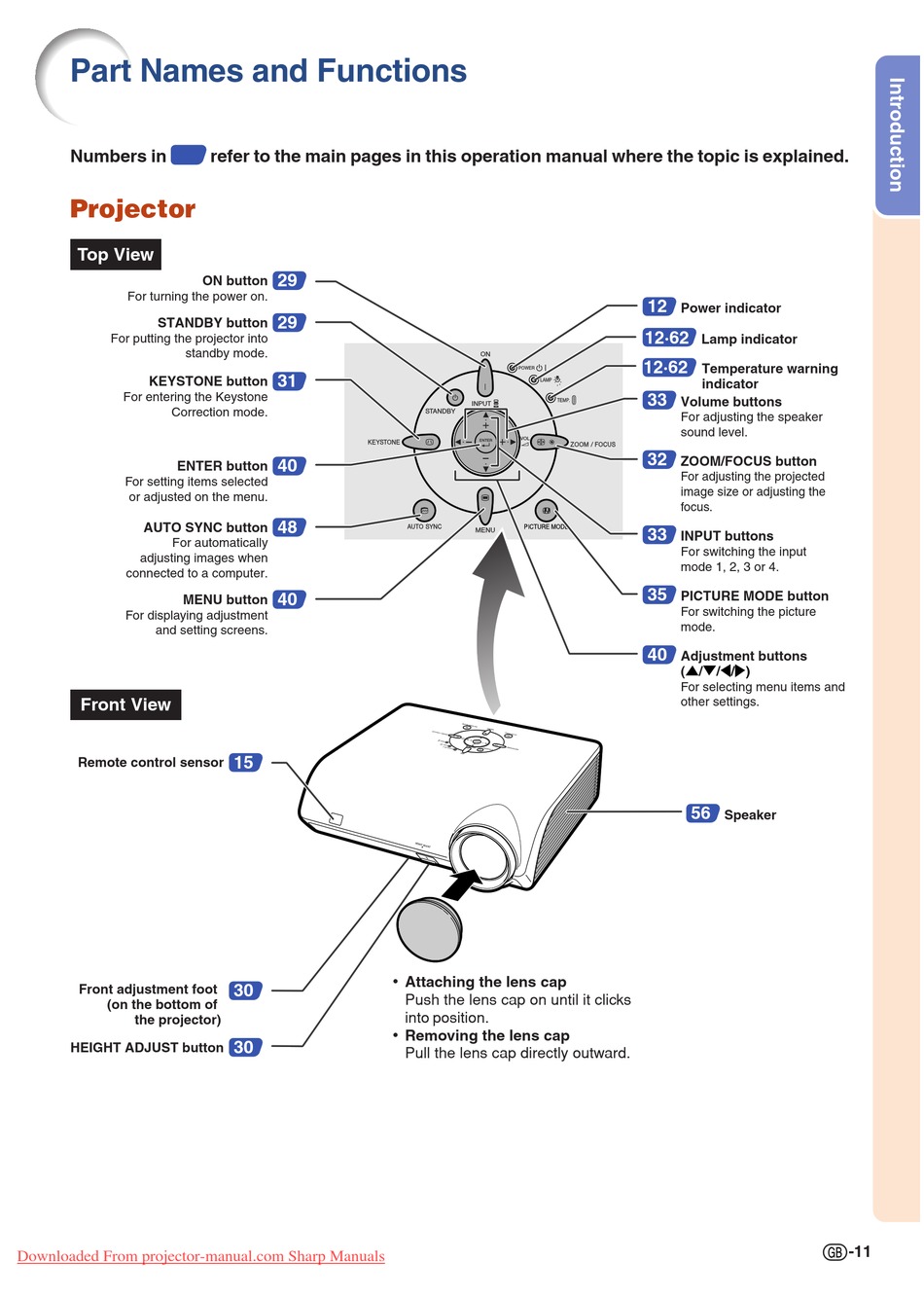

Part Names and Functions

Numbers in
Projector
Top View
For turning the power on.
STANDBY button
For putting the projector into
standby mode.
KEYSTONE button
For entering the Keystone
Correction mode.
ENTER button
For setting items selected
or adjusted on the menu.
AUTO SYNC button
For automatically
adjusting images when
connected to a computer.
MENU button
For displaying adjustment
and setting screens.
Front View
Remote control sensor
Front adjustment foot
(on the bottom of
the projector)
HEIGHT ADJUST button
Downloaded From projector-manual.com Sharp Manuals
refer to the main pages in this operation manual where the topic is explained.
29
ON button
29
31
40
48
40
15
30
30
• Attaching the lens cap
Push the lens cap on until it clicks
into position.
• Removing the lens cap
Pull the lens cap directly outward.
12
Power indicator
12·62
Lamp indicator
12·62
Temperature warning
indicator
33
Volume buttons
For adjusting the speaker
sound level.
32
ZOOM/FOCUS button
For adjusting the projected
image size or adjusting the
focus.
33
INPUT buttons
For switching the input
mode 1, 2, 3 or 4.
35
PICTURE MODE button
For switching the picture
mode.
40
Adjustment buttons
('/"/\/|)
For selecting menu items and
other settings.
56
Speaker
-11
