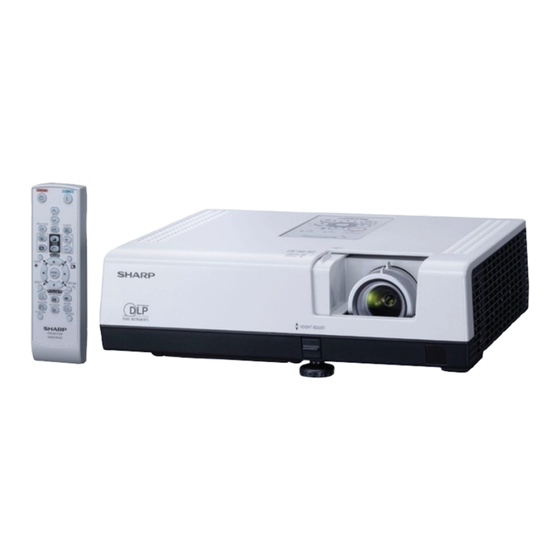

Sharp PGD3510X Quick Manual

Sharp's 3D Ready PGD3510X, PGD3010X and PGD2710X take projection to the next level. In addition to incorporating the
latest BrilliantColor™ DLP® technology with DLP® Link™ (for high quality 3D projection from a single projector), these fully
featured conference/classroom models o er a 7 Watt audio system, RJ-45 network connector, built-in closed caption decoder
and sealed DLP chip with lter-free design. Built in an ISO 14001 certi ed factory, with low standby power consumption
(0.77W) and estimated lamp life of up to 4,000 hours (in eco-mode), these slim and lightweight RoHS compatible projectors
are exceptionally environmentally friendly.
3D Ready. Make sure your projector is ready for use with new
3D content. Incorporating DLP
with compatible 3D eld sequential content and active shutter
3D glasses (not included) that support the DLP
these projectors captivate audiences with breathtaking 3D
imagery. The PGD3510X, PGD3010X and PGD2710X o er 3D
support with both 60 Hz and 120 Hz XGA (1024 x 768) and
SVGA (800 x 600) sources. Please refer to the product operation
manual and www.sharp.ca website for more speci c 3D
compatibility information and FAQs. (When not being used
for 3D projection, these models o er full compatibility with
traditional "2D" content.)
High Brightness and Contrast. 3500 ANSI Lumens (PGD3510X),
3 0 0 0 A N S I L u m e n s ( P G D 3 0 1 0 X ) , 2 7 0 0 A N S I L u m e n s
(PGD2710X), with 2000:1 Contrast Ratio.
High Output 7 Watt Audio System.
®
BrilliantColor TM DLP Technology and Six-Segment Colour Wheel
(PGD3010X and PGD2710X) for superior colour accuracy with
more realistic image reproduction.
Wide Complement of Input/Output Terminals. Inputs include
RGB/Component Video, another RGB/Component Video port
selectable for use either as a second input or loop-through
output, S-Video, Composite Video, two Stereo Audio Inputs
and Stereo Variable Audio Line Output. Control and
Communications terminals include RJ-45 LAN, RS-232C and USB.
Screen Size and Projection Distance
Normal Mode (4:3)
Projection (Screen) Size Projection Distance [L]
Diag. [X] Width Height Minimum [L1]
300" 240" 180" 34' 0"
200" 160" 120" 22' 8"
150" 120" 90" 17' 0"
120" 96" 72" 13' 7"
100" 80" 60" 11' 4"
80" 64" 48" 9' 1"
60" 48" 36" 6' 10"
40" 32" 24" 4' 6"
Note: Allow a margin of error in the values in the diagram above.
3D Ready XGA BrilliantColor™ DLP® Data/Video Projectors
® ™
Link technology, when used
® ™
Link system,
Distance from the lens centre
to the bottom of the image [H]
Maximum [L2]
41' 3" 7 ¼"
27' 6"
20' 7"
16' 6"
13' 9"
11' 0"
8' 3"
5' 6"
PGD3510X
PGD3010X
PGD2710X
RJ-45 Network Connector permits remote access by web
browser, diagnostics and auto e-mail sending, and ability to
link to a speci c website for service and support.
Free Downloadable Sharp Display Manager™ Software for
multiple projector management and monitoring for theft
prevention.
Sealed DLP Chip with Filter-Free Design for lower maintenance
and operating costs.
"Quick Start" On-Screen Set-up Guide; Built-in Closed Caption
Decoder.
Wall Colour Screen Adjustment Function for use with
whiteboards and blackboards.
Presentation Assist Functions (by remote control) include: 3D
Mode on/o , page up/down, GUI (Graphic User Interface)
pointer, spotlight and mouse control. Pointer o ers a choice
of ve on-screen icons; Spotlight function highlights a box or
row of information.
Unique Slide Lens Cover helps protect lens from dust and
provides an instant lens shutter. In the event the lens cover is
kept closed for more than 30 minutes, the Auto Power-O
function automatically turns o the projector.
Enhanced Anti-Theft Design includes LAN monitor function,
reinforced metal security bar, Kensington™ lock compatibility
and optional security cable kit (for use with optional ceiling
mount bracket).
Shutter Door on Lamp Housing helps keep glass con ned in
the event of lamp breakage.
(3500 ANSI Lumens)
(3000 ANSI Lumens)
(2700 ANSI Lumens)
Rear Panel
