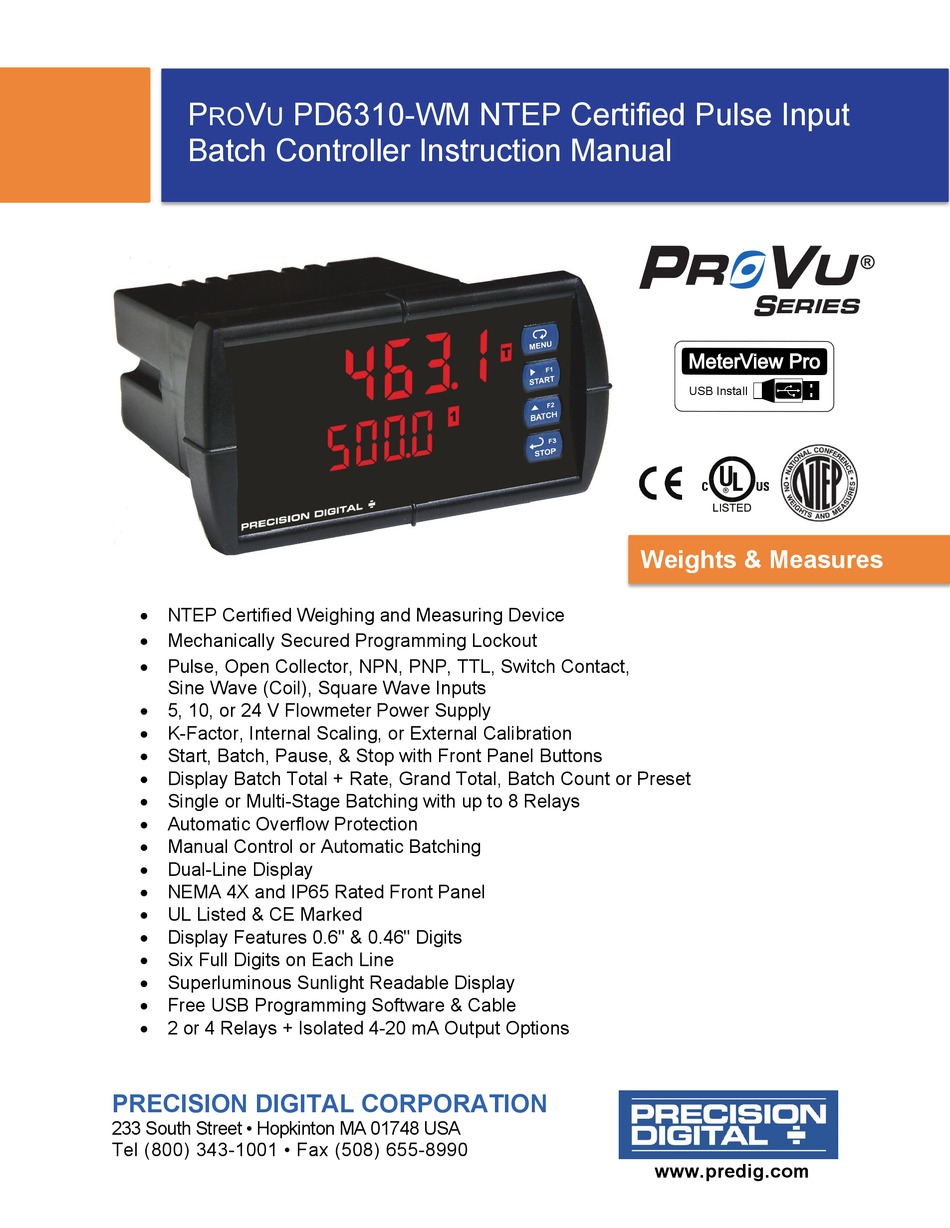

PRECISION DIGITAL PROVU Series Instruction Manual

Provu ntep certified pulse input batch controllers
Hide thumbs Also See for PROVU Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
P
V
RO
U
Batch Controller Instruction Manual
 NTEP Certified Weighing and Measuring Device
 Mechanically Secured Programming Lockout
 Pulse, Open Collector, NPN, PNP, TTL, Switch Contact,
Sine Wave (Coil), Square Wave Inputs
 5, 10, or 24 V Flowmeter Power Supply
 K-Factor, Internal Scaling, or External Calibration
 Start, Batch, Pause, & Stop with Front Panel Buttons
 Display Batch Total + Rate, Grand Total, Batch Count or Preset
 Single or Multi-Stage Batching with up to 8 Relays
 Automatic Overflow Protection
 Manual Control or Automatic Batching
 Dual-Line Display
 NEMA 4X and IP65 Rated Front Panel
 UL Listed & CE Marked
 Display Features 0.6" & 0.46" Digits
 Six Full Digits on Each Line
 Superluminous Sunlight Readable Display
 Free USB Programming Software & Cable
 2 or 4 Relays + Isolated 4-20 mA Output Options
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
PD6310-WM NTEP Certified Pulse Input
P
V
R
U
S
ERIES
USB Install
Weights & Measures
www.predig.com
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROVU Series and is the answer not in the manual?

Questions and answers

Related Manuals for PRECISION DIGITAL PROVU Series

Summary of Contents for PRECISION DIGITAL PROVU Series

  • Page 1  Superluminous Sunlight Readable Display  Free USB Programming Software & Cable  2 or 4 Relays + Isolated 4-20 mA Output Options PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990...
