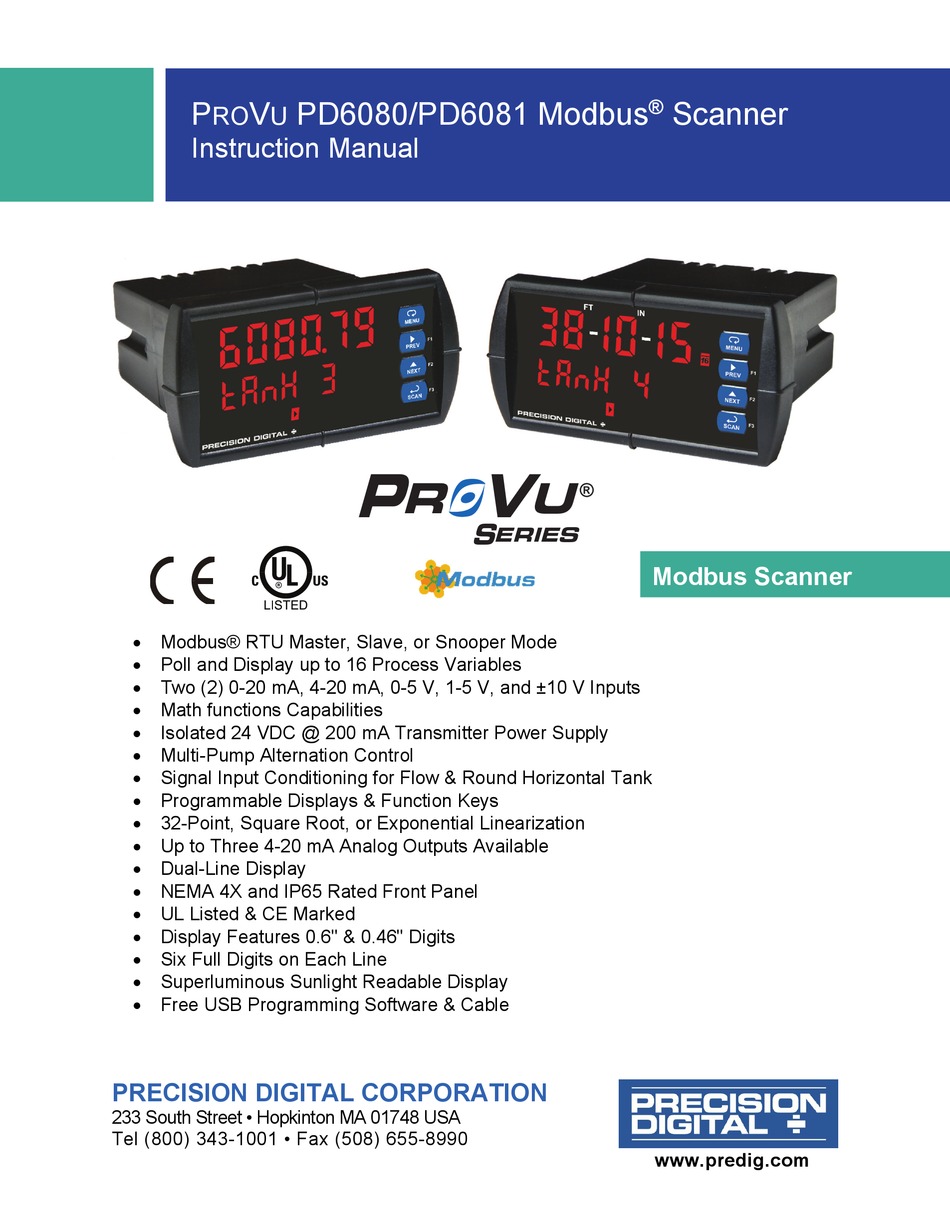

PRECISION DIGITAL PROVU Series Instruction Manual

Modbus scanner
Hide thumbs Also See for PROVU Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
P
V
RO
U
Instruction Manual
 Modbus® RTU Master, Slave, or Snooper Mode
 Poll and Display up to 16 Process Variables
 Two (2) 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs
 Math functions Capabilities
 Isolated 24 VDC @ 200 mA Transmitter Power Supply
 Multi-Pump Alternation Control
 Signal Input Conditioning for Flow & Round Horizontal Tank
 Programmable Displays & Function Keys
 32-Point, Square Root, or Exponential Linearization
 Up to Three 4-20 mA Analog Outputs Available
 Dual-Line Display
 NEMA 4X and IP65 Rated Front Panel
 UL Listed & CE Marked
 Display Features 0.6" & 0.46" Digits
 Six Full Digits on Each Line
 Superluminous Sunlight Readable Display
 Free USB Programming Software & Cable
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
PD6080/PD6081 Modbus
P
R
S
®
V
U
®
ERIES
Modbus Scanner
www.predig.com
Scanner
