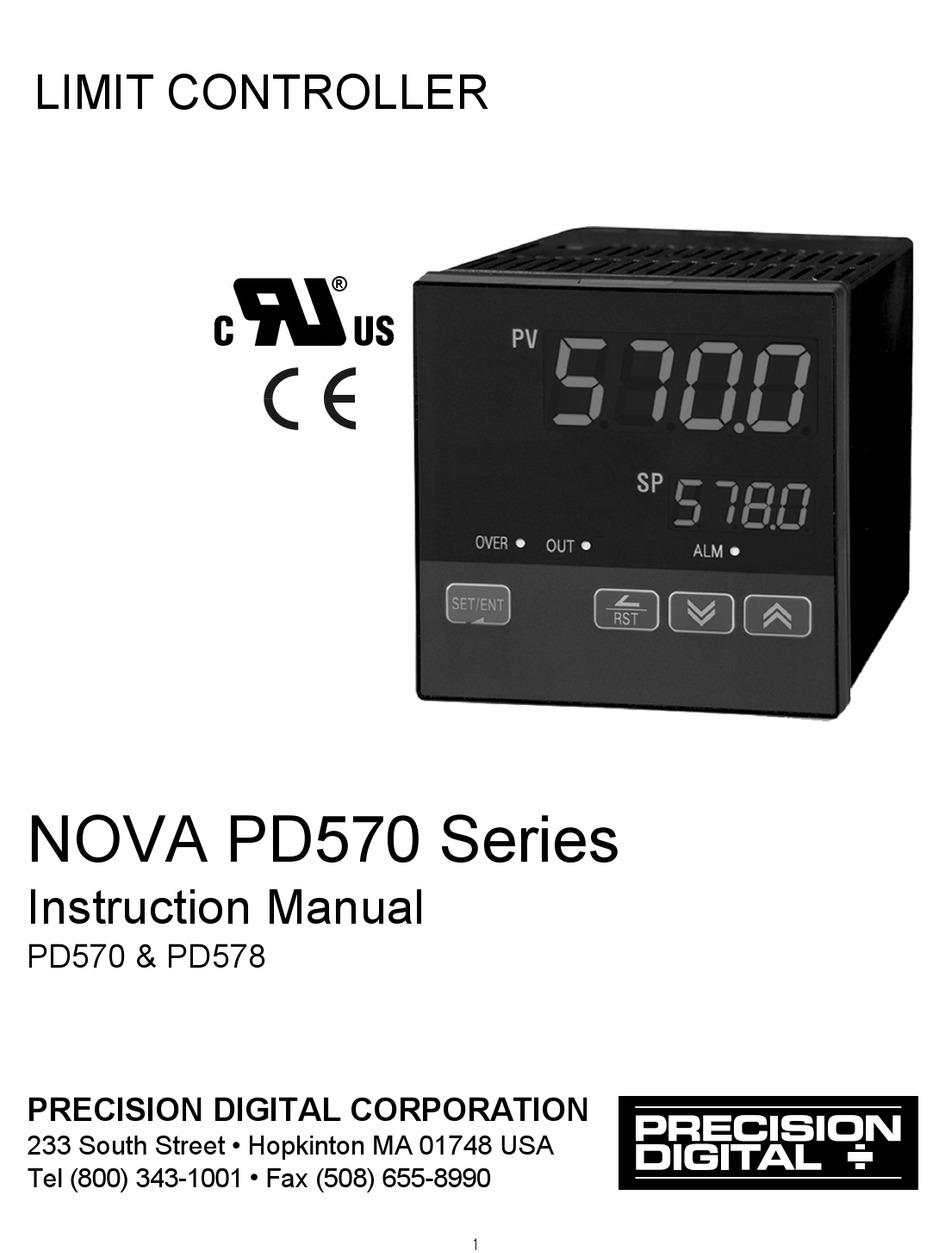

LIMIT CONTROLLER
®
NOVA PD570 Series
Instruction Manual
PD570 & PD578
PRECISION DIGITAL CORPORATION
233 South Street
Hopkinton MA 01748 USA
Tel (800) 343-1001
Fax (508) 655-8990
