Pressure sensor SDE1-...
Operating instructions
Original: de
Pressure sensor SDE1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
Product description
The operating instructions describe the entire function range. The function range is
limited, depending on the product variant.

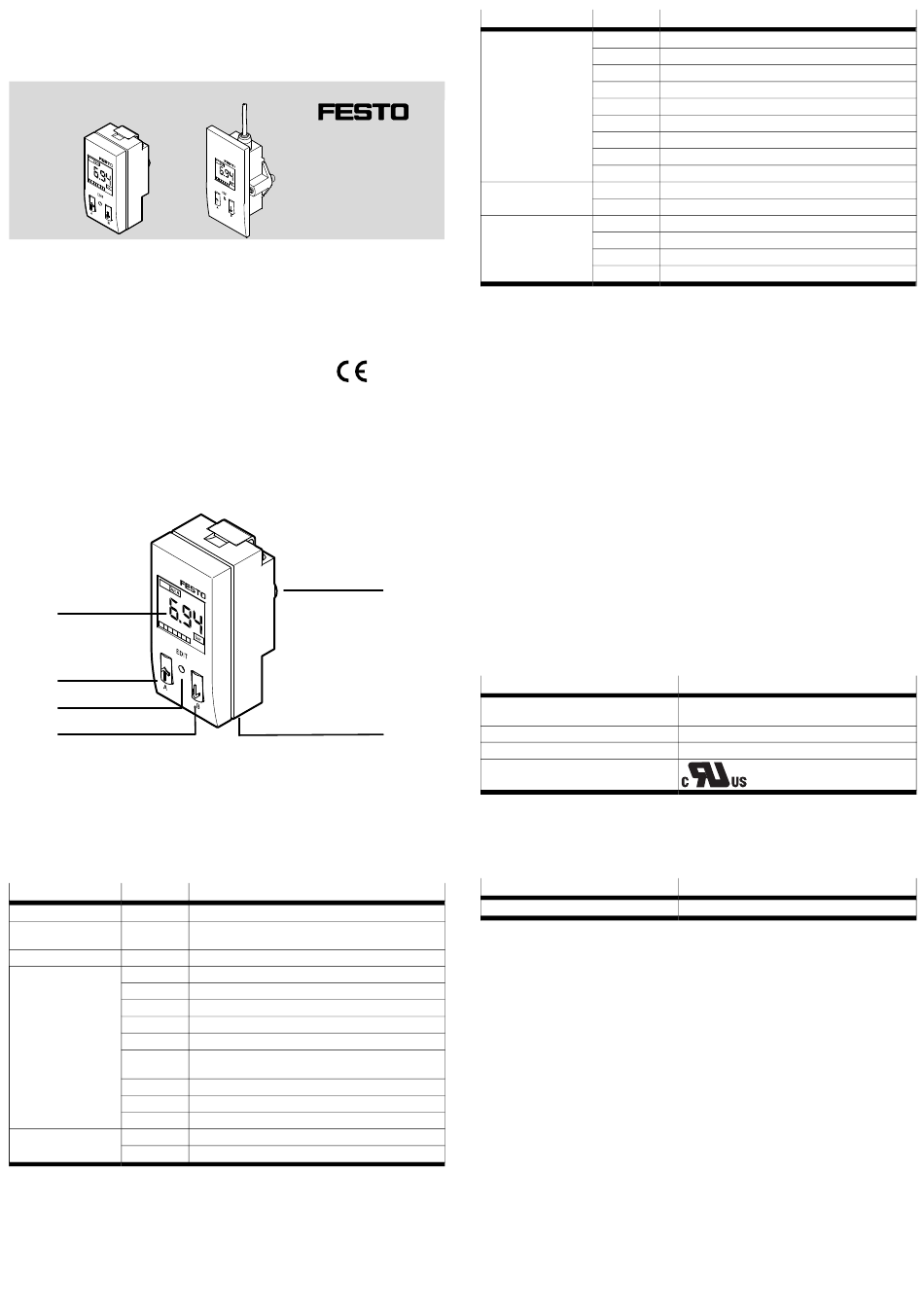

1.1 Structure
6
5
4
3
1
Pneumatic connection
(design type-dependent)
2
Electrical connection
(design type-dependent)
Fig. 1
1.2 Characteristics
Characteristic
Value
Type
SDE1
Pressure measuring
-V1, -B2, -D2,
range
-D6, -D10
Accuracy
-G2
1)
Pneumatic connection
-R18
and mounting
1)
-R14
-MS4
-MS6
-H18
-W18
-FQ4
-HQ4
-WQ4
Display
-C
-L
Festo AG & Co. KG
Postfach
73726 Esslingen
Germany
+49 711 347-0
www.festo.com
8048045
1511h
[8048047]
3
B key
4
Edit button
5
A key
6
Display
Description
Pressure sensor
è 11 Technical data
Accuracy 2 %
Male thread Rx
Male thread R¼
For adapting to MS4-series service units
For adapting to MS6-series service units
Relative pressure, female thread Gx, H-rail mounting
Relative pressure, female thread Gx, wall or surface
mounting
Push-in connector QS-4, front panel mounting
Push-in connector QS-4, H-rail mounting
Push-in connector QS-4, wall or surface mounting
LCD display with backlighting
Illuminated LCD display
Characteristic
Electrical output
Electrical connection
Electrical accessories
1) For example, for mounting on an MS- or D-series service unit
Fig. 2
2
Security
Intended use
The pressure sensor SDE1 is intended for monitoring pressure in piping or terminals.
General safety information
English
– The product may only be used in its original status without unauthorised modi­
fications.
– Only use the product if it is in an excellent technical status.
– The product is intended for use in industrial environments. Measures may need
to be implemented in residential areas for radio interference suppression.
– Take into consideration the operating conditions at the location of use.
– Observe the specifications on the rating plate.
– Comply with all applicable national and international regulations.
Disposal
– Observe the local specifications for environmentally friendly disposal.
1
Range of applications and certifications
In combination with the UL mark on the product, the information included in this
section is also applicable for compliance with the certification requirements of
Underwriters Laboratories Inc. (UL) for USA and Canada. Observe the following
English-language remarks from UL:
UL approval information
Product category code
2
File number
Considered standards
UL mark
Fig. 3
Only for connection to an NEC/CEC Class 2 supply.
Raccorder uniquement a un circuit NEC/CEC Classe 2.
Technical data
Max. surrounding air temperature
Fig. 4
This device is intended to be used with a Class 2 power source or Class 2 trans­
former in accordance with UL1310 or UL1585.
As an alternative, an LV/C (Limited Voltage/Current) power source with one of the
following properties can be used:
– This device shall be used with a suitable isolating source such that the maxim­
um open circuit voltage potential available to the product is not more than
30 V DC and the current is limited to a value not exceeding 8 amperes measured
after 1 minute of operation.
– This device shall be used with a suitable isolating source in conjunction with a
fuse in accordance with UL248. The fuse shall be rated max. 3.3 A and be in­
stalled in the 30 V DC power supply to the device in order to limit the available
current.
Note that, when more than one power supply or isolating device is used, connec­
tion in parallel is not permitted.
Code
Type designation
-P1
1 switching output PNP
-P2
2 switching outputs PNP
-PU
1 switching output PNP and 0...10 V analogue
-PI
1 switching output PNP and 4...20 mA analogue
-2I
2 switching outputs PNP and 4...20 mA analogue
-N1
1 switching output NPN
-N2
2 switching outputs NPN
-NU
1 switching output NPN and 0...10 V analogue
-NI
1 switching output NPN and 4...20 mA analogue
-M8
M8 plug connector
-M12
M12 plug connector
-G
Straight socket, cable 2.5 m
-G5
Straight socket, 5 m cable
-w
Angled plug socket, 2.5 m
-W5
Angled plug socket, 5 m cable
NRNT2 (USA)
NRNT8 (Canada)
E253738
UL 508, 17th edition, C22.2 No. 14-95
50 °C / 122 °F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDE1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Festo SDE1 Series

  • Page 1 1 switching output PNP and 4…20 mA analogue 2 switching outputs PNP and 4…20 mA analogue 1 switching output NPN 2 switching outputs NPN Festo AG & Co. KG 1 switching output NPN and 0…10 V analogue Postfach 1 switching output NPN and 4…20 mA analogue...
  • Page 2: Installation

    Function and application SDE1-…-H The pressure sensor SDE1 converts pneumatic pressure values into electrical sig­ nals. Measurements are carried out using a piezoresistive sensor element with a following electronic evaluation unit. Depending on the type, interfacing to the high­ er-level systems is provided by 1 or 2 switching outputs and an analogue output. Depending on the type and application, the differential pressure or relative pres­...
  • Page 3 Mounting sensor Circuit diagrams The sensor can be rotated 180°. SDE1-...-P2 SDE1-...-N2 • Check moulded seal (c) for proper seating. • Make sure the sealing surfaces between the sensor and adapter are clean. SDE1-...-PU-M8 SDE1-...-NU-M8 max. 1.0 Nm SDE1-...-PU-M12 SDE1-...-NU-M12 Fig.
  • Page 4 5.5 Configuring switching output (EDIT mode) Symbols on the display Description SDE1-…-C SDE1-…-L [lock] [lock] Security code active (blocked against unauthorized Note parameterisation) Segments illuminated: Graphic display of the cur­ Changing the switching behaviour of the switching outputs in the EDIT mode is rent measured value related to the maximum meas­...
  • Page 5: Operation

    Maintenance and care 1. Switch off the energy sources (operating voltage, compressed air). Accessories 2. Clean sensor with non-abrasive cleaning agents. Accessories è www.festo.com/catalogue Disassembly 1. Switch off the energy sources (operating voltage, compressed air). 2. Allow the sensor to cool off.
  • Page 6: 11 Technical Data

    Technical data Hole pattern SDE1- -D10 General information Certification RCM Mark, c UL us - Recognized (OL) CE marking (è Declaration of conformity) In accordance with EU EMC directive Note on materials Free of copper and PTFE RoHS compliant Input signal / measuring element Operating medium Compressed air in accordance with ISO 8573-1:2010 [7:4:4], lubricated operation...
