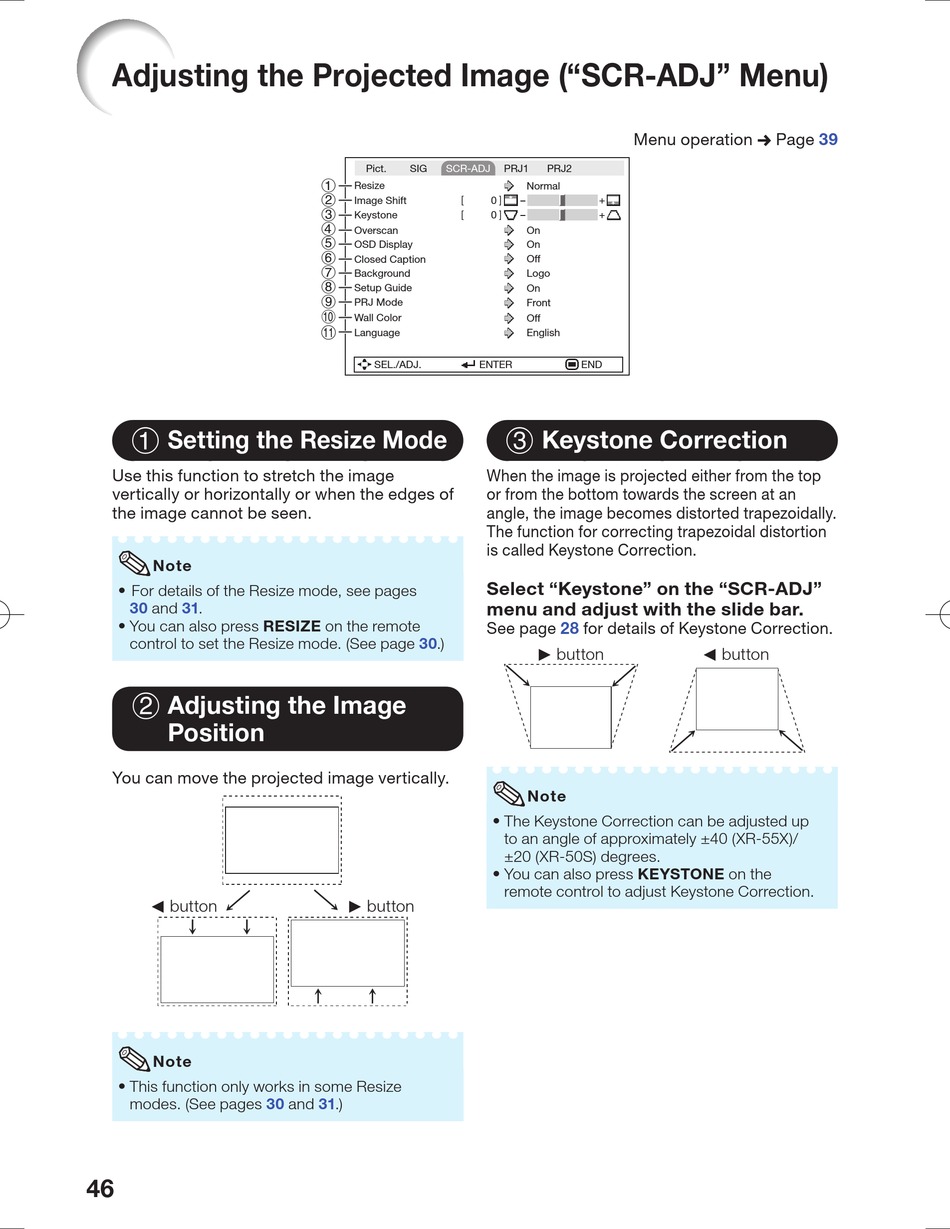

Adjusting the Projected Image ("SCR-ADJ" Menu)

1 Setting the Resize Mode

Use this function to stretch the image
vertically or horizontally or when the edges of
the image cannot be seen.
Note
• For details of the Resize mode, see pages
30 and 31.
• You can also press RESIZE on the remote
control to set the Resize mode. (See page 30.)
2 Adjusting the Image
Position
You can move the projected image vertically.
O button
Note
• This function only works in some Resize
modes. (See pages
46
Pict. SIG
1
Resize
2
Image Shift
3
Keystone
4
Overscan
5
OSD Display
6
Closed Caption
7
Background
8
Setup Guide
9
PRJ Mode
0
Wall Color
Language
SEL./ADJ.
Q button
30 and 31.)
SCR-ADJ PRJ1 PRJ2
Normal
0
0
On
On
Off
Logo
On
Front
Off
English
ENTER END

3 Keystone Correction

When the image is projected either from the top
or from the bottom towards the screen at an
angle, the image becomes distorted trapezoidally.
The function for correcting trapezoidal distortion
is called Keystone Correction.
Select "Keystone" on the "SCR-ADJ"
menu and adjust with the slide bar.
See page 28 for details of Keystone Correction.
Q button
Note
•
The Keystone Correction can be adjusted up
to an angle of approximately ±40 (XR-55X)/
±20 (XR-50S) degrees.
• You can also press KEYSTONE on the
remote control to adjust Keystone Correction.
