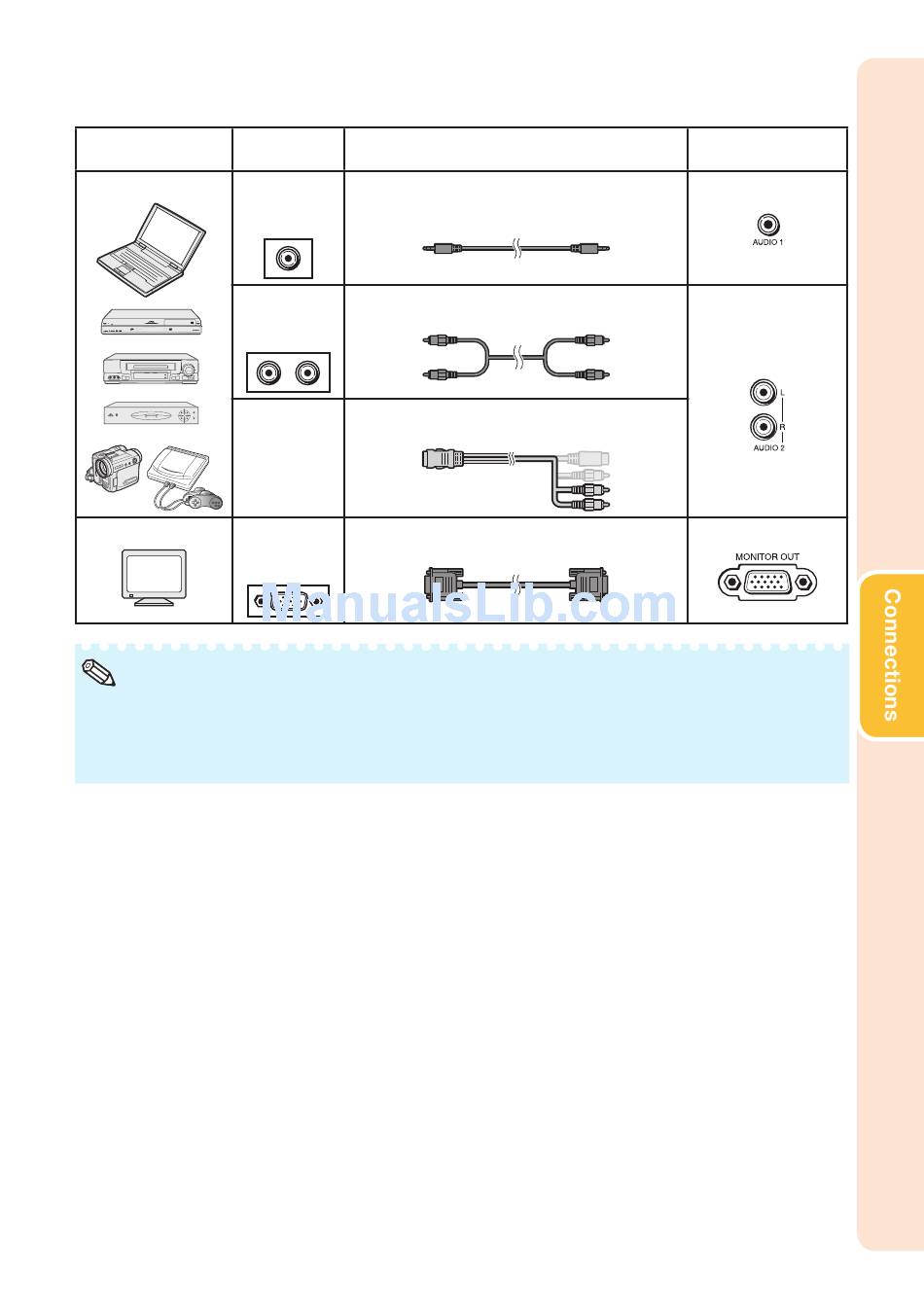

Equipment
connected equipment
Audio equipment
audio output
RCA audio
Monitor
Note
When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm
stereo audio cable.
You can select "Audio 1" or "Audio 2" in the INPUT list. (See page 29.)
RGB signals and Component signals can be output to the monitor.
Terminal on
ø3.5 mm
ø3.5 mm stereo or mono audio cable
(commercially available or available
terminal
as Sharp service part QCNWGA038WJPZ)
RCA audio cable (commercially available)
output
terminal
Cables for a camera or a video game
Audio
output
terminal
RGB
RGB cable (supplied or commercially
input
available)
terminal
Cable
Terminal on the
projector
AUDIO 1
AUDIO 2
MONITOR OUT
