Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS-
232C adaptor (optional, AN-A1RS) and an RS-232C serial control cable (cross type,
commercially available), the computer can be used to control the projector and check the status
of the projector. See page
When connecting to a computer using a DIN-D-sub RS-232C adaptor (optional,
AN-A1RS) and an RS-232C serial control cable
Note
• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the
operation manual of the computer for details.
• See pages 59 and
Info
• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This
may damage your computer or projector.
• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on.
This may damage your computer.

Connecting the Power Cord

Plug the supplied power cord into the
AC socket on the rear of the projector.
Then plug into AC outlet.
24
61 for details.

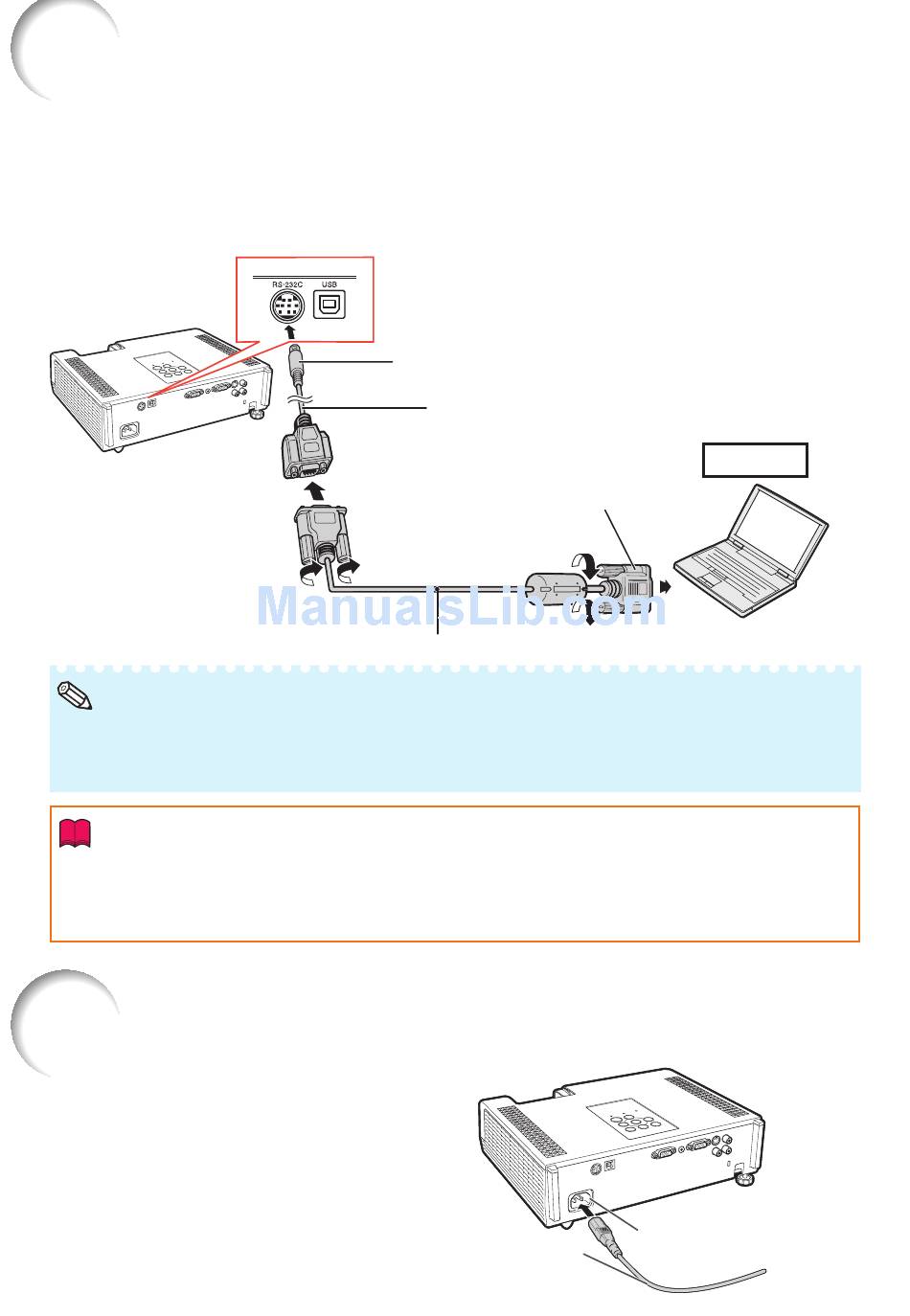

RS-232C serial control cable (cross type, commercially available)
60 for connection of an RS-232C serial control cable.
To RS-232C terminal
DIN-D-sub RS-232C
adaptor (optional, AN-A1RS)
To RS-232C terminal
Power cord Power cord
(supplied) (supplied)
Computer
AC socket AC socket
To AC outlet To AC outlet
