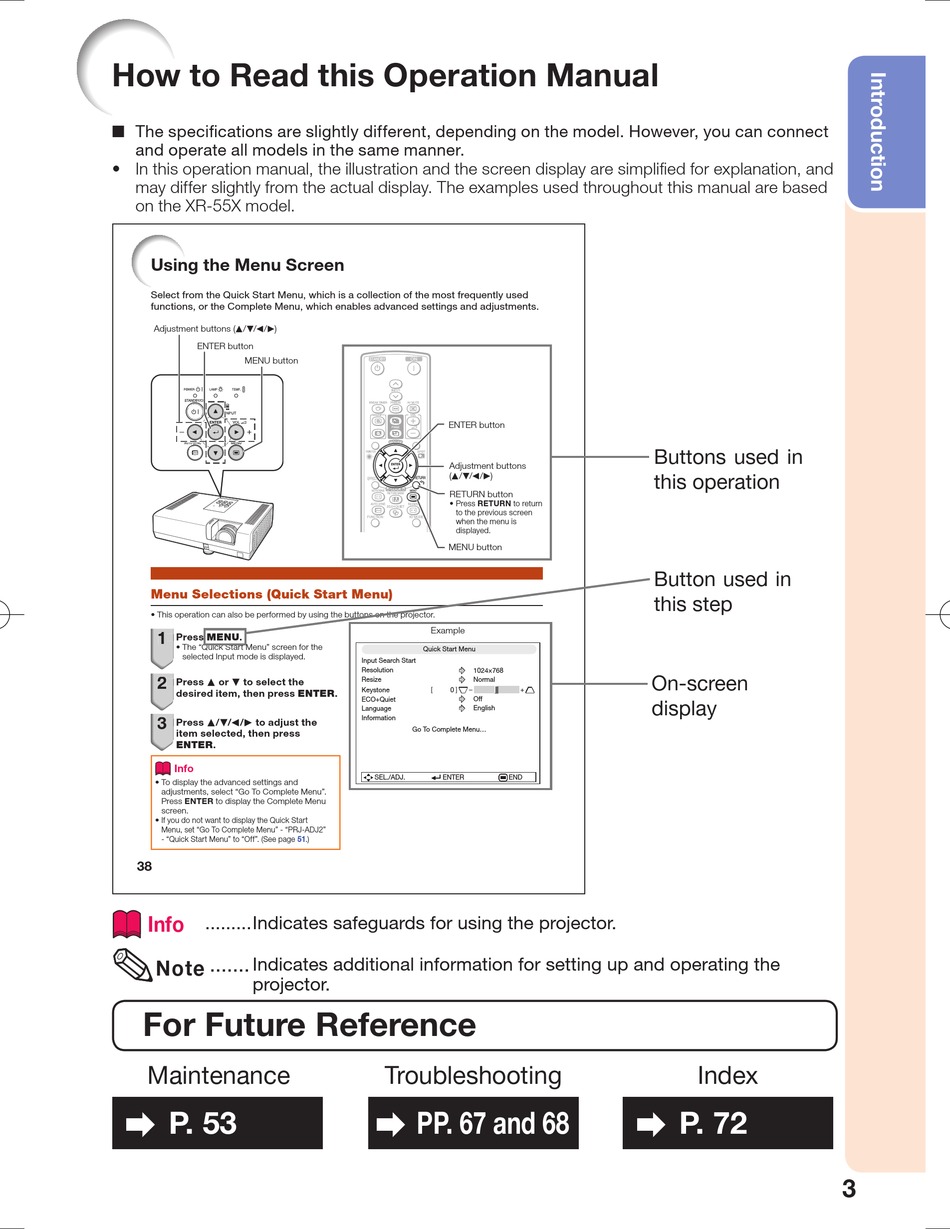

How to Read this Operation Manual

■
The specifi cations are slightly different, depending on the model. However, you can connect
and operate all models in the same manner.
• In this operation manual, the illustration and the screen display are simplifi ed for explanation, and
may differ slightly from the actual display. The examples used throughout this manual are based
on the XR-55X model.
Using the Menu Screen
Select from the Quick Start Menu, which is a collection of the most frequently used
functions, or the Complete Menu, which enables advanced settings and adjustments.
Adjustment buttons (P/R/O/Q)
ENTER button
MENU button
Menu Selections (Quick Start Menu)
• This operation can also be performed by using the buttons on the projector.
1 1
Press MENU.
• The "Quick Start Menu" screen for the
selected Input mode is displayed.
Press P or R to select the
2 2
desired item, then press ENTER.
Press P/R/O/Q to adjust the
3 3
item selected, then press
ENTER.
Info
• To display the advanced settings and
adjustments, select "Go To Complete Menu".
Press ENTER to display the Complete Menu
screen.
• If you do not want to display the Quick Start
Menu, set "Go To Complete Menu" - "PRJ-ADJ2"
- "Quick Start Menu" to "Off". (See page 51.)
38
.........Indicates safeguards for using the projector.
Info
Note .......
Indicates additional information for setting up and operating the
projector.

For Future Reference

Maintenance
P. 53
ENTER button
Adjustment buttons
(P/R/O/Q)
RETURN button
• Press RETURN to return
to the previous screen
when the menu is
displayed.
MENU button
Example
Quick Start Menu
Input Search Start
Resolution 1024×768
Normal
Resize
Keystone 0
ECO+Quiet Off
Language English
Information
Go To Complete Menu...
SEL./ADJ. ENTER END
Troubleshooting
PP. 67 and 68
Buttons used in
this operation
Button used in
this step
On-screen
display
Index
P. 72
3
