Image Projection (Continued)

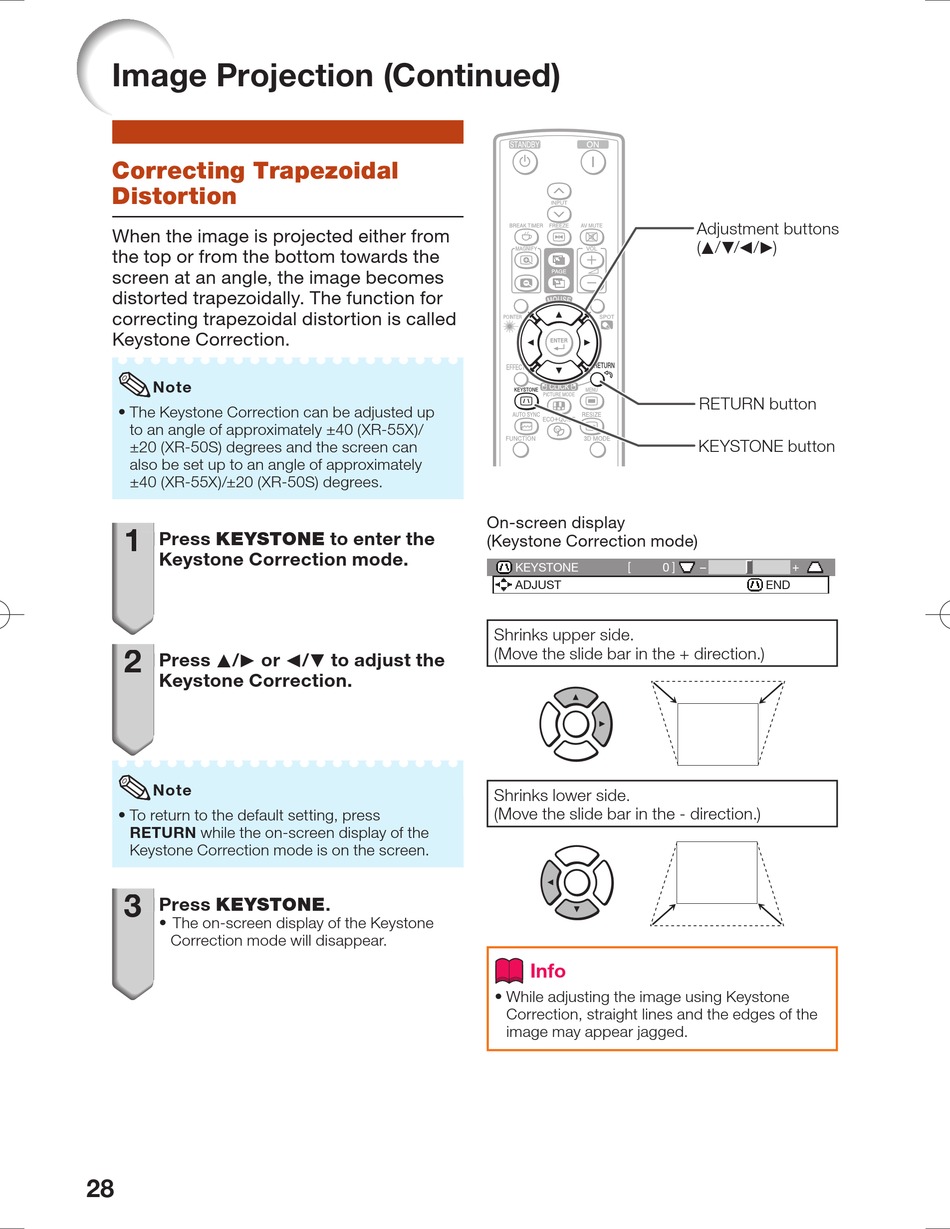

Correcting Trapezoidal
Distortion
When the image is projected either from
the top or from the bottom towards the
screen at an angle, the image becomes
distorted trapezoidally. The function for
correcting trapezoidal distortion is called
Keystone Correction.
Note
• The Keystone Correction can be adjusted up
to an angle of approximately ±40 (XR-55X)/
±20 (XR-50S) degrees and the screen can
also be set up to an angle of approximately
±40 (XR-55X)/±20 (XR-50S) degrees.
1 1
Press KEYSTONE to enter the
Keystone Correction mode.
2 2 Press P/Q or O/R to adjust the
Keystone Correction.
Note
• To return to the default setting, press
RETURN while the on-screen display of the
Keystone Correction mode is on the screen.
3 3
Press KEYSTONE.
• The on-screen display of the Keystone
Correction mode will disappear.
28
On-screen display
(Keystone Correction mode)
KEYSTONE
ADJUST
Shrinks upper side.
(Move the slide bar in the + direction.)
Shrinks lower side.
(Move the slide bar in the - direction.)
Info
• While adjusting the image using Keystone
Correction, straight lines and the edges of the
image may appear jagged.
Adjustment buttons
(P/R/O/Q)
RETURN button
KEYSTONE button
0
