Sharp Notevision XR-50S Operation Manual page 18

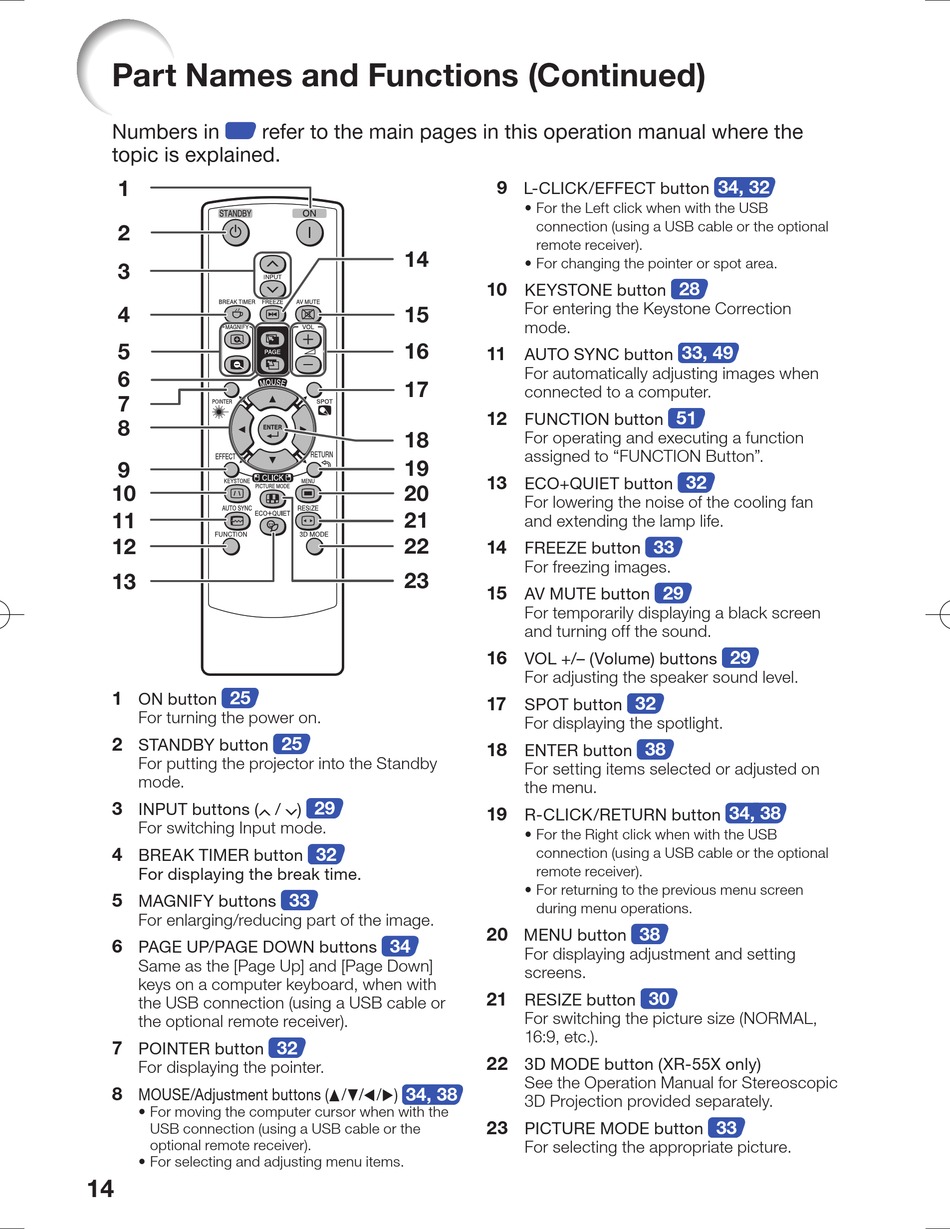

Part Names and Functions (Continued)
Z
Numbers in
topic is explained.
1
2
3
4
5
6
7
8
9
10
11
12
13
25
1
ON button
For turning the power on.
2
STANDBY button
For putting the projector into the Standby
mode.
3
INPUT buttons ( / )
For switching Input mode.
4
BREAK TIMER button
For displaying the break time.
5
MAGNIFY buttons
For enlarging/reducing part of the image.
6
PAGE UP/PAGE DOWN buttons
Same as the [Page Up] and [Page Down]
keys on a computer keyboard, when with
the USB connection (using a USB cable or
the optional remote receiver).
7
POINTER button
For displaying the pointer.
8
MOUSE/Adjustment buttons (P/R/O/Q)
• For moving the computer cursor when with the
USB connection (using a USB cable or the
optional remote receiver).
• For selecting and adjusting menu items.
14
refer to the main pages in this operation manual where the
14
15
16
17
18
19
20
21
22
23
25
29
32
33
34
32
34, 38
9
L-CLICK/EFFECT button
• For the Left click when with the USB
connection (using a USB cable or the optional
remote receiver).
• For changing the pointer or spot area.
10
KEYSTONE button
For entering the Keystone Correction
mode.
11
AUTO SYNC button
For automatically adjusting images when
connected to a computer.
12
FUNCTION button
For operating and executing a function
assigned to "FUNCTION Button".
13
ECO+QUIET button
For lowering the noise of the cooling fan
and extending the lamp life.
14
FREEZE button
For freezing images.
15
AV MUTE button
For temporarily displaying a black screen
and turning off the sound.
16
VOL +/– (Volume) buttons
For adjusting the speaker sound level.
17 32
SPOT button
For displaying the spotlight.
18
ENTER button
For setting items selected or adjusted on
the menu.
19
R-CLICK/RETURN button
• For the Right click when with the USB
connection (using a USB cable or the optional
remote receiver).
• For returning to the previous menu screen
during menu operations.
20 38
MENU button
For displaying adjustment and setting
screens.
21
RESIZE button
For switching the picture size (NORMAL,
16:9, etc.).
22
3D MODE button (XR-55X only)
See the Operation Manual for Stereoscopic
3D Projection provided separately.
23
PICTURE MODE button
For selecting the appropriate picture.
34, 32
28
33, 49
51
32
33
29
29
38
34, 38
30
33
