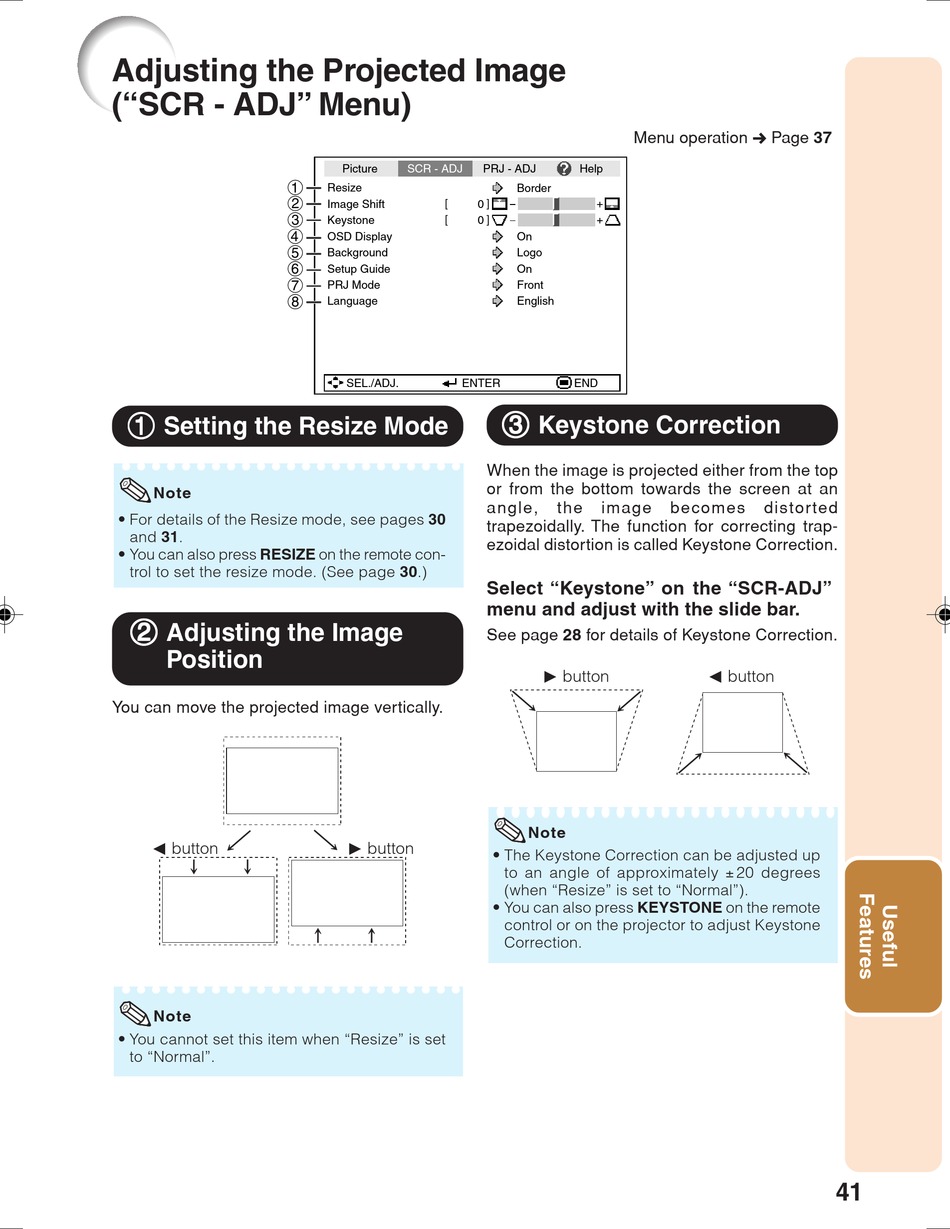

Adjusting the Projected Image
("SCR - ADJ" Menu)

1 Setting the Resize Mode

1 1
1 1
Note
• For details of the Resize mode, see pages 30
and 31.
• You can also press RESIZE on the remote con-
trol to set the resize mode. (See page 30.)
2 Adjusting the Image
2 2
2 2
Position
You can move the projected image vertically.
O button
Note
• You cannot set this item when "Resize" is set
to "Normal".
Picture SCR - ADJ
1 Resize
2
Image Shift
3
Keystone
4
OSD Display
5 Background
6 Setup Guide
7 PRJ Mode
Language
8
SEL./ADJ.
Q button
PRJ - ADJ Help
Border
0
0
On
Logo
On
Front
English
ENTER END

3 Keystone Correction

3 3
3 3
When the image is projected either from the top
or from the bottom towards the screen at an
angle, the image
trapezoidally. The function for correcting trap-
ezoidal distortion is called Keystone Correction.
Select "Keystone" on the "SCR-ADJ"
menu and adjust with the slide bar.
See page 28 for details of Keystone Correction.
Q button
Note
• The Keystone Correction can be adjusted up
to an angle of approximately ± 20 degrees
(when "Resize" is set to "Normal").
• You can also press KEYSTONE on the remote
control or on the projector to adjust Keystone
Correction.
Menu operation n Page 37
becomes distorted
O button
41
