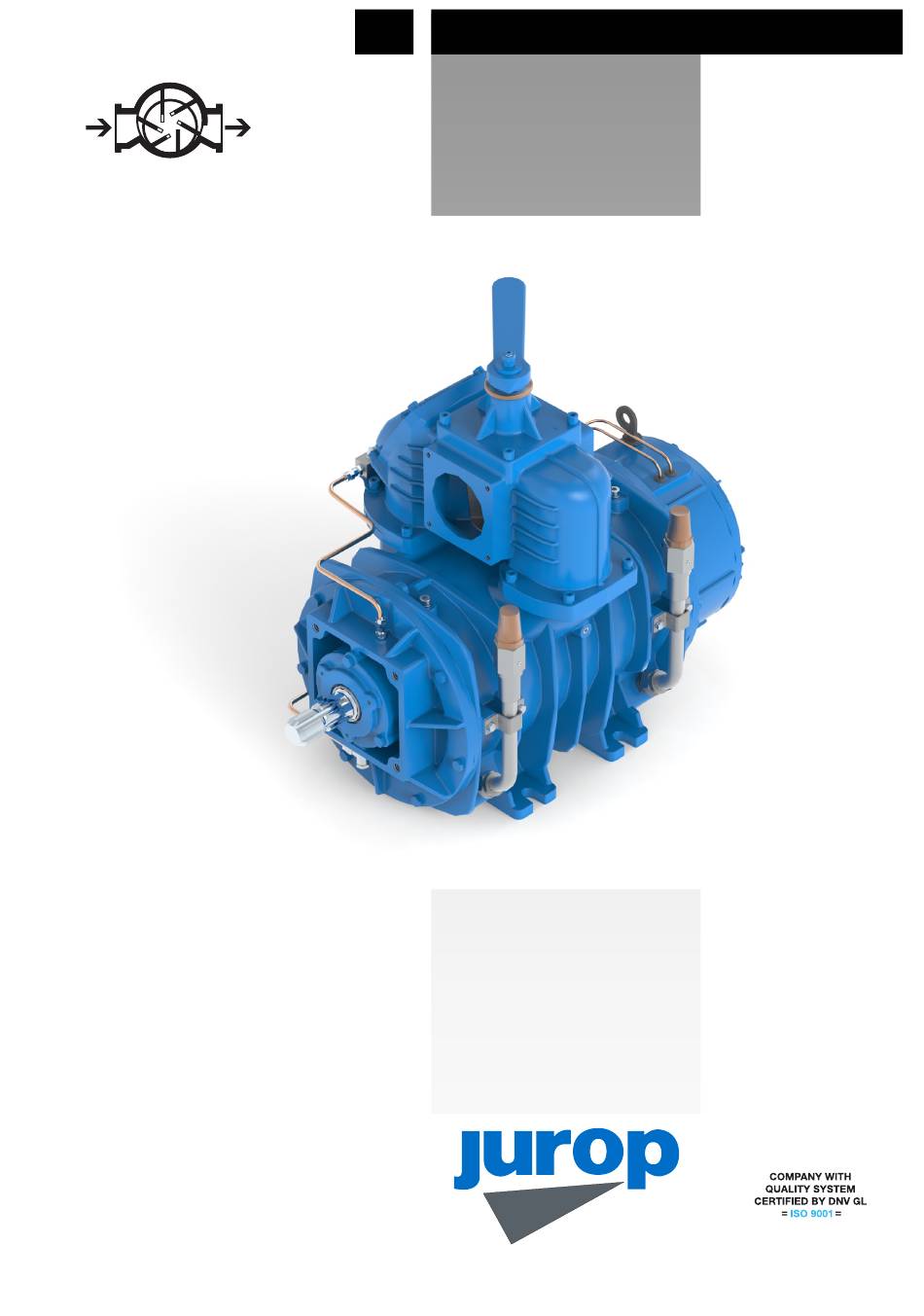

  • Page 1 PNR/PNE 104-124 - PNR 142SL Rev. 01 19-07-2016...
  • Page 2 2016 – Jurop – Azzano Decimo (PN) Reproduction, electronic storage and dissemination, even partial, are prohibited. Jurop reserves the right to modify the products described in this manual without prior notice. Any product names mentioned herein are the trademarks of their respective owners.

  • Page 3: Table Of Contents

    . 28 PARE PART DATA SHEET HDR E ACCESS – PNR 142 PARE PART DATA SHEET HDR E ACCESSORIES Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 3 / 32 e-mail: info@jurop.it...

  • Page 4: General Warnings

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 1. General warnings 1.1. Introduction 1.2. Spare part request • This booklet contains the necessary instructions for a correct • Use only genuine spare parts for maintenance and repairs. To...

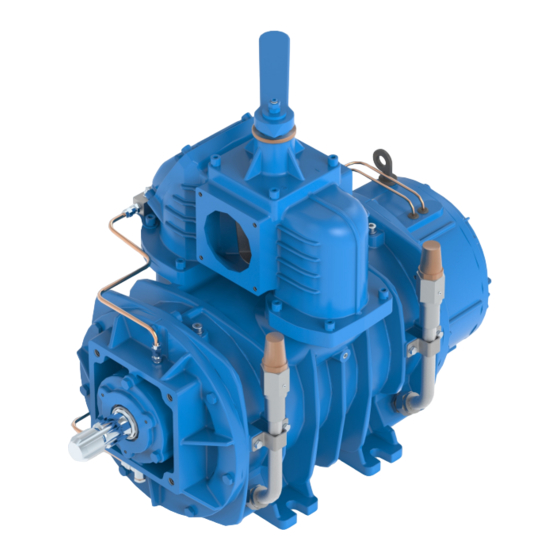

  • Page 5: Technical Data

    • Sliding vanes vacuum pump injection cooled (PNR) or natural air-cooling (PNE). The PNR version is meant for heavy duty; the PNE version for normal use. • Forced oil lubrication of both bearings and sealings. Copper oil piping. Rear oil tank (PNE/PNR 104-124). Side oil tank (PNR142). • Manifold with non-return valve on the pump inlet.

  • Page 6: Dimensions And Arrangements

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 Dimensions and arrangements WEIGHT PNR/PNE 104 PNR/PNE 124 PNR 142 SL Direct transmission (smooth or splined shaft) 150 Kg 177 Kg 210 Kg Gearbox transmission (540 rpm)
  • Page 7 1” ¼ PNR124 16,5 PNR 142 Side oil tank PNR142 M (540-1000 PNR142 D PNR142 HDR Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 7 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 8: Performances

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 Performances Performances PNR/PNE 104 D PNR/PNE 104 M PNR/PNE 104 HDR Maximum speed 1300 rpm 540 - 1000 rpm 1300 rpm Air flow at free air condition 10400 l/min - 624 m³/h...

  • Page 9: Sound Pressure Level

    Blasia 220 Spartan EP 220 Omala oil 220 Carter EP 220 Mobilgear 630 Energol GR XP 220 Meropa 220 Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 9 / 32 e-mail: info@jurop.it...

  • Page 10: Safety And Accident Prevention

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 3. Safety and accident prevention • Do not start the machine if the protection devices provided for Attention: carefully apply these prescriptions. transmissions are removed. Replace damaged part.

  • Page 11: Checking Upon Receipt

    The oil used for the pump’s inside lubrication has to be separated from the exhausted air by means of an adequate oil-separator, placed directly inside the silencer. Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it...

  • Page 12: Hydraulic Actuator Adjustment

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 The silencer is fitted also with a draining tap for the collected oil and condensed liquids. • Over-pressure safety relief valve (Pic. 4.2 - pos. 5). It must be dimensioned to discharge the entire air-flow of the pump.
  • Page 13 • Draining: connect directly to the tank above the maximum oil level. Operating without draining line may damage the motor. Pic. 4.8 Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 13 / 32 e-mail: info@jurop.it...

  • Page 14: Start Up

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 • Distributor: open-centre distributor in central idle position Hdr pump Oil filter (vacuum pump off). It must be equipped with an adjustable Distributor Heat exchanger overpressure safety valve.

  • Page 15: Maintenance

    At lower speeds, the pump inside according to the procedure described at paragraph 5.2. number of drops must be directly proportional. Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it...

  • Page 16: Extraordinary Maintenance

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 If the pump is running without lubrication, the internal components may quickly damaged due to overheating. Stop the vacuum pump and check the oil level and the lubricating pump.

  • Page 17: Jurop Spa

    • The new vanes have to be inserted with the rounded corner facing • Replace the plug on the tank (pos. 1) and refill it with lubrication towards the housing (See Pic. 6.5). oil. Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n°...

  • Page 18: Jurop Spa

    . 01 – PNR/PNR 104-124 – PNR 142 NSTALLATION USE AND MAINTENANCE MANUAL 19-07-2016 Assemble operation Remove the upper protection cover; Using a screwdriver and a 10 mm wrench, adjust the adjusting • Reassemble everything again in the right sequence, absolutely screw (K).

  • Page 19: Malfunctions: Troubleshooting

    Do not dispose of in the environment. Dispose of Rubber and plastic parts, such as hoses. • in compliance with the standards in force. Steel and aluminium parts. • Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 19 / 32 e-mail: info@jurop.it...

  • Page 20: Spare Part Data Sheet - Pnr/Pne 102-124 D

    . 01 – PNR/PNE 104-124 D PARE PART DATA SHEET 19-07-2016 PNR/PNE 104-124 D Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 20 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 21: Jurop Spa

    PNR/PNE 104-124 D Pos. Codice Descrizione Q.tà Pos. Codice Descrizione Q.tà 1493300200 AIR INJECTION VALVE 1/2'' 16807009E0 GASKET 1601605900 VANE PNR 104 16807010E0 GASKET 1601606000 VANE PNR 124 16807011E0 GASKET 1601605500 VANE PNE 104 1680707300 GASKET 1601605600 VANE PNE 124 1680707700...

  • Page 22: Spare Part Data Sheet - Pnr/Pne 102-124 Multiplier

    . 01 – PNR/PNE 104-124 M PARE PART DATA SHEET 19-07-2016 PNR/PNE 104-124 CON MOLTIPLICATORE Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 22 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 23: Jurop Spa

    Pos. Code Description Q.ty Pos. Code Description Q.ty 1493300200 AIR INJECTION VALVE 1/2'' 1680707700 GASKET 1601605900 VANE PNR 104 1680707800 GASKET 1601606000 VANE PNR 124 1683600300 OIL STICK 1601605500 VANE PNE 104 1684000000 PLUG 3/8 1601605600 VANE PNE 124 1685002800 WASHER 30X8,5 SP.4 GALV.

  • Page 24: Spare Part Data Sheet - Pnr 142 D

    . 01 – PNR 142 D PARE PART DATA SHEET 19-07-2016 PNR 142 D Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 24 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 25: Jurop Spa

    WASHER M8 4026102807 SCREW M8X25 4026102807 SCREW M8X25 4026135504 SCREW M10X10 4026135504 SCREW M10X10 Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 25 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 26: Spare Part Data Sheet - Pnr 142 Multiplier

    . 01 – PNR 142 M PARE PART DATA SHEET 19-07-2016 PNR 142 WITH MULTIPLIER Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 26 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 27: Jurop Spa

    PLUG 1687509500 HOUSING PNR 142 SL 4026910103 PLUG 1687600000 OIL TANK 4026910601 PLUG 1/8' Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 27 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 28: Spare Part Data Sheet - Pnr/Pne 102-124 Hdr E Access

    4022200310 4026904003 PLUG 1" GALV. 4026102808 SCREW TE M8X30 GALV. 4026350706 WASHER GROWER M8 GALV. Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 28 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 29: Spare Part Data Sheet - Pnr 142 Hdr E Accessories

    . 01 – PNR 142 19-07-2016 PARE PART DATA SHEET AND ACCESSORIES PNR 142 HDR AND ACCESSORIES Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 29 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 30: Jurop Spa

    RING NUT 168529TFB0 SPACER 1691000200 CONVEYOR SPRING 4022100100 IGREASING NIPPLE M6X1 4022200005 Y-SEAL 37X27X7 Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 30 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 31: Jurop Spa

    . 01 19-07-2016 Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n° 50 31 / 32 e-mail: info@jurop.it 33082 Azzano Decimo, PN (Italia)

  • Page 32: Jurop Spa

    33082 Azzano Decimo, PN (ITALY) Tel. +39 0434 636811 Fax. +39 0434 636812 http://www.jurop.it e-mail: info@jurop.it Jurop SpA reserves the right to modify the products described in this manual without prior notice. Jurop SpA . +39 0434 636811 F . +39 0434 636812 http://www.jurop.it Via Crosera n°...
