OPERATING AND
MAINTENANCE
INSTRUCTIONS
www.fraserwoods.ca

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PN155 R and is the answer not in the manual?

Questions and answers

Summary of Contents for jurop PN155 R

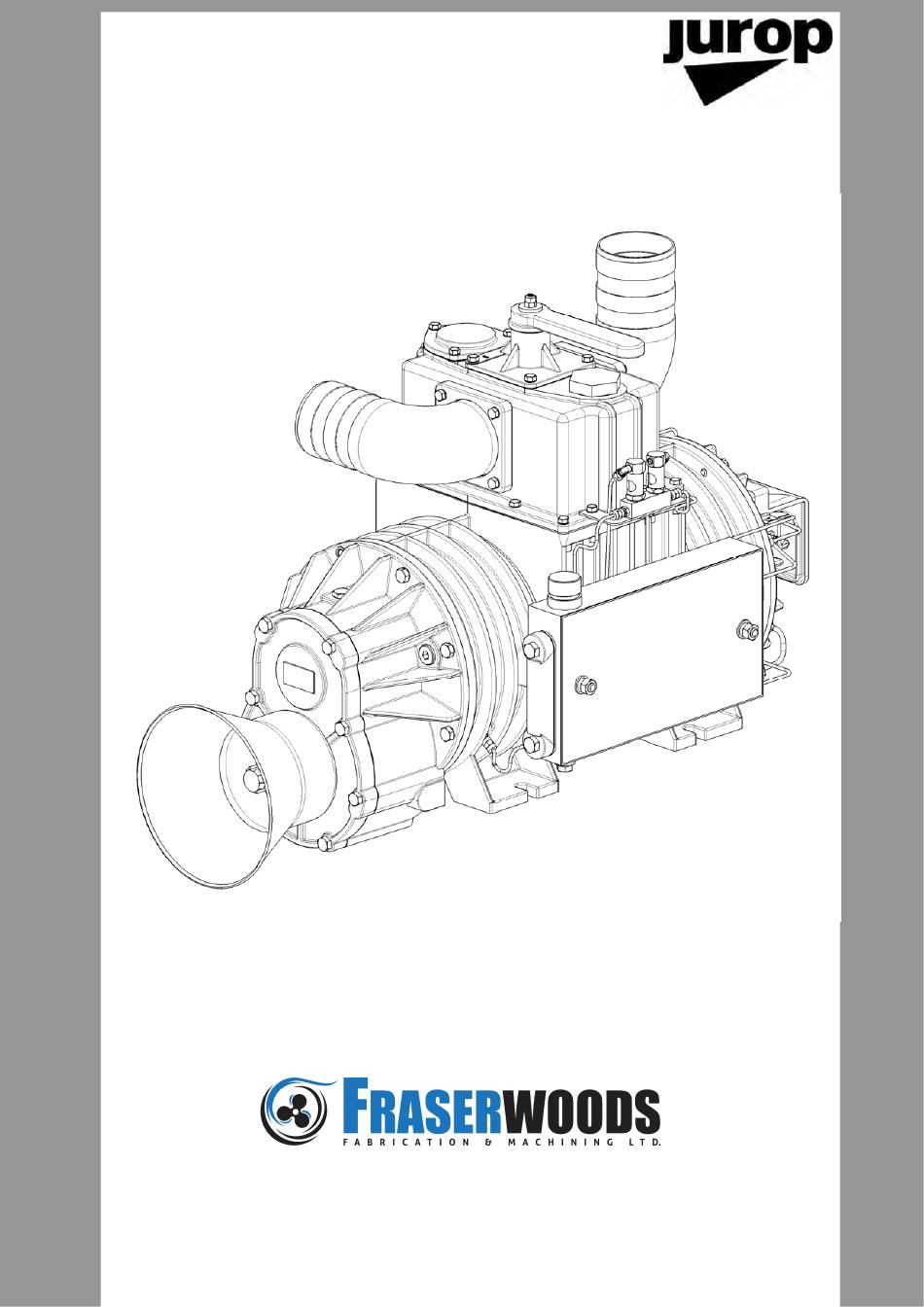

  • Page 1 PN 155 OPERATING AND MAINTENANCE PN 155 R INSTRUCTIONS Authorized Jurop Distributor, Service & Repair Facility 120 – 10293 276 ST, Acheson, Alberta, Canada T7X 6A5 T: 780.962.1827 F: 780.962.1830 E: sales@fraserwoods.ca www.fraserwoods.ca...
  • Page 2 www.fraserwoods.ca INDEX 1. INTRODUCTION 2. DIMENSIONS 3. FEATURES 4. NORMAL USE 5. USAGE LIMITATIONS 6. PERFORMANCES 7. SAFETY AND ACCIDENTS PREVENTION 8. INSTALLATION Checking upon receipt Mounting Vacuum – pressure line 9. DRIVE Cardan shaft drive Belt drive Hydraulic drive Precautions when starting the system 10.
  • Page 3 • the booklet be kept in a place at hand known by all users. 2. DIMENSIONS PN155 – PN155 R PN155 D left splined shaft (A350709410) PN155 D smooth shaft, L rotation (A350909410) PN155 D smooth shaft, R rotation (A350809410)
  • Page 4 www.fraserwoods.ca PN155 M 540 rpm, left rotation (A353209410) PN155 M 1000 rpm, left rotation (A353509410) PN155R M 540 rpm, left rotation (A363209410) PN155R M 1000 rpm, left rotation (A363509410) PN155 HDR, right rotation (E3508109410) PN155R HDR, right rotation (E3608109410) HDR MOTOR FEEDING Motor Displacement Operating Pressure Max.
  • Page 5: Normal Use

    www.fraserwoods.ca PN155 FL 540 rpm, left rotation (A353219410) NOTE. The vacuum pump PN155 may be equipped with aluminium conveyors. Kit fixed conveyor Ø100 with valve connection: cod. 18521 035 00 Kit swivelling conveyor Ø100: cod. 18521 040 00 Kit valve connection: cod. 18521 041 00 •...
  • Page 6: Usage Limitations

    15200 PN155 60 % condition) Vacuum at continuous duty Air flow at 60% vac. l/min 13500 PN155 R 70 % Max. vacuum Oil consumption Power required at max. Sound pressure level ** dB (A) vacuum Power required at 2 abs...
  • Page 7: Installation

    www.fraserwoods.ca • Do not start the machine if the protection devices provided for transmissions are removed. Replace damaged parts. • Pressure relief valve: point the air flux away from the operators. • Do not use the aspirator over its designed limits: the machine may be damage and the operator may be injured.
  • Page 8: Checking Upon Receipt

    www.fraserwoods.ca CHECKING UPON RECEIPT • When the goods are delivered, make sure that all parts listed on the delivery note are in perfect condition and have suffered no damage during shipping. • Make sure the vacuum pump has its identification plate affixed on the front cover. Pumps without such identification are to be considered anonymous and potentially dangerous: in such an event, they must not be used, otherwise the manufacturer will be deemed free from any liability whatsoever.
  • Page 9: Cardan Shaft Drive

    www.fraserwoods.ca • Max. pressure safety valve on delivery: mount it close to the pump. The valve flow must prevent the PN155 from exceeding the absolute operating pressure (see par. “Usage limitations”) or, in any case, the maximum pressure allowed by the system. Do not apply gate valves on the line. •...
  • Page 10: Belt Drive

    www.fraserwoods.ca BELT DRIVE CHECK BELT TENSION 3300 N KEEP AXELS PARALLEL ALIGN PULLEY GROVES AND BELTS 35 MAX • Install a suitable pulley on the smooth shaft as close as possible to the pump: max 35 mm. • Apply an adequate belt tension (see manufacturer’s data). Max 3000N. •...
  • Page 11: Precautions When Starting The System

    www.fraserwoods.ca • Filtration: class 19/16 contamination according to ISO 4406 DRAINING to be obtained with a ßx = 75 filter PORT • Check circuit connections: they must be applied in the same rotation direction as that indicated by the arrow on the pump front flange.
  • Page 12: Operating Precautions

    www.fraserwoods.ca Check which position of the four-way integrated valve lever allows vacuum or pressure functioning. Close the valve and increase vacuum rate (or operating pressure). Check that the lubricating pump works properly. Oil must regularly drip into the oilers. Typically 35 drops/min (at maximum speed).
  • Page 13: Ordinary Maintenance

    www.fraserwoods.ca 11. ORDINARY MAINTENANCE Before starting any maintenance operation, follow the safety prescriptions as described in paragraph “Safety and accidents prevention”. PUMP OPERATION CHECKING FREQUENCY CONDITION Lubrication: dripping into oilers OPERATING Rotating speed Working pressure Side mounted tank oil level Clean filter and vacuum line shutoff.
  • Page 14: Checking The Vanes Wear

    www.fraserwoods.ca CHECKING THE VANES WEAR • Unscrew the vanes wear check-plug on the housing. • Turn the shaft until you see the vane. • The vanes should slide to the bottom of the seat due to gravity: check they really do. Replace the vanes when their wear exceeds 10 mm (L –...
  • Page 15: Replacing The Vanes

    www.fraserwoods.ca REPLACING THE VANES • Remove the vacuum pump from its bearing frame and wash it before disassembling. • Disconnect the lubricating piping. Remove the screws fixing the rear flange and use the two threaded holes to remove the flange – bearing – seal housing. If necessary, hold the rotor by inserting a wooden block, protecting the internal bearings from damage.
  • Page 16: Troubleshooting

    www.fraserwoods.ca 13. TROUBLESHOOTING The vacuum pump overheats Insufficient or absent lubrication Verify oil and rings. Check oil pump efficiency Low tank oil level Fill tank with oil Excessive rotation speed Reduce rpm to the prescribed working speed Prolonged functioning at max vacuum rate Reduce vacuum rate Vacuum and/or exhaust line of insufficient diameter Check dimensioning...
  • Page 17: Spares Parts

    Find on the suction plate: • model • serial number (Es. : LC 420 ; H60013 Authorized Jurop Distributor, Service & Repair Facility 120 – 10293 276 ST, Acheson, Alberta, Canada T7X 6A5 T: 780.962.1827 F: 780.962.1830 E: sales@fraserwoods.ca www.fraserwoods.ca...
