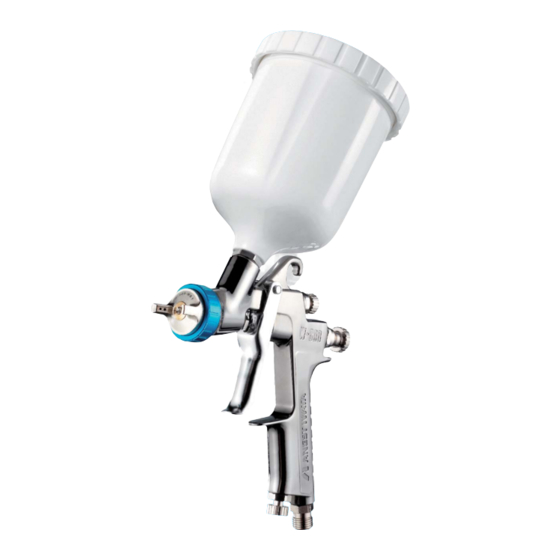

Anest Iwata GRAVITY Series Use And Maintenance Instruction Manual
Hide thumbs
Also See for GRAVITY Series:
- Use and maintenance instruction manual (55 pages) ,
- Use and maintenance instruction manual (16 pages) ,
- Use and maintenance instruction manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Anest Iwata GRAVITY Series
Summary of Contents for Anest Iwata GRAVITY Series
- Page 1 USE and MAINTENANCE INSTRUCTION MANUAL • W-300 G R A V I T Y • W-300 WB SPRAY GUN • LPH-300...
-
Page 2: Technical Data
W-300 _ W-300 WB High T.E.C | LPH-300 (LVLP TECHNICAL DATA High T.E.C. series Nozzle_Needle set Combination Fluid Nozzle Fluid Needle W-300-081G Size Mark Mark W-300-101G 100* 0.8 (0.031) W101/08 30008 W-300-132G 160* 1.0 (0.039) W101/10 1.3 (0.051) W101/13 10013 W-300 WB -101G 1.0 (0.039) W300WB/08... -
Page 3: Technical Specifications
1. Never point gun towards people or animals. This manual must be stored in a safe place for any future reference. 2. Never exceed maximum working pressure or maximum operating This ANEST IWATA spray guns kit complies Temperature 2014/34/EU to ATEX regulations Protection level: II 2G X Suitable for using Zones 1 and 2. -
Page 4: Maintenance And Inspection
(20) in the gun body. - Never remove baffle ring from gun body. - Never use spare parts that are not ANEST IWATA originals. - If you tighten fluid needle packing set (20) too much, fluid needle set - Never damage fluid nozzle tip, fluid needle or air cap holes. -
Page 5: Troubleshooting
W-300 _ W-300 WB High T.E.C | LPH-300 (LVLP 6. TROUBLESHOOTING 7. SPARE PARTS LIST GUN DOES NOT SPRAY - Fluid adj. knob (12) closed. Check and adjust. - Tip hole of nozzle obstructed. Check and clean. - Paint filter obstructed. Check and clean.
