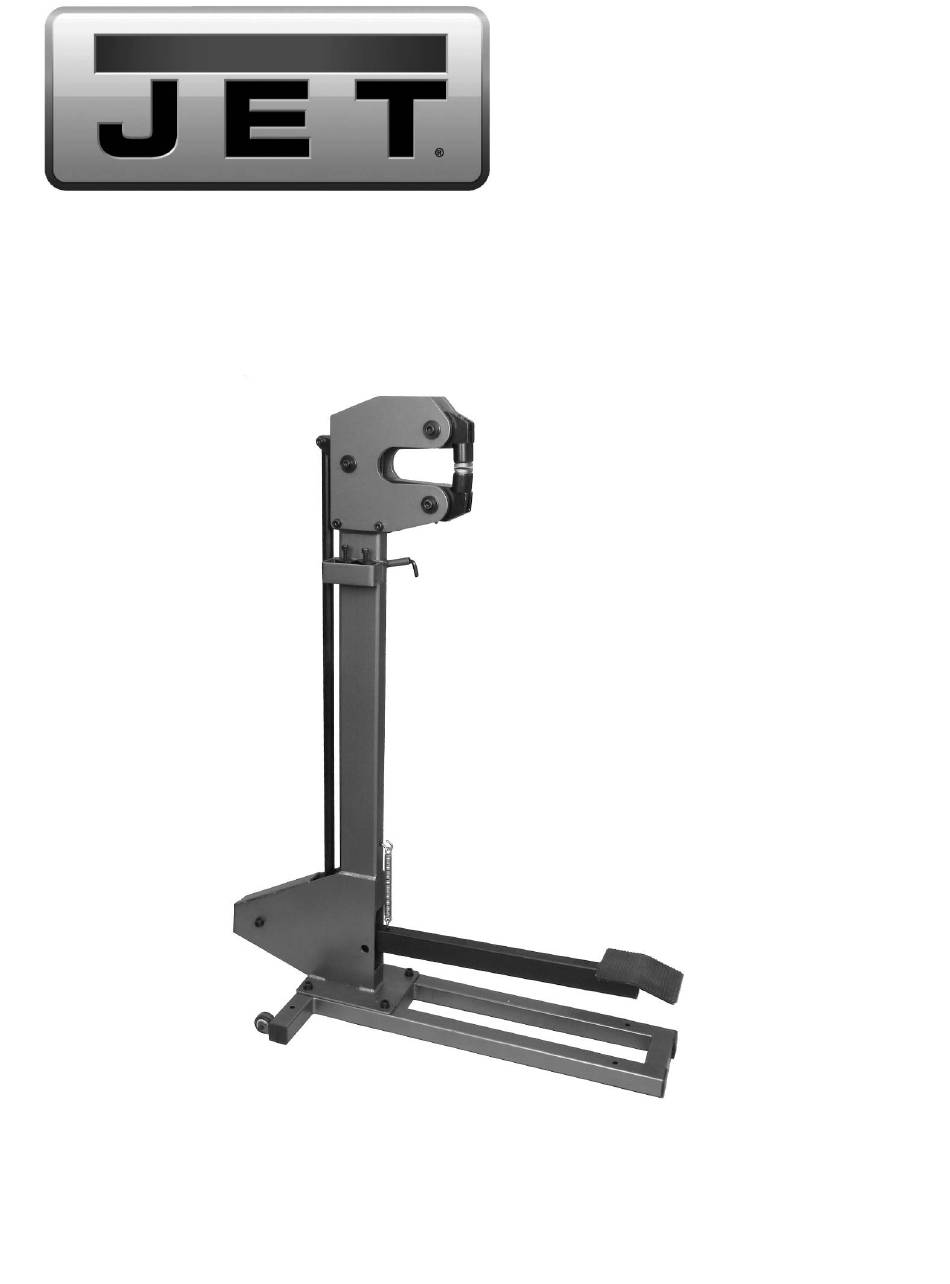

- Page 1 Operating Instructions and Parts Manual Manual Shrinker/Stretcher Model MSS-1 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-756018 Ph.: 800-274-6848 Edition 3 08/2018 www.jettools.com Copyright © 2018 JET...
-
Page 2: Important Safety Instructions
Do not use this machine for other than its WARNING: This product can expose you to intended use. If used for other purposes, JET chemicals including lead which is known to the disclaims any real or implied warranty and holds... -
Page 3: About This Manual
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Table Of Contents
L= length; W=width; H=height The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 5: Setup And Assembly
Insert foot pedal assembly (D, Figure 5-2) into Read and understand the entire stand. Make sure threaded link stud (E) is contents of this manual before attempting set- pointed toward stand. up or operation! Failure to comply may cause Continue inserting foot pedal assembly, while serious injury. -
Page 6: Installing Jaw Sets
5.4 Installing jaw sets Install link bar (H, Figure 5-5) onto link stud (E) clockwise about 15 turns. Two jaws sets are provided – one for shrinking, one for stretching. Figure 5-8 Figure 5-5 Select both jaws from the same set, and slide them Use any available items to block up foot pedal into frame, as shown in Figure 5-9. -
Page 7: Operation
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET. Some parts are shown for reference only, and may not be available individually. -
Page 8: Mss-1 Shrinker/Stretcher - Exploded View
8.1.1 MSS-1 Shrinker/Stretcher – Exploded View... -
Page 9: Mss-1 Shrinker/Stretcher - Parts List
....LM000245 ....ID Label, MSS-1 (not shown)................. 1 ....LM000239 ....Warning Label (not shown) ................1 ....JET-92 ....... JET Logo (not shown) ..........92 x 38mm ....1 ....MSS1-STJ ....Stretcher Jaw Assembly (includes #19~26) ..........2 .... -
Page 10: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 11 This page intentionally left blank.
