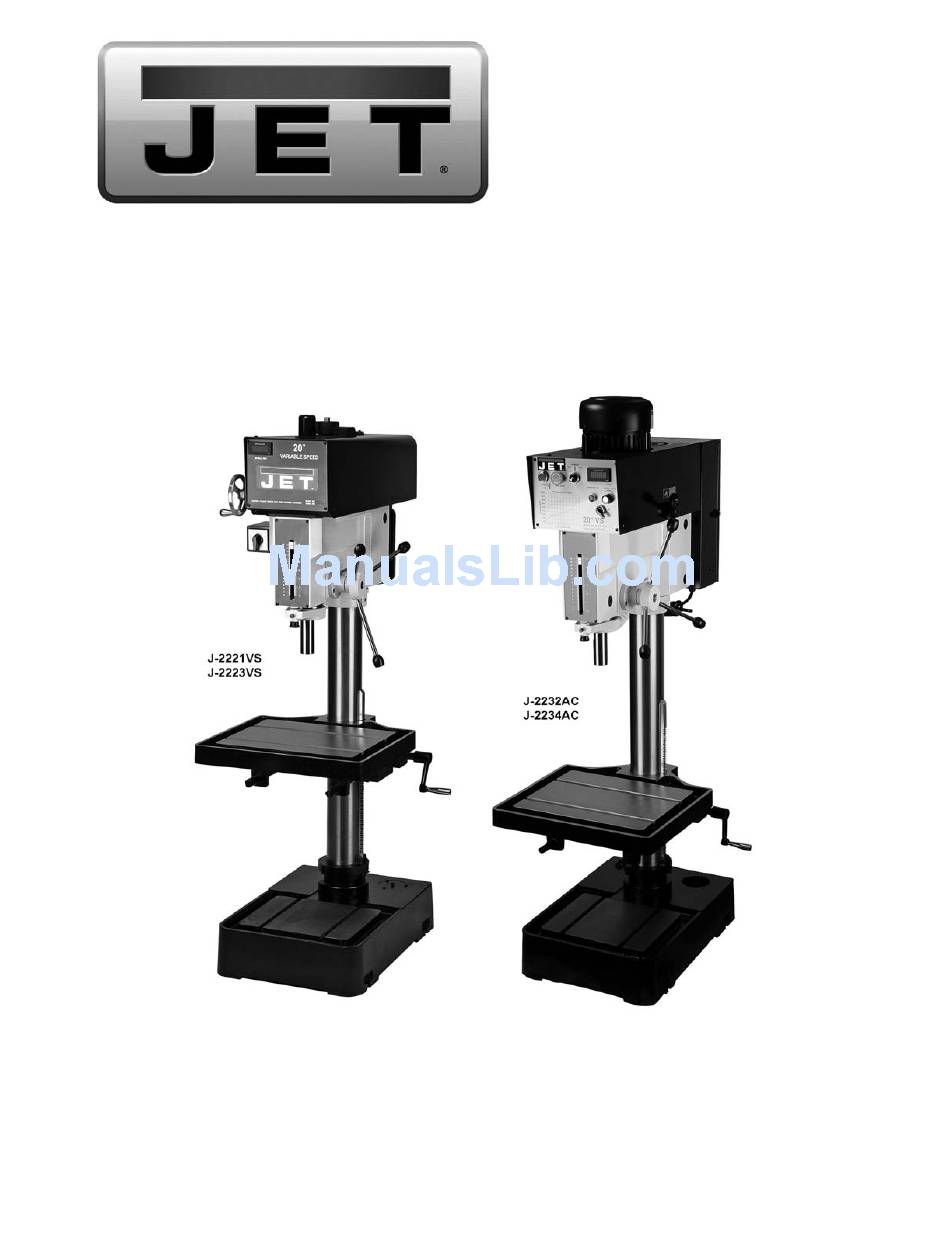

Operating Instructions and Parts Manual

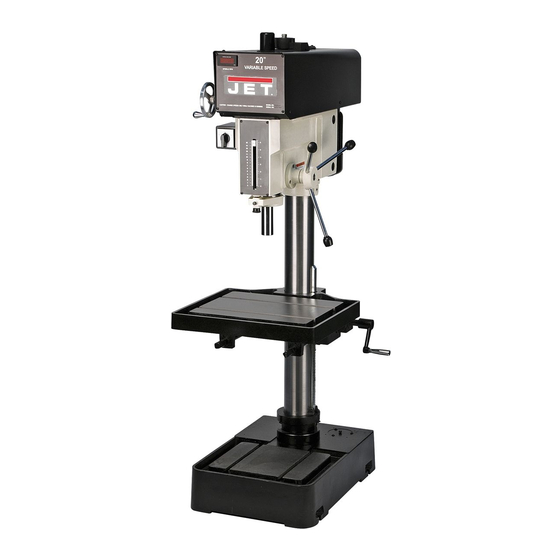

20-inch Variable Speed Drill Presses
Models: J-2221VS, J-2223VS, J-2232AC, J-2234AC
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-354221
Ph.: 800-274-6848
Revision B5 11/2013
www.jettools.com
Copyright © 2013 Walter Meier (Manufacturing) Inc.
