Politec ALES 60 Installation Manual

Infrared perimetral barrier double beams
Hide thumbs Also See for ALES 60:
Table of Contents

Advertisement

Quick Links

Download this manual
ALES 60/120
INFRARED PERIMETRAL BARRIER
DOUBLE BEAMS
1 of 8
ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALES 60 and is the answer not in the manual?

Questions and answers

Related Manuals for Politec ALES 60

Summary of Contents for Politec ALES 60

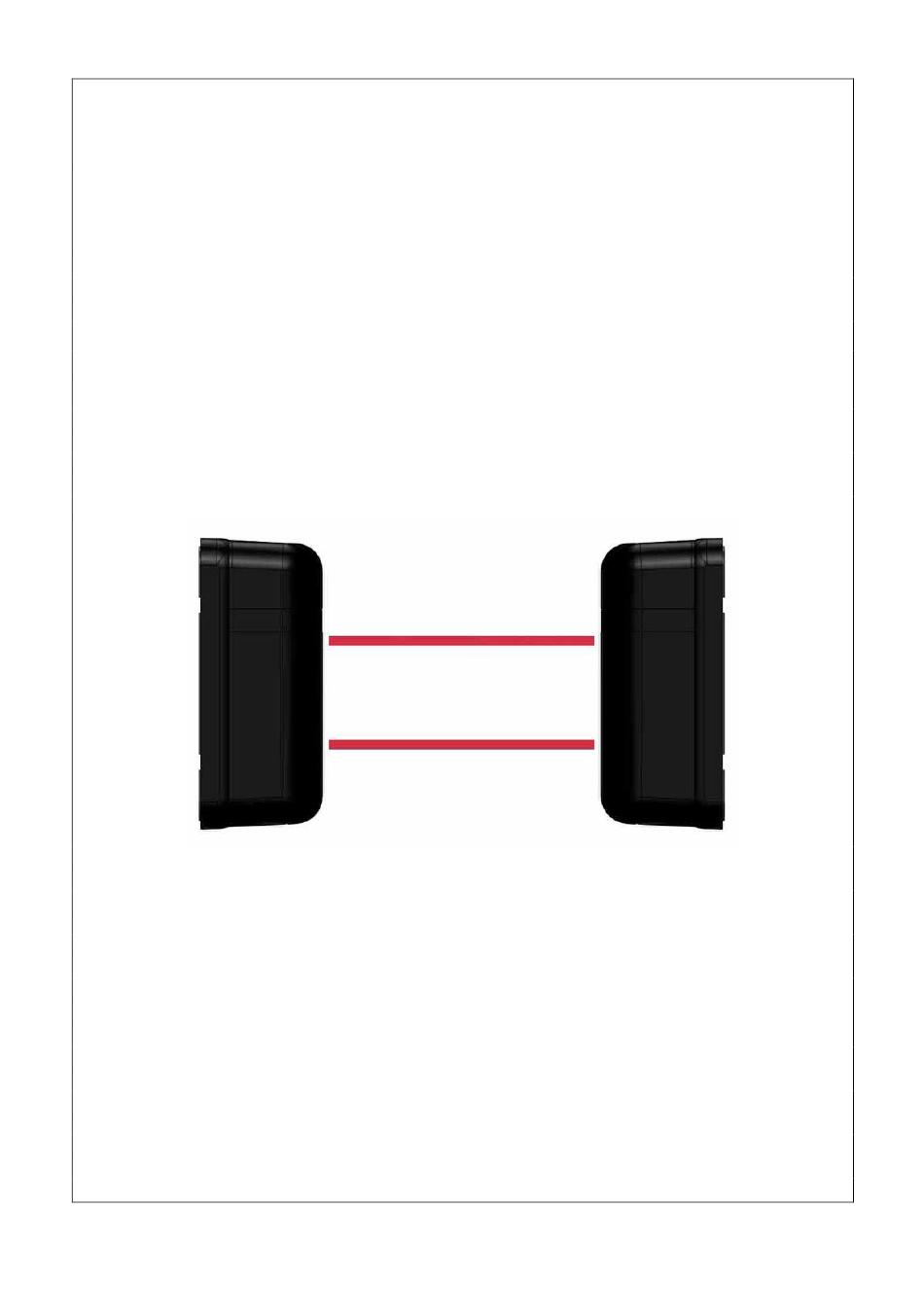

  • Page 1 ALES 60/120 INFRARED PERIMETRAL BARRIER DOUBLE BEAMS Installation Manual 1 of 8 ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.
  • Page 2 Switch Horizintal Adjustment Screw Vertical Adjustment Screw Adjustment Buzzer (RX) Adjustment Lens High - Frquence Leds (RX) IR Cover Unit Base Screws “U” Bracket Mounting Plate For Pole Mounting 2 of 8 ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.
  • Page 3 In case of repairs covered by warranty (2 years) but with obvious signs of improper installation, the Politec s.r.l. reserves the right to decide on any repair costs.
  • Page 4 2 Pass the cable through the gasket in the base and anchor on the same plate. Make connections to the terminal. 3 Following the calibration and verification of proper operation of the system, replace the IR Cover. 4 of 8 ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.
  • Page 5 TX must be corresponding to that of the RX. 6. TMP1 – Tamper input additional, in case of absence MUST remain closed by jumper. 7. TMP – Tamper anti cover removal. 5 of 8 ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.
  • Page 6 Press the TEST button on the RX mother board for 3 seconds until the buzzer will beep twice, accompanied by two blinking of LEDs, to begin calibration. 1. Press the TEST button on the RX Column 2.Power on of buzzer and LEDs on RX column 6 of 8 ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.
  • Page 7 2. With the supplied cable connect 1. Insert jumper in DIS ON. the output OUT DIS (open collector negative) to bring the output in the control panel. 7 of 8 ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.

  • Page 8: Technical Features

    Heaters Optional with thermostat Heaters consumption (couple) 10/15VDC250mA TAMPER output Contact NC Operating temperature -25° (with heat.) +65° IP Protection IP65 Mounting brackets for wall/pole TOTAL WARRANTY 2 YEARS 8 of 8 ISTRUZIONI ALES60-120 INGLESE – VER1.2 – POLITEC s.r.l.
