Page 2
Do not install multiple beams where the transmitter beam can interfere with other receiver beams. It is always better place either transmitter or receivers back to back. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...

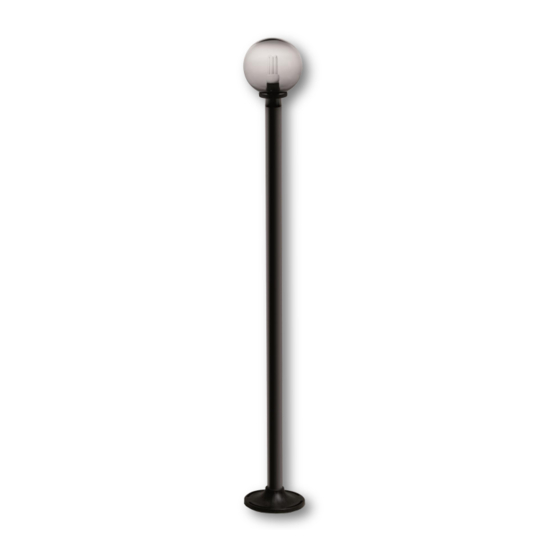

Pipe IR Plug Lamp adapter Base Cablepit Motherboard TX Group optic TX/RX Motherboard RX Cover for the base Battery rechargeable 3.6 V Power supply 12Vdc Thermostat board Power supply board POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 4
2. ASSEMBLING THE CABLEPIT Insert the highlighted edge into other section and fix with screws Insert the third section in the same way and fix with screws. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 5
Enlarge the two opposite walls of cable pit to allow the positioning of last section. Insert and well fix the missing screws. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 6
For PARVIS columns is also possible to keep the top edge ten centimeters below the level of the ground so that it is visible only the IR tube. This type of placement is possible only when the cable pit is fixed into the ground and not in a concrete pavement. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 7
On the side that must be corrected loosen the insert in order to get the right inclination. WRONG POSITIONING CORRECT POSITIONING BY ADJUSTING INSERTS EXAMPLE OF SETTING POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 8
Use the central cable gland for lightning cable. Base cover with the cable glands and O-ring Once the cabling is completed the base cap has to be fixed to the base with relative O-ring. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Simple barrier 8 BEAMS Single barrier 8 BEAMS Crossed barrier Note: if you use the optical sync do not place multiple transmitters on the same line in the same direction POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 10
5. WIRING MOTHERBOARD TX or RX POWER SUPPLY BOARD 3.6V 12 Vdc THERMOSTAT BOARD 220 Vac POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 11
6. CONFIGURATION OF THE OPTICALS OPTICAL TX TAMPER TEST LED TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 12
OPTICAL RX TAMPER TEST LED SIGNAL TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
7. SANDOR WS SMA TX MOTHER BOARD TAMPER LED ON BATTERY CONNECTION 3,6 V – 19 Ah N.B.: When the motherboard is supplied the LED ON will flash. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 14
BATTERY CONNECTION AND FOR REMOTE 3,6 V – 19 Ah (AND) ANTIMASK POUTPUT (AMK) ALARM SUPPLY TAMPER N.B.: When the motherboard is supplied by battery the TEST LED will flash POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 15
ON - Anti crawling active. In this condition if the first beam (lower) is interrupted for A. CRAWL more than 2 seconds, it will generate an alarm, independently of its configuration (i.e. AND) TEST Put in ON to activate the TEST POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
For proper alignment once installed barriers orient optical groups of the transmitters and receivers each optical groups in the direction of others. Adjusting horizontally through the manual movement, and vertically through the front screws placed above the lenses. Horizontal adjustment Vertical adjustment POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 17
Place the filter in front of the optics TX positioning the two hooks on the pins of the fork optics to effectively search the signal alignment with critical conditions. Simply applying the filter only on the TX, no need to repeat the operation RX. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 18
Start the alignment of the barrier is on activating the transmitter optics TX TEST, pressing the dedicated button for about 3 seconds until the TEST LED turns orange. ORANGE TEST BUTTON POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 19
By a FULL rotation on the horizontal axis of the RECEIVER optics , you make the SCANNING of the optical signal. Rotating the optical RX find the maximum value of which corresponds to the ALIGNMENT LED (high-brightness) FIXED and whistle CONTINUOUS of the BUZZER. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 20
SE IL LED DI TEST CONTINUA A LAMPEGGIARE VELOCEMENTE DURANTE IL NORMALE FUNZIONAMENTO SIGNIFICA CHE ESISTE UNA FONTE DI DISTURBO INFRAROSSO ( ALTRA BARRIERA, FOTOCELLULA CANCELLO, …) CHE NON PERMETTE IL CORRETTO FUNZIONAMENTO DELLA BARRIERA. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 21
Put in test the optical TX2 and RX2 and proceed with the calibration as explained N.B.: during the testing phase of an optical transmitter the other TX not in test are switched off automatically. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
Page 22
Adjusting the potentiometer clockwise to decrease the alarm delay up to 50ms. In this condition ensures the alarm of a person crossing the barrier running at maximum speed. POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
MAX RANGE OUTDOOR 50 m 250 cm HEIGHT COLUMN 120 cm 160 cm 200 cm SYNCHRONIZATION Optical TOTAL BEAMS 4 parallel SUPPLY 220 Vac battery charger BATTERY LIFE 3 years POLITEC s.r.l. | Manual PARVIS HYBRID SMA – Ver. 1.2...
