Politec Sandor Dual SMA Installation Manual
Dual optic
Hide thumbs
Also See for Sandor Dual SMA:
- Installation and mounting manual (28 pages) ,
- Installation manual (25 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Politec Sandor Dual SMA
Summary of Contents for Politec Sandor Dual SMA

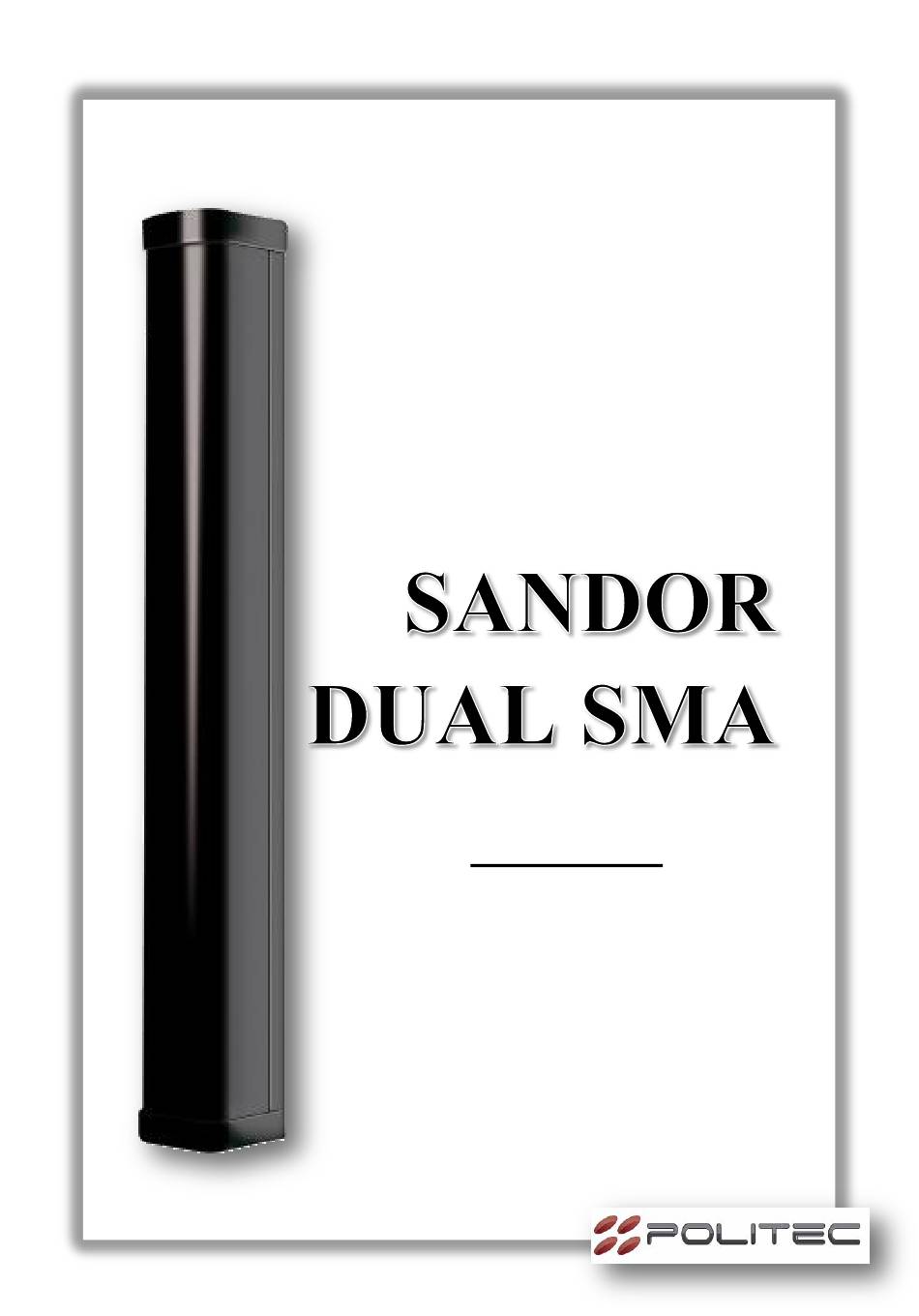

- Page 1 DUAL OPTIC Installation manual...
- Page 2 Use the supplied cable gland for the lower input cables. Not using appropriate accessories will invalidate the degree of protection (IP). Avoid to use the switching power supplier that induce noise on the power supplies that can be amplified by the optical sync. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 3 COMPONENTS DESCRIPTION Aluminium profile Plastic profile Caps Opticals RX/TX Flat cable Mother board POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
-
Page 4: Mounting Examples
MOUNTING EXAMPLES Wall mounting Pole Wall with bracket mounting mounting SAN/PL with bracket with bracket SAN/PL SAN/SD POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0... - Page 5 N.B.: we recommend the use of the brackets SAN / PL on the wall when you place the protection of gates (windows, doors, ...) along the wall to avoid small obstacles (hinges, edges of window sills, ...) that could create signal attenuation. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
-
Page 6: Esempi Di Installazione
ESEMPI DI INSTALLAZIONE For an installation to control the perimeter install the barriers as shown: For an installation of barriers overlapped position the barriers as well as in the figure: POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0... - Page 7 N.B. THE LAR22 IS NOT WATERPROOF, MUST BE PLACED INSIDE A LOCAL OR PLACED IN A SEALED CONTAINER FOR USE OUTSIDE. Is possible use the power supplier LAR18 (12Vdc – 0,9A / 24VAC-60W) to supply a single column. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 8 The power of the heaters is by default set to 24 Vac, but you can set it to 12 Vdc repositioning the jumper on both RX and TX mother boards and on each optical as shown. OPTICAL MOTHER BOARD POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
-
Page 9: Optical Configuration
To test the functionality of optics TX put ON the DIP 7 and see the activation of the power LED. Set SW4 to supply of the heaters. 24V (standard) or 12V. The voltage can be AC or DC NB: The settings relating to addresses are already set to Default. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0... - Page 10 24V (standard) or 12V. The voltage can be AC or DC In the J4 jumper reads the value of the signal in volts. NB: The settings relating to addresses are already set to Default. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 11 Vertical adjustment Horizontal adjustment SCREW N.B.: FASTEN THE UNLOCKING SCREW AFTER THE ADJUSTMENT POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 12 7 to ON and activating the TEST optics TX (1 or 2 or 3 or 4), by pressing the dedicated button for about 3 seconds until the orange LED TEST will lit up. ORANGE DIP 7 ON TO ACTIVATE DIP 7 ON THE LED TEST BUTTON POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 13 LEDs is fix on and the whistle of the corresponding BUZZER) indicate a better ALIGNMENT. With a FULL rotation on the horizontal RX lens, is carried out the SCANNING of the optical signal. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 14 OFF THE LED NB: you can SEE the calibration value through the multimeter on each optical receiver. For this procedure, you must have the pair of lenses (TX-RX) in TEST. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 15 Put in test the optical TX2 and RX2 and proceed with the calibration as explained N.B.: during the testing phase of an optical transmitter the other TX not in test are switched off automatically. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 16 Put in test the optical TX1 and RX1 and proceed with the calibration as explained. REPEAT the setting of RX2 Put in test the optical TX2 and RX1 and proceed with the calibration as explained. REPEAT the setting of RX2 POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 17 10 SETTING AND PROGRAMMING MOTHER BOARD TX TAMPER SUPPLY LED DIP SWITCH POWER HEATERS 12 V 24 V 12 V 24 V POWER HEATERS POWER SUPPLY 12-24 Vcc 12-30 Vcc TAMPER POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
-
Page 18: Connectors Description
On the card is provided an input for the tamper. In case of absence of the latter close the entrance with a jumper. NB: This does not include the termostatore, you can use the accessory SANDOR TS which is a kit made for additional thermostat SANDOR DUAL. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0... - Page 19 11 SETTING AND PROGRAMMING MOTHER BOARD TX TAMPER DISQUALIFICATION DISQUALIFICATION DIP SWITCH ALARM LED 12 V 24 V 12 V 24 V POWER HEATERS TAMPER ALARM POWER SUPPLY POWER HEATERS 12-30 Vcc 12-24 Vcc POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
-
Page 20: Dip Switch Description
1 2 3 4 5 6 7 8 9 50 mSec - 1 FLASH LED 250 mSec - 2 FLASH LED 500 mSec - 3 FLASH LED 750 mSec - 4 FLASH LED POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0... -
Page 21: Led Description
There OPEN COLLECTOR output NEGATIVE for the disqualification by a dedicated connector. NB: This does not include the termostatore, you can use the accessory SANDOR TS which is a kit made for additional thermostat SANDOR DUAL. POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0... -
Page 22: Technical Characteristics
ADJUSTMENT VERTICAL ANGLE 20° ANDJUSTMENT HORIZONTAL ANGLE 180° AND/OR SU Tx E Rx AND REMOTE USCITA TAMPER CONTATTO NC OUTPUT DISQUALIFICATION OPEN COLLECTOR IP 65 WALL MOUNTING POLE MOUNTING GUARANTY 2 YEARS POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0... - Page 23 POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
- Page 24 POLITEC s.r.l. | Sandor Dual Sma manual – Ver. 2.0...
