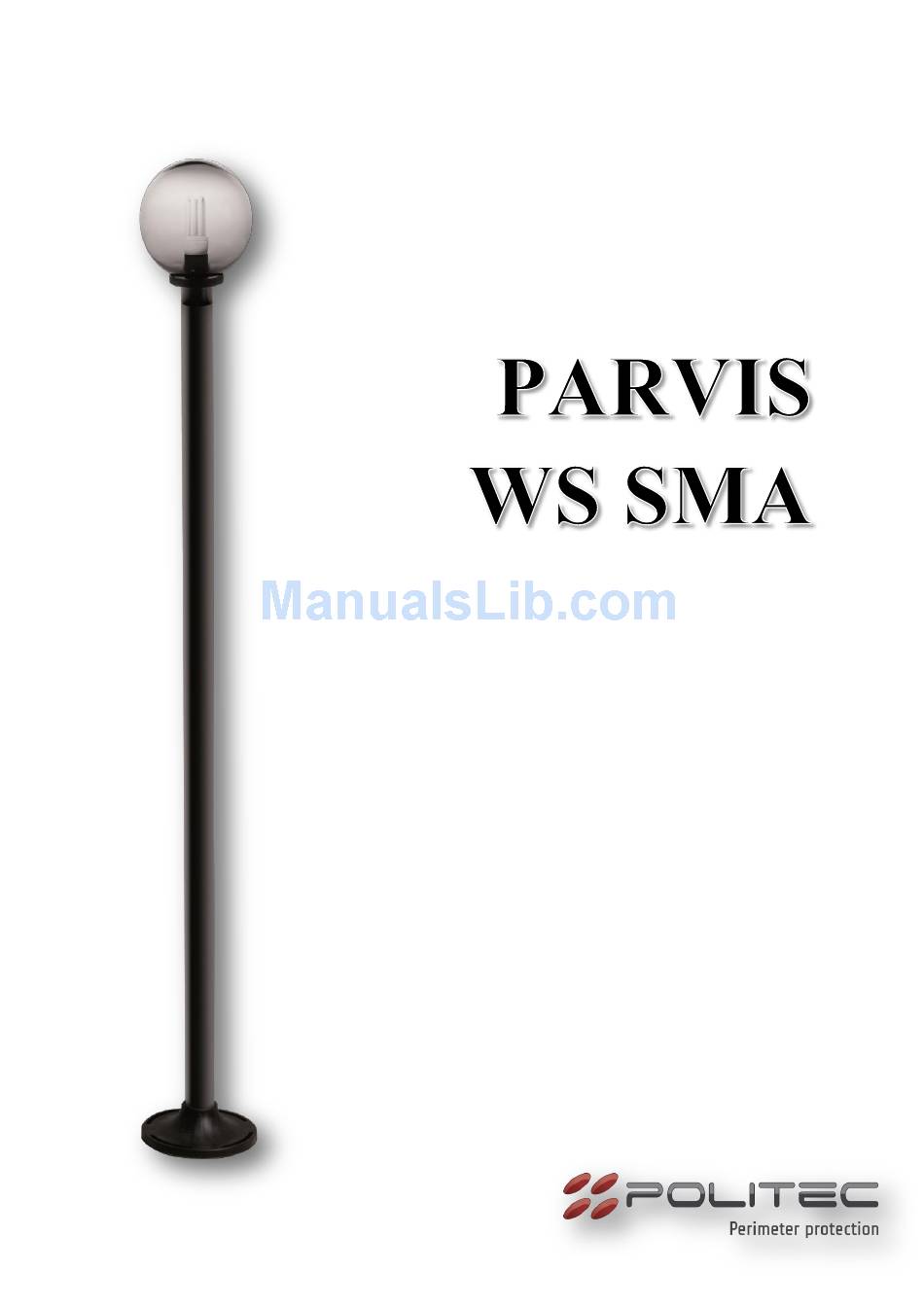

- Page 1 Technical manual...
- Page 2 Do not install multiple beams where the transmitter beam can interfere with other receiver beams. It is always better place either transmitter or receivers back to back. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
-
Page 3: Main Components
N° Description Aluminium pole Pipe IR Plug Lamp adapter Base Cablepit Motherboard TX Group optic TX/RX Motherboard RX Cover for the base Battery 3.6 V 19 Ah Wireless trasmitter position POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2... - Page 4 2. ASSEMBLING THE CABLEPIT Insert the highlighted edge into other section and fix with screws Insert the third section in the same way and fix with screws. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 5 Enlarge the two opposite walls of cable pit to allow the positioning of last section. Insert and well fix the missing screws. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 6 For PARVIS columns is also possible to keep the top edge ten centimeters below the level of the ground so that it is visible only the IR tube. This type of placement is possible only when the cable pit is fixed into the ground and not in a concrete pavement. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 7 On the side that must be corrected loosen the insert in order to get the right inclination. WRONG POSITIONING CORRECT POSITIONING BY ADJUSTING INSERTS EXAMPLE OF SETTING POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 8 Use the central cable gland for lightning cable. Base cover with the cable glands and O-ring Once the cabling is completed the base cap has to be fixed to the base with relative O-ring. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
-
Page 9: Installation Examples
Simple barrier 8 BEAMS Single barrier 8 BEAMS Crossed barrier Note: if you use the optical sync do not place multiple transmitters on the same line in the same direction POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2... - Page 10 5. CONFIGURATION OF THE OPTICALS OPTICAL TX TAMPER TEST LED TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 11 OPTICAL RX TAMPER TEST LED SIGNAL TEST BUTTON 1 2 3 4 5 6 1 2 3 4 5 6 NB: The address settings as per default . POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
-
Page 12: Battery Connection
6. SANDOR WS SMA TX MOTHER BOARD TAMPER LED ON BATTERY CONNECTION 3,6 V – 19 Ah N.B.: When the motherboard is supplied the LED ON will flash. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2... - Page 13 BATTERY CONNECTION AND FOR REMOTE 3,6 V – 19 Ah (AND) ANTIMASK POUTPUT (AMK) SUPPLY ALARM TAMPER N.B.: When the motherboard is supplied by battery the TEST LED will flash POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 14 ON - Anti crawling active. In this condition if the first beam (lower) is interrupted for A. CRAWL more than 2 seconds, it will generate an alarm, independently of its configuration (i.e. AND) TEST Put in ON to activate the TEST POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 15 For proper alignment once installed barriers orient optical groups of the transmitters and receivers each optical groups in the direction of others. Adjusting horizontally through the manual movement, and vertically through the front screws placed above the lenses. Horizontal adjustment Vertical adjustment POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 16 Place the filter in front of the optics TX positioning the two hooks on the pins of the fork optics to effectively search the signal alignment with critical conditions. Simply applying the filter only on the TX, no need to repeat the operation RX. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 17 Start the alignment of the barrier is on activating the transmitter optics TX TEST, pressing the dedicated button for about 3 seconds until the TEST LED turns orange. ORANGE TEST BUTTON POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 18 By a FULL rotation on the horizontal axis of the RECEIVER optics , you make the SCANNING of the optical signal. Rotating the optical RX find the maximum value of which corresponds to the ALIGNMENT LED (high-brightness) FIXED and whistle CONTINUOUS of the BUZZER. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 19 N.B.: IF TEST LED KEEP FAST FLASHING DURING NORMAL USE OF SYSTEM ANOTHER INFRARED SOURCE IS DISTURBING (BARRIERS, GATE PHOTOCELL, …) CORRECT FUNCTIONING OF BARRIER POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 20 Put in test the optical TX2 and RX2 and proceed with the calibration as explained N.B.: during the testing phase of an optical transmitter the other TX not in test are switched off automatically. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 21 Adjusting the potentiometer clockwise to decrease the alarm delay up to 50ms. In this condition ensures the alarm of a person crossing the barrier running at maximum speed. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
-
Page 22: Technical Characteristics
MAX RANGE INDOOR 200 m MAX RANGE OUTDOOR 50 m HEIGHT COLUMN 120 cm 160 cm 200 cm SYNCHRONIZATION Optical TOTAL BEAMS 4 parallel SUPPLY Battery 3,6V 19Ah BATTERY LIFE 3 years POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2... - Page 23 To prevent radio interference, use as a link between the wireless transmitter and barrier a shielded cable with the shield to the negative of terminal block; POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
- Page 24 For a more precise alignment position a side of the column cover in without fog front of the lens in order to have two surfaces interposed between TX and RX for doubling attenuation of the beam. POLITEC s.r.l. | Manual PARVIS WS SMA – Ver. 2.2...
