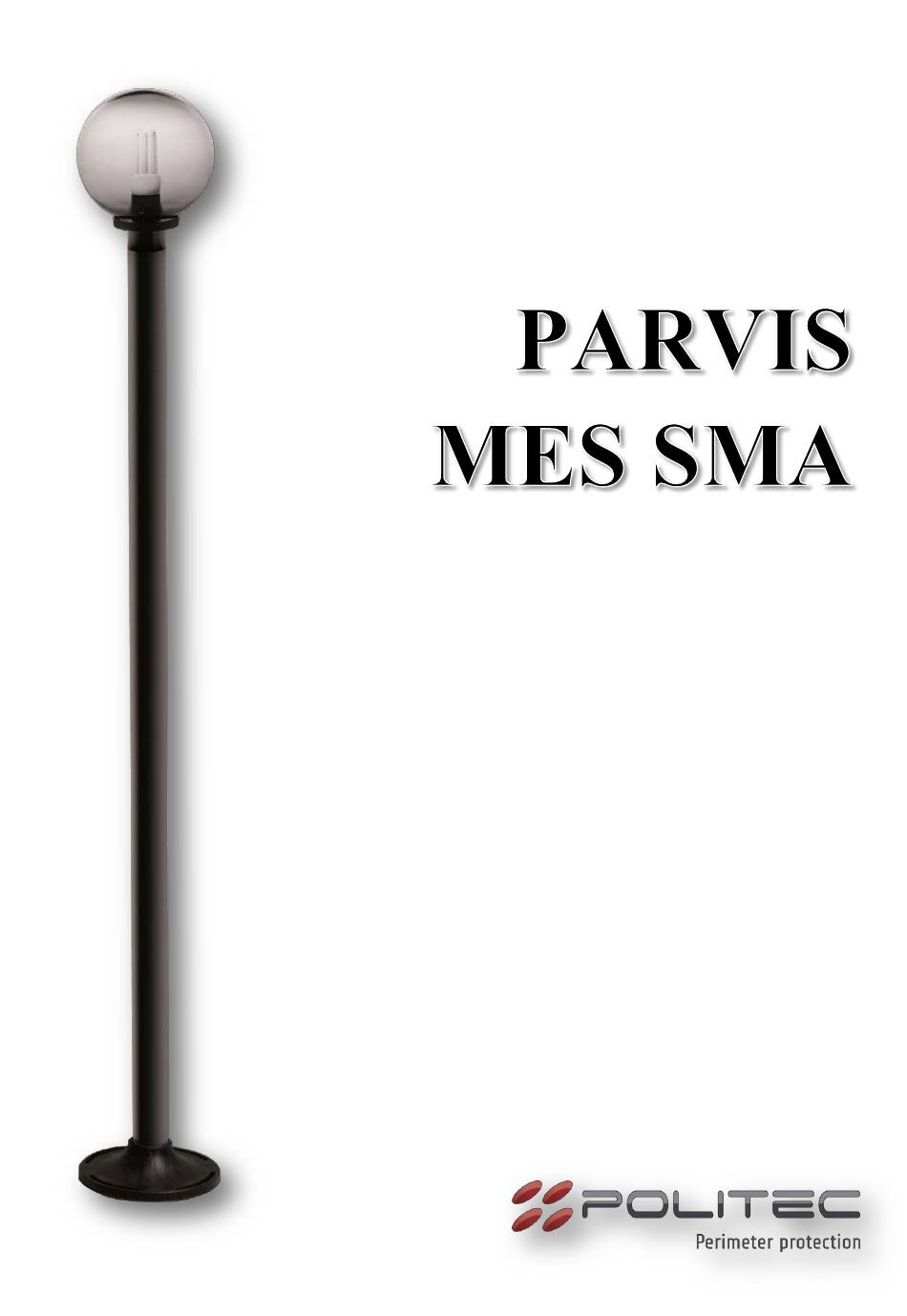

  • Page 1 Anti-intrusion invisible system SMA Technology RS485 connection...
  • Page 2  Do not install multiple beams where the transmitter beam can interfere with other receiver beams. It is always better place either transmitter or receivers back to back. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 3 1. MAIN COMPONENT LIST Part Descriptions N° Aluminum profile IR tube Top cap Lamp adapter cap Base Cable pit Motherboard Optics receiver/transmitter Terminal block Base cap (with cable glands) POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 4 2. ASSEMBLING THE CABLEPIT Insert the highlighted edge into other section and fix with screws Insert the third section in the same way and fix with screws. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 5 Enlarge the two opposite walls of cable pit to allow the positioning of last section. Insert and well fix the missing screws. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 6 For PARVIS columns is also possible to keep the top edge ten centimeters below the level of the ground so that it is visible only the IR tube. This type of placement is possible only when the cable pit is fixed into the ground and not in a concrete pavement. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 7 On the side that must be corrected loosen the insert in order to get the right inclination. WRONG POSITIONING CORRECT POSITIONING BY ADJUSTING INSERTS EXAMPLE OF SETTING POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 8 Use the central cable gland for lightning cable. Base cover with the cable glands and O-ring Once the cabling is completed the base cap has to be fixed to the base with relative O-ring. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 9: Installation Examples

    8 BEAMS single barrier 8 BEAMS crossed barrier Note: if you use the optical sync do not place multiple transmitters on the same line in the same direction POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 10: Cables And Wiring

    This suppling unit is enclosed in a PVC box with a built in grade protection IP68. This power supply can also be twinned to LARB4 battery enclosed as well in a waterproof box. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 11 Negative sync input Negative sync - S IN 20 - S OUT (TX=>RX) output (TX=>RX) Not in use 10 21 Not in use Not in use 11 22 Not in use POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 12 The power of the heaters is by default set to 24 V (ac or dc), but you can set it to 12 VDC repositioning the jumper on MES9C and on each optical as shown. Heaters supply MES9C BOARD OPTICAL POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 13 2x0, 22, to connect the sync and the screens to negative Vdc of power supply on both columns. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 14 (terminal numbers are related to the image of p. 11). Channel RX 1 2 3 4 Channel TX 1 2 3 4 DIP4 in OFF 1 2 3 4 5 6 7 8 9 10 11 12 POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 15 4; the selected channel must be the same on both TX and RX boards. Note: for information and for other configuration of MES9012, please check page 27. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 16 TOWER 2 TOWER 1 TOWER 2 Channel TX Channel TX 1 2 3 4 1 2 3 4 Channel RX Channel RX 1 2 3 4 1 2 3 4 POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 17 Each column can be connected via the RS485 bus to the control panel ADEBUS for planning, monitoring and managing local or remote system. For more information, refer to "Manual ADEBUS EXPLORER" 5.4.1. Connection to serial port for each column MES9C MES9C column 1 column 2 ADEBUS POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 18: Power On Led

    The power of the heaters is set by default to 24V; you can use 12V by changing the configuration of the jumper (SW4). The voltage can be both AC and DC. Note: The settings and relative addresses are already set by Default. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 19 The voltage can be both AC and DC. In jumper J4 is possible to read the signal value in volts. Note: The settings relating to addresses are already set to Default. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 20 1 2 3 4 5 6 1 2 3 4 5 6 7 1 2 3 4 5 6 It should be set to ON the DIP on the motherboard RX exclusion 1 + 2 POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 21 Vertical adjustment Horizontal adjustment SCREW N.B.: FASTEN THE UNLOCKED SCREW AFTER THE ADJUSTMENT POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 22 Place the filter in front of the optics TX, hooking it to the fork, to improve the effectively search of alignment signal in critical conditions. It is enough to apply the filter on TX optic, do not repeat the operation on RX. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 23 Through the TRANSMITTER lens shifts, find the maximum optical alignment based on the Buzzer and LEDs (with high brightness), the increase in the frequency of flashing (until the LEDs is fix on and the whistle of the corresponding BUZZER) indicate a better ALIGNMENT. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 24 (TX-RX) making sure that the orange LED TEST is shown in original condition. ORANGE TEST BUTTON Once finish the alignment remove from the optic the filter, sure to have achieved the best signal. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 25 4) Put in test the optical TX4 and RX4 and proceed with the calibration as explained N.B.: during the testing phase of an optical transmitter the other TX not in test are switched off automatically POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 26 4) Put in test the optical TX4 and RX1 and proceed with the calibration as explained on p. 13 and 14. REPEAT the setting of RX2, RX3 and RX4. Make sure that it still aligned with RX1. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 27 Green HEATINGS LED Yellow SYNCHRONISM SYNC Yellow Response time TRIMMER adjustment DISQUALIFICATION SENSIBILITY Function selector DIP SWITCH 12 (pag. 23) 10 TAMPER 11 DIP SWITCH TX 12 DIP SWITCH RX POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 28 Normally off, when turned on the heater is on. LED SINC The LED SINC continuously flashing indicates the proper Indicates the functioning of operation and wiring of sync both outgoing and incoming. the synchronism POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 29 In the ON position closes the RS485 communication. To finish you need to RS485 put in ON only the switches of the column as far as the entire line. LEDS In the ON position activates the LEDs. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 30 Wire sync: not in use CH 4 OFF Optical sync: operation with transmission frequency 4, only 2 receiver active JUMPER J7 Jumper on 2-3 (default): Standard disqualification sensibility Jumper on 1-2: High disqualification sensibility POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 31 (ex. animals). Adjusting the potentiometer clockwise decreases the trip time until 50ms. In this condition ensures the alarm of a person crossing the barrier running at maximum speed. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 32: Technical Characteristics

    120 mA 30W 24Vca 40W 24Vca 50W 24Vca Heaters in column with thermostat with thermostat with thermostat For single barrier or couple (TX and RX) or in case of open perimeter. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 33 Check the correct sizing of the power cables; o If the system uses a switching power supply replace it with corresponding linear to avoid electrical interference from the network, it is recommended that the power supply LAR22. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 34 For a more precise alignment position a side of the column cover in front of the lens in order to have two surfaces interposed between TX and RX for doubling attenuation of the beam. POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 35 POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
  • Page 36 TECH DEPT: +39 039 9081616 POLITEC s.r.l. | Manual PARVIS MES SMA – Ver. 2.4...
