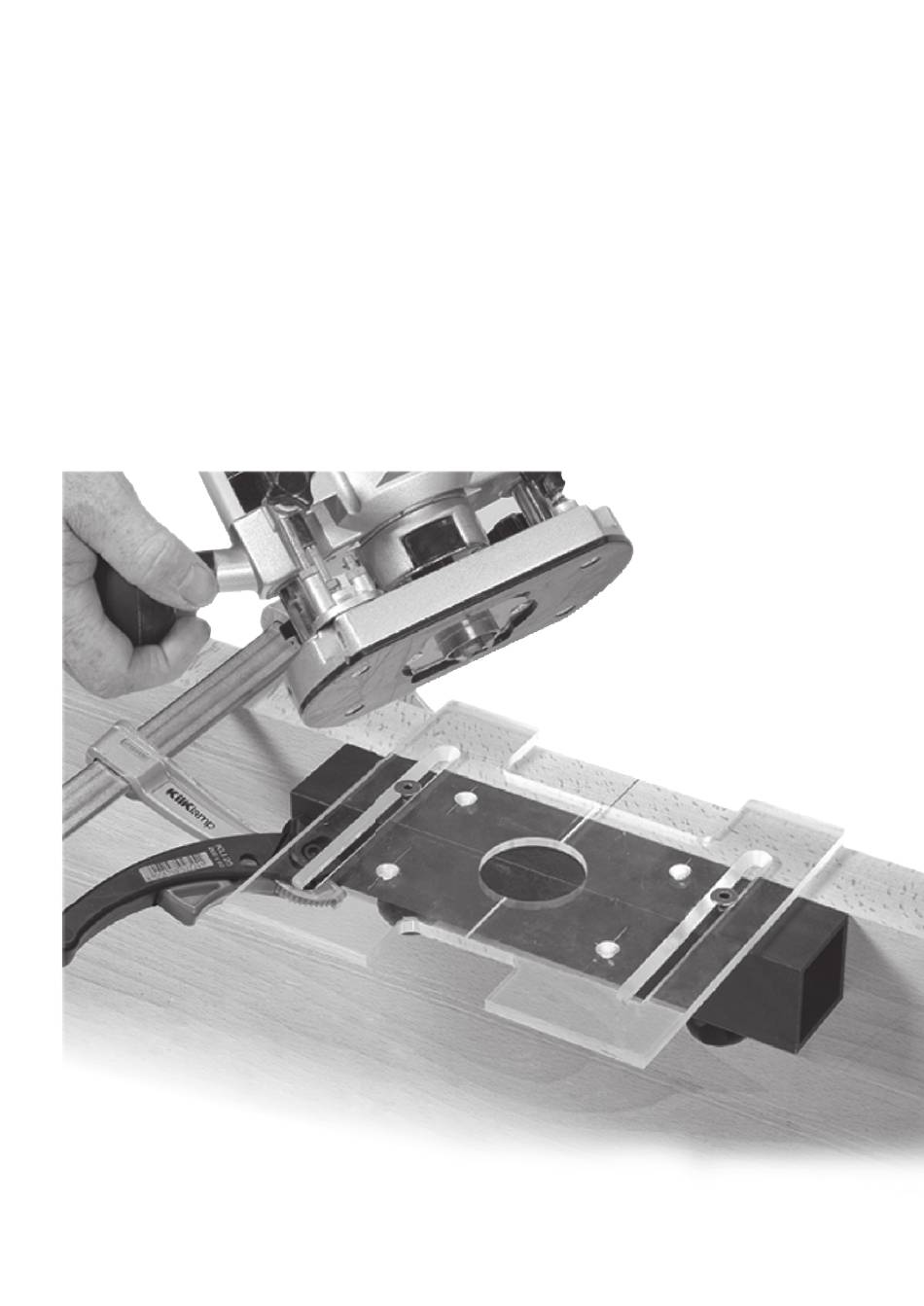

- Page 1 Code 100714 Axminster Single Hinge Jig (Clamp not supplied)
- Page 2 Copyright This product has been wholly designed and manufactured by Axminster Tool Centre Ltd who have exclusive use of the design and manufacture. As such it should not be copied or reproduced.
-
Page 3: Introduction
Introduction Axminster Single Hinge Jig The Axminster Single Hinge Jig is designed to cut hinge recesses in combination with any size router fitted with an appropriate guide bush. Using the suggested 26mm guide bush and 20mm cutter, the template will cut recesses for 100mm and 50mm butt hinges. - Page 4 Using the Template Fig 02 Using the template to cut 100mm hinge recesses in the door edge 1. The template is first adjusted to position the hinge knuckle or pivot pin on the door edge to ensure that the door will close correctly to the doorframe. The inside edge of the template is set to the width of the hinge flap plus the guide bush margin.
-
Page 5: Using The Template 4
Using the Template 5. Cut the recess by first locking the router plunge Fig 04 to the depth set by the depth gauge and cutting in from the edge of the door. (See fig 06) Start by making a back cut (i.e. against the direction of cutter rotation, that is from right to left), before removing the remaining waste from the recess. -
Page 6: Using The Template 4
Using the Template 7. Matching recesses can be cut into doorframes or 8. When cutting a number of doors with similar hinge linings using the hinge jig. The jig can be clamped positions, two or more templates can be used, fitted to the frame prior to the architraves being fitted or to a 24mm by 24mm timber batten and spaced out to a lining prior to the architraves and planted stop... -
Page 7: Guide Bush And Cutter Chart
Guide Bush & Cutter Chart Guide Bush Hinge Length Cutter Diameter Template Diameter 100mm 26mm 20mm 106mm Template 75mm 40mm 106mm Template 50mm 26mm 20mm 56mm Template 25mm 40mm 56mm Template 35mm Diameter 24mm 12mm 48mm Dia Template 26mm Diameter 30mm 48mm Dia Template... - Page 8 Axminster Tools & Machinery Ltd, Weycroft Avenue, Axminster, Devon EX13 5PH axminster.co.uk...
