Summary of Contents for Axminster RTC7030

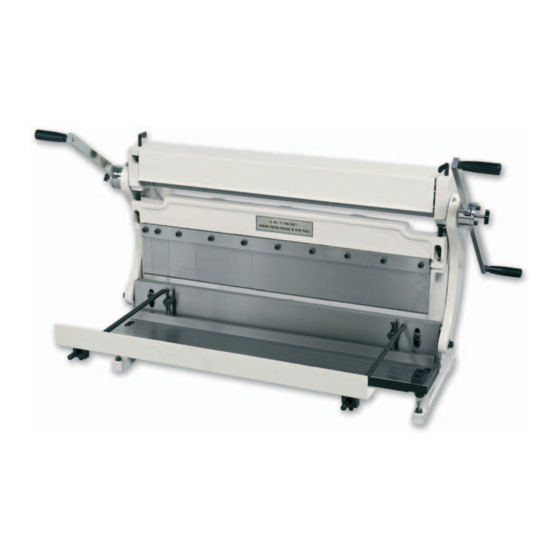

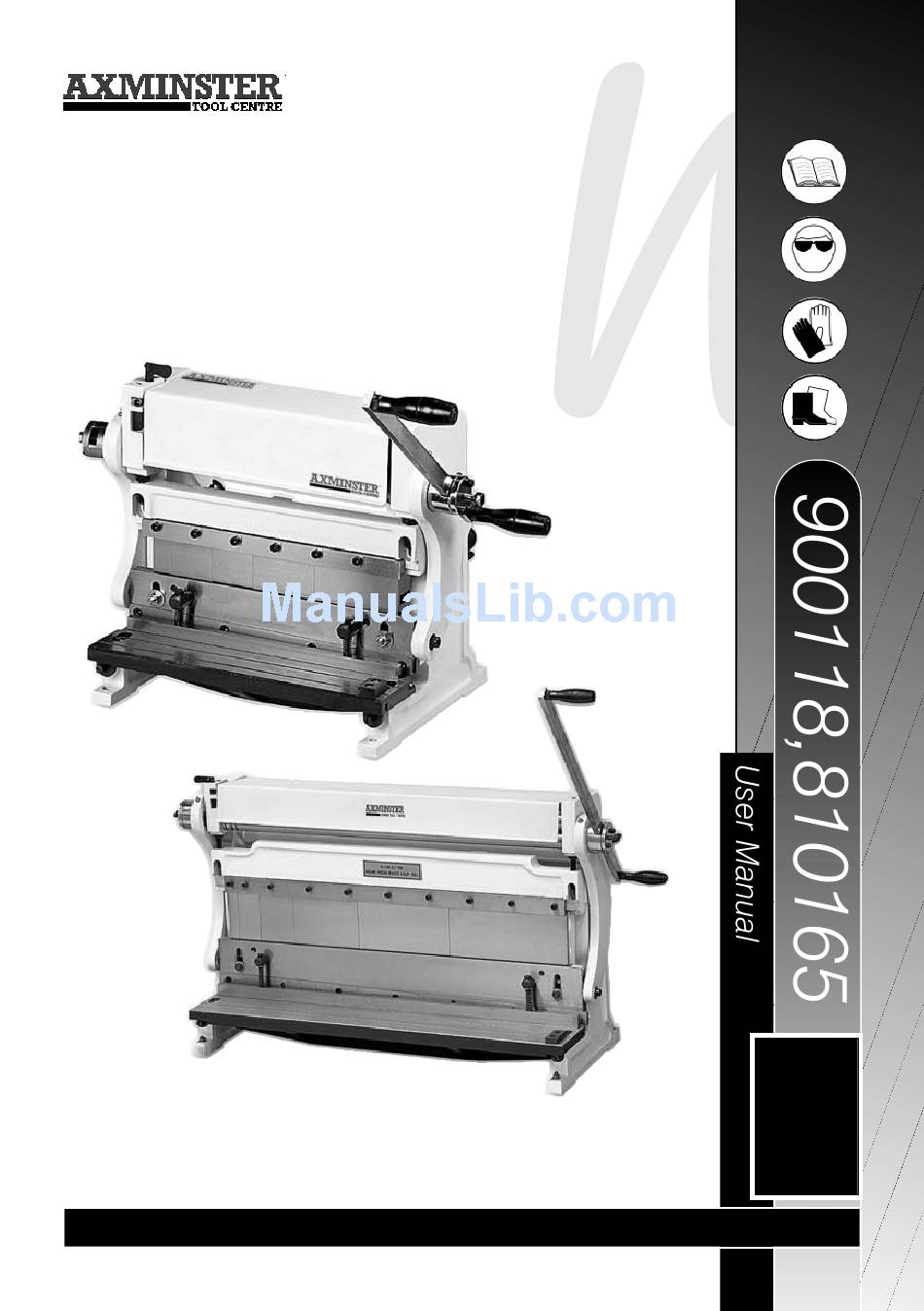

- Page 1 Axminster Reference No: SSBP (900118) A X M I N S T E R W H I T E Axminster Reference No: RTC7030 (810165) w w w. a x m i n s t e r. c o . u k...
-
Page 2: Table Of Contents
ATTEMPT TO LIFT OR MOVE THIS MACHINE. PLEASE NOTE: THE IMAGES IN THIS MANUAL SHOW THE SSBP SHEET METAL WORKER, THE RTC7030 IS EXACTLY THE SAME BUT ON A LARGER SCALE. The symbols shown on the cover of this SAFETY!! manual advise that you wear the correct safety protection when using this machine. -
Page 3: Whats In The Box
(D) Support Blocks 2 off: (E) Support Locking Knobs 1 off: Instruction Manual 1 off: Guarantee Card Model Number: RTC7030 1 off: (A) 750mm Sheet Metal Worker 2 off: (B) Support Rods 1 off: (C) Backstop Bar 2 off: (D) Support Blocks... -
Page 4: General Safety Instructions
• Keep fingers away from the rollers, the bending dies and the shearing blades. • Do not wear loose clothing which might get drawn into the machine. • Keep the top cover closed when the rollers are not in use. www.axminster.co.uk... -
Page 5: Specifications
Specifications... A X M I N S T E R W H I T E Axminster No. SSBP RTC7030 900118 810165 Shearing Capacity: Steel 0.5mm, Aluminium 1.5mm Steel 0.8mm, Aluminium 1.5mm Bending Capacity: Steel 0.5mm, Aluminium 1.5mm Steel 0.8mm, Aluminium 1.5mm Rolling Capacity: Steel 1.0mm, Aluminium 1.5mm... -
Page 6: Illustration & Parts Description
Illustration & Parts Description... A X M I N S T E R W H I T E Upper roller Cover Lower roller Roller clearance adjusting keys Roller cover Handle Handle arm Handle locking knob Fig 3 Left frame Cranking arm casting Right frame casting... -
Page 7: Illustration & Parts Description
Illustration & Parts Description... A X M I N S T E R W H I T E Adjustment bolt Adjustment bar Lower roller Upper roller Cross beam Lower roller adjusting knobs Fig 4 Back stop Cranking arm support block Back stop support rods Back stop... -
Page 8: Operating Instructions
Operating Instructions... A X M I N S T E R W H I T E The basic operation of the machine is as follows. The operating handle is attached to a shaft which serves two functions; firstly it drives the three rollers which carry out the rolling operation and secondly, with the aid of eccentrics, mounted at the two ends, it raises and lowers the lower cross bar of the machine. - Page 9 Operating Instructions... A X M I N S T E R W H I T E Rolling Start by removing the cover which protects the rollers then lower the rear roller by slackening off the adjustment screws. (see figs 11 & 12) (see page 10) Insert the workpiece between the upper and lower rollers and close up the gap between the rollers using the adjusting screws, (fig 3), until there is a very slight clearance between the workpiece and the rollers.
- Page 10 Operating Instructions... A X M I N S T E R W H I T E Fig 8 Guide block KEEP HANDS AWAY FROM DIE PRESS! Bending Illustrations This part of the die Fig 9 Fig 9a has been removed Hex bolt Bolt Hex screw...
- Page 11 Operating Instructions... A X M I N S T E R W H I T E Rolling Illustrations Rear roller KEEP HANDS AWAY Fig 11 Fig 12 FROM ROLLERS! Roller cover adjustment Lower roller adjustment screw, one each end of knobs casting Fig 13...
-
Page 12: Adjustments To The Sheet Metal Worker
Adjustments to the Sheet Metal Worker... A X M I N S T E R W H I T E Shear bow Over a period of time the frame which carries the lower shear blade may go out of alignment, resulting in shear cuts which are not straight. To correct this problem, the bolt attached to the adjusting bar should be adjusted;... -
Page 13: Maintenance
Maintenance... A X M I N S T E R W H I T E • Grease the cranking arms using the grease nipples positioned on the tops of the arm (see figs 18 & 18a). • Lightly grease the gears shown in fig 18b. Fig 18 Fig 18b Fig 18a... -
Page 14: Parts List
Parts List... A X M I N S T E R W H I T E www.axminster.co.uk... -
Page 15: Parts Breakdown
Parts Breakdown... A X M I N S T E R W H I T E 0800 371822 FREEPHONE... - Page 16 Axminster Reference No: SSBP (900118) Axminster Reference No: RTC7030 (810165) A X M I N S T E R W H I T E Axminster Devon EX13 5PH UK FREEPHONE 0800 371822 www.axminster.co.uk...
