Mocka Essentials Entertainment Unit
Assembly Instructions
3
5
4

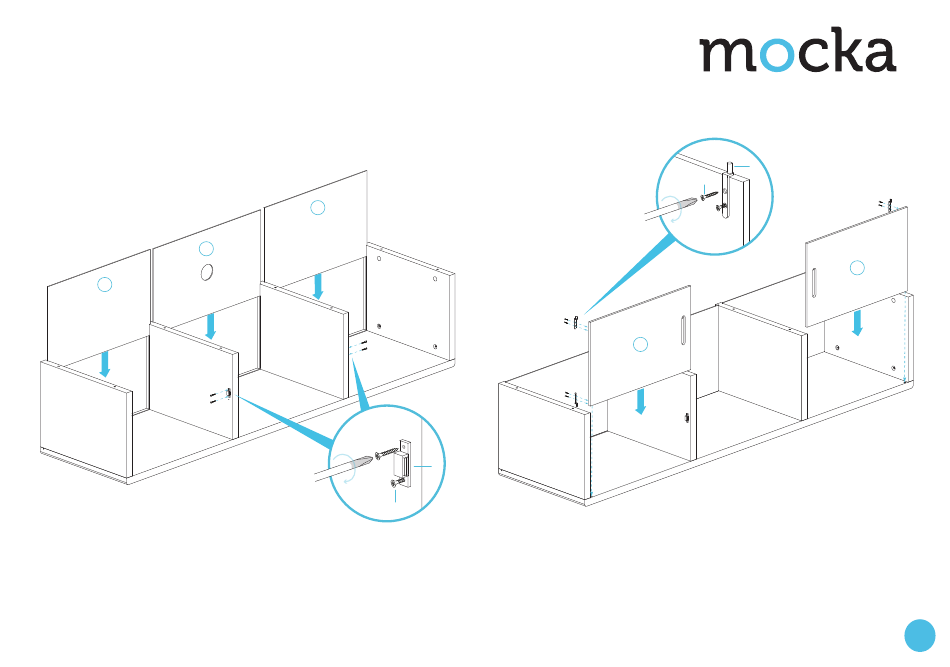

Slide in rear back panels [4 & 5] between vertical panels as shown.
Screw in the two magnetic clips (I) into holes in the central panels using
screws (G).
mocka.co.nz | mocka.com.au
4
I
G
x2
4
F
7
F
Mount door hinge pins (F) to cupboard doors [7]. Place doors into
position as shown, aligning hinge pins with holes in the top panel.
F
H
x4
7
F
3
