Mocka Essentials Entertainment Unit
Assembly Instructions
5
A
A
A

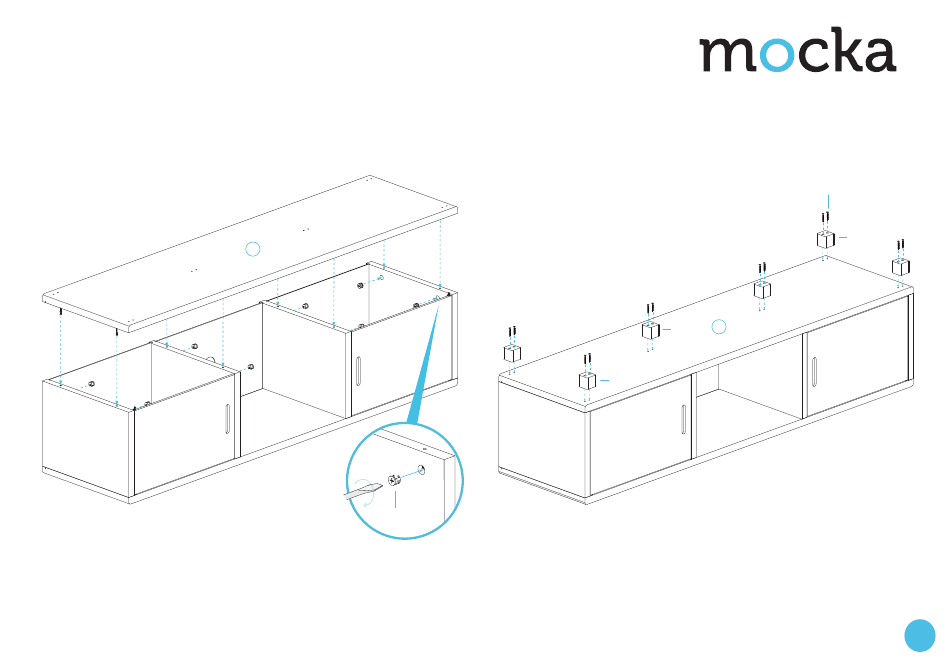

Place base panel [3] with hardware (B) already attached into holes on
top of vertical panels. Insert 8x hardware (A) into remaining holes in all
verticals panels [1 & 2] and tighten with screwdriver.
mocka.co.nz | mocka.com.au
3
A
A
A
A
A
A
6
D
x8
Attach all feet (D) to the base panel [3] using 2x screws (C) in each.
Ensure all screws are tightened with a screwdriver.
C
D
3
D
4
